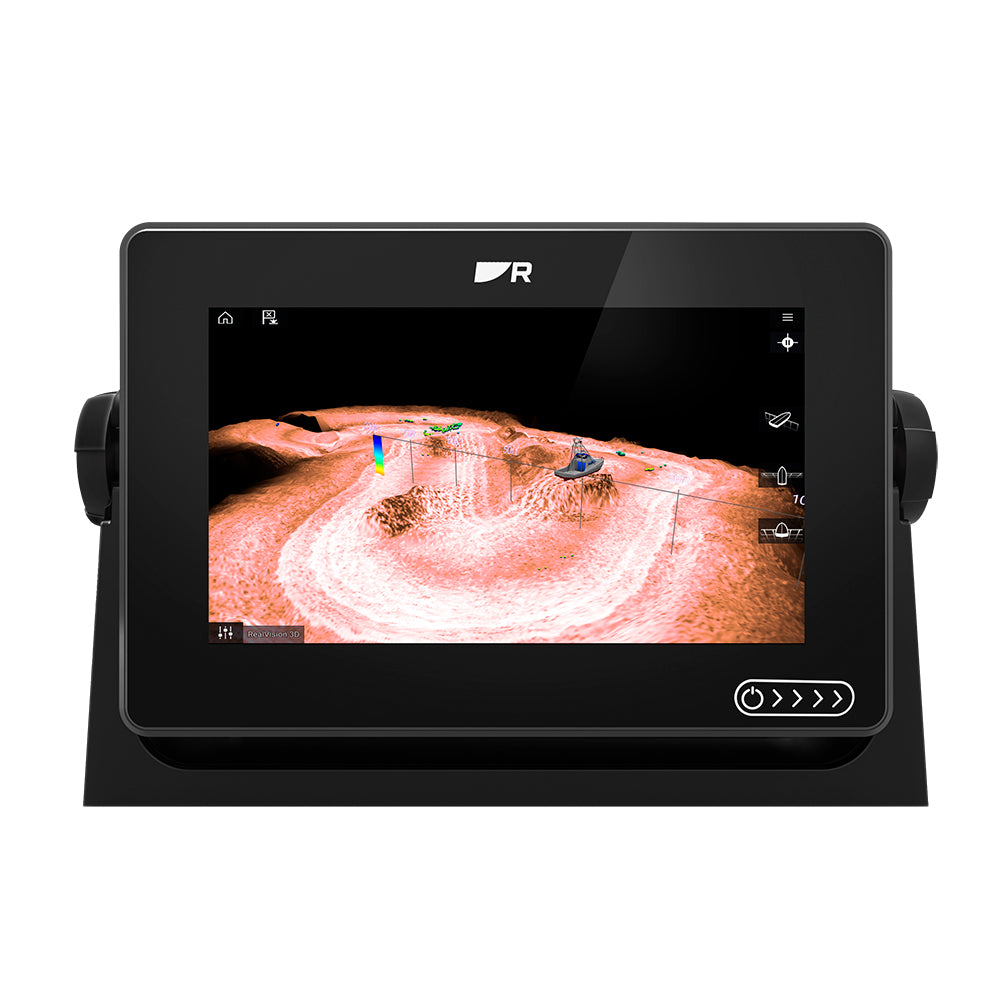

Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder w/RV-100 Transom Mount Transducer & Navionics+ Chart
Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder w/RV-100 Transom Mount Transducer & Navionics+ Chart — Product description
Discover the ultimate blend of power, clarity, and innovation with the Raymarine Axiom+ 7 RV, a compact 7-inch chartplotter and fishfinder designed to elevate your time on the water. Whether you're chasing trophy fish in shallow bays or navigating coastal waters, this all-in-one system combines stunning RealVision 3D sonar, precise Navionics+ charts for USA and Coastal Canada, and the included RV-100 transom-mount transducer to deliver fish-finding precision like never before. Anglers and boaters rave about its responsive touchscreen interface and lifelike underwater views that make spotting structure and baitfish effortless.
Superior Display and Lightning-Fast Performance
The heart of the Axiom+ 7 RV is its upgraded IPS touchscreen display, measuring 7 inches with a crisp WSVGA resolution of 1024 x 600 pixels. Enjoy 25% brighter visuals compared to previous models, ensuring sharp charts, sonar images, and video feeds even under direct sunlight. The HydroTough nano-coated glass repels water, oil, and fingerprints, keeping touches accurate during choppy conditions.
Powered by a quad-core processor, this unit redraws Navionics+ charts fluidly and handles multitasking with ease—switch between sonar modes, overlay radar returns, or run ClearCruise augmented reality overlays without lag. LightHouse 3 OS offers intuitive day, dusk, and night themes, customizable dashboards, and seamless personalization for your boating style.
Revolutionary RealVision 3D Sonar and Multi-Channel CHIRP
Transform how you see underwater with built-in 4-channel sonar support: RealVision 3D, CHIRP SideVision, DownVision, high-frequency CHIRP, and even 600W traditional sonar at 50/200 kHz (with optional adapter). RealVision 3D creates gyro-stabilized, GPS-locked 3D models of the bottom and water column, giving photorealistic images of fish hanging near structure or schools milling in the current.
- CHIRP SideVision: Scans up to 300 feet to each side, revealing submerged trees, drop-offs, and bait pods beyond your cast.
- DownVision: Ultra-clear bottom detail for pinpointing wrecks, rocks, and ledges.
- High-Frequency CHIRP: Targets individual fish with wide-spectrum frequencies for unmatched separation.
Paired perfectly with the RV-100 transducer, which features an integrated AHRS for motion stabilization—eliminating image distortion from waves or turns. Its fast-response temp sensor tracks water conditions in real-time, helping you dial in lure choices.
Effortless Navigation with Built-In GPS and Premium Charts
A 10 Hz GPS/GNSS receiver with four times the sensitivity locks onto satellites quickly for pinpoint positioning, even in challenging areas. Preloaded Navionics+ charts cover intricate coastal details, bathymetry, and points of interest, with support for auto-guiding routes and community edits. Create custom waypoints, plan multi-leg trips, or sync data via Wi-Fi to your tablet using compatible apps.
Expandable Ecosystem for Serious Boaters
This isn't just a fishfinder—it's a command center. Network via RayNet Ethernet and NMEA 2000 with additional Axiom displays, Quantum CHIRP radar for short- and long-range target separation, FLIR thermal cameras for night ops, IP cameras, engine monitors, or audio systems. Control it all from one screen, and stay connected with built-in Wi-Fi for remote access.
Rugged IPX6/IPX7 waterproofing and compact dimensions (7.92" W x 5.24" H x 3" D) fit easily on consoles, with included surface and trunnion mounts for flexible installs.
RV-100 Transducer: Built Tough for Real-World Fishing
The included RV-100 is a game-changer for outboard boats. This all-in-one transom-mount unit combines all sonar channels in a low-profile design with a stainless kick-up bracket that protects against impacts from logs or rocks. Easily swap to jack-plate or step-mount brackets for bass boats or flats skiffs. Its 26-foot cable simplifies routing, and marine-grade construction ensures years of reliable performance.
Why Boaters Choose Axiom+ 7 RV
From weekend warriors to tournament pros, users love how it simplifies complex sonar data into actionable insights. Spot fish-holding humps missed by 2D sonar, navigate safely with overlaid AR radar, and multitask without compromise. Backed by Raymarine's reputation for marine-grade reliability, it's the smart upgrade for smaller vessels seeking big-league tech.
Frequently Asked Questions
What makes RealVision 3D sonar different from traditional fishfinders?
RealVision 3D provides a lifelike, stabilized 3D view of the underwater world, combining side, down, and forward scans into an intuitive bathymetric model. Unlike flat 2D images, it helps you interpret structure and fish positions spatially for better targeting.
Is the RV-100 transducer suitable for all boat types?
Yes, it's optimized for outboards with transom mounting, but optional brackets allow jack-plate or hull-step installs, making it versatile for bass boats, bay vessels, and more.
Can I add radar or cameras to the Axiom+ 7 RV?
Absolutely—RayNet and NMEA 2000 compatibility lets you expand with Quantum radar, FLIR thermal imaging, IP cameras, and instruments for a full-bridge setup.
How does the display perform in bright sunlight?
The IPS panel is 25% brighter with up to 1800 nits, wide viewing angles, and anti-glare coating, ensuring readability on sunny decks. Night modes reduce eye strain after dark.
Does it support wireless charting updates?
Built-in Wi-Fi enables wireless chart downloads, waypoint syncing, and remote control from smartphones or tablets via compatible apps.
What's the power output and frequency range?
It delivers 600W RMS with wide-spectrum CHIRP across high frequencies for fish targeting, plus DownVision and SideVision for structure scanning.
Axiom®+ RV is a new generation of Axiom chartplotters with RealVisionTM 3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game. A quad-core processor delivers responsive performance and gives you the power to expand Axiom+ RV with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.
Raymarine 7063503NAG Attributes
- Maps: Navionics+ USA And Coastal Canada Charts
- Display Size: 7 Inch
- Display Type: WSVGA 1024 x 600 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: Chirp Sonar
Raymarine 7063503NAG Features & Benefits
- High Frequency CHIRP Sonar For Targeting Fish And Determining Bottom Density
- CHIRP DownVision Sonar For High Definition Views Of Structure, Fish Habitat And Man-Made Objects
- CHIRP SideVision For Scanning Beyond Casting Distance To See Fish, Structure And Submerged Objects Out To The Sides Of The Boat
- RealVision 3D Sonar Which Provides A Gyro-Stabilized, GPS-Locked Bathymetric Model Of The Bottom And Water Column
- Built-In 600 Watt Digital Sonar At 50 Kilohertz And 200 Kilohertz Add An Optional Adapter Cable And AIRMAR Transducer To Your Axiom+ RV System
- Upgraded IPS Display Technology Delivers Charts, Sonar, Radar, And Video In Stunning Color
- Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
- Fast And Fluid Chart Redraw Of LightHouse, Navionics And C-MAP Electronics Charts
- Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps
- Limited 2 Year Warranty
Raymarine 7063503NAG Installation Instructions
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
Raymarine 7063503NAG Warranties
Raymarine 7063503NAG Technical Bulletins
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87298-3-EN.pdf
Axiom+ 7 RV - 7" Chartplotter/Fishfinder with RV-100 Transom Mount & Navionics+ Chart
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
- Designed for speed, responsiveness, and future expansion
- Powerful quad-core processor, plus increased onboard storage for personal data and apps
- Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions
- Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
- HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 7 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
RV-100 - RealVision 3D™ All-In-One Transom Mount Transducer
Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately).
What’s in the Box?
- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Installation instructions
Raymarine Axiom + 7RV 7-inch multifunction display with RealVision sonar-sensorless, with Navionics North America Nav + chart, with RV100 sensor Model: E70635-03-NAG...
SKU: NVN-85042
MPN: E70635-03-NAG
UPC: 723193837986
