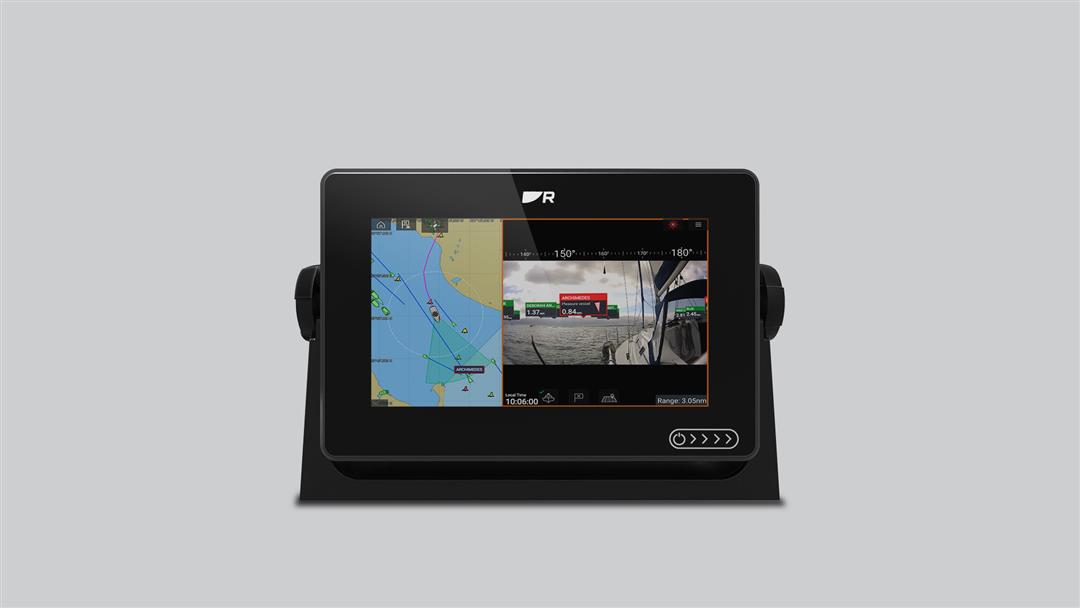

Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder w/Lighthouse North America Chart
Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder w/Lighthouse North America Chart — Product description
Imagine heading out on the water with a compact powerhouse that combines crystal-clear navigation charts and lifelike sonar views right at your fingertips. The Raymarine Axiom+ 7 RV transforms your boating experience, whether you're chasing trophy fish in shallow bays or plotting a safe course through busy coastal waters. Its built-in RealVision 3D sonar paints a three-dimensional picture of the underwater world, helping you spot structure and schools of fish like never before—all on a vibrant 7-inch touchscreen that's built to handle the harshest marine conditions.
Blazing-Fast Performance for Seamless On-Water Decisions
At the heart of this chartplotter fishfinder lies a quad-core processor that delivers silky-smooth operation. Charts redraw instantly as you zoom or pan across intricate Lighthouse North America details, from coastal inlets to inland lakes. Augmented reality overlays via ClearCruise make navigation intuitive, superimposing digital waypoints and hazards over live camera feeds for safer piloting in low visibility.
- Fluid rendering of high-detail charts, including vector and raster formats for precise positioning.
- 10 Hz GPS/GNSS receiver locks onto satellites four times faster than standard units, ensuring pinpoint accuracy even in challenging environments like urban harbors or tree-lined rivers.
- 16 GB internal storage plus microSD expansion lets you save routes, waypoints (up to 10,000), and tracks without running out of space on multi-day trips.
RealVision 3D and CHIRP Sonar: See Beneath the Surface Like a Pro
Fishermen swear by the Axiom+ 7 RV's integrated sonar suite. High-frequency CHIRP scans deliver exceptional target separation, distinguishing baitfish from keepers at depths up to 900 feet. Switch to DownVision for hyper-detailed bottom contours or SideVision to scout structure far beyond your cast—perfect for trolling or jigging in uncharted spots.
RealVision 3D takes it further, creating gyro-stabilized, GPS-mapped 3D models of the seabed and water column. It's like having a personal underwater drone, revealing fish-holding ledges, drop-offs, and wrecks in stunning clarity. Wide-spectrum CHIRP transmits across 60 frequencies simultaneously, minimizing dead zones and maximizing fish-finding potential.
- DownVision: 600 ft depth for habitat mapping.
- SideVision: 300 ft side-scan range to cover more ground.
- Compatible transducers via 25-pin connector for easy upgrades.
Pro tip: Pair it with a RealVision-compatible transducer to unlock full 3D potential, and experiment with frequency sweeps to match local water conditions for the sharpest images.
Superior Visibility and Rugged Build for All-Weather Reliability
The IPS display shines at 1,500 nits—bright enough to cut through blazing sun glare—while offering wide 85-degree viewing angles so everyone on deck stays informed. HydroTough nano-coating sheds water, salt, and fingerprints effortlessly, maintaining touch precision even in pounding rain or spray.
- IPX6/IPX7 waterproofing shrugs off heavy seas and submersion.
- LightHouse 3 OS with customizable day, dusk, and night themes reduces eye strain during long nights.
- Compact dimensions (7.92" x 5.24" x 3") fit snugly on consoles, with versatile surface, flush, or trunnion mounting options.
Operating from -25°C to +55°C, it's ready for everything from icy Great Lakes mornings to sweltering Gulf summers.
Expand and Connect: A Hub for Your Boat's Electronics
Don't let its size fool you—this unit networks effortlessly with Raymarine ecosystems. RayNet Ethernet links multiple displays for helm sharing, while NMEA2000 handles engine data, AIS, autopilots, and thermal cameras like FLIR M-Series for night ops.
- Wi-Fi and Bluetooth for app control, waypoint syncing, and marine audio tweaks.
- Quantum radar-ready for clutter-free target detection in fog or rain.
- Supports up to 10 IP cameras for all-around situational awareness.
Ideal for small to mid-size boats, it scales from solo fishing skiffs to family cruisers, integrating instruments without cluttering your dash.
Getting Started: Setup and Maintenance Essentials
Installation is straightforward with included trunnion bracket, power/NMEA2000 cable, and SeaTalkNG adapter. Surface-mount for quick setups or flush for sleek looks—secure with M5 hardware for vibration resistance. Power draw stays low at under 10 watts, sipping from 12V systems.
Keep it performing like new: Wipe the HydroTough screen with a microfiber cloth and marine-safe cleaner. Update firmware via Wi-Fi for new features, and back up waypoints to microSD regularly. For sonar optimization, calibrate in calm water and adjust gain for your boat's hull type.
Frequently Asked Questions
What types of sonar does the Raymarine Axiom+ 7 RV support?
Is the display touchscreen and waterproof?
What charts come preloaded, and can I use others?
Can I network this unit with other devices?
What's the power requirement and mounting flexibility?
Is it suitable for freshwater and saltwater use?
How does the GPS performance compare to others?
The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.
Raymarine 7063500102 Attributes
- Maps: LightHouse North America Chart
- Display Size: 7 Inch
- Display Type: WSVGA 1024 x 600 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: Built-In CHIRP
Raymarine 7063500102 Features & Benefits
- High Frequency CHIRP Sonar For Targeting Fish And Determining Bottom Density
- CHIRP DownVision Sonar For High Definition Views Of Structure, Fish Habitat And Man-Made Objects
- CHIRP SideVision For Scanning Beyond Casting Distance To See Fish, Structure And Submerged Objects Out To The Sides Of The Boat
- RealVision 3D Sonar Which Provides A Gyro-Stabilized, GPS-Locked Bathymetric Model Of The Bottom And Water Column
- Upgraded IPS Display Technology Delivers Charts, Sonar, Radar And Video In Stunning Color And Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
- Smart And Intuitive LightHouse OS Makes Navigating Easy
- Axiom+ Features HydroTough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil And Smudges
- All-Weather HydroTough Technology Delivers Improved Color And Contrast And Accurate Touch Controls - Even When Wet
- Features LightHouse North America Chart
- Limited 2 Year Warranty
Raymarine 7063500102 Installation Instructions
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
Raymarine 7063500102 Warranties
Raymarine 7063500102 Technical Bulletins
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
- Axiom MFD Installation instructions 87298-3-EN.pdf
Axiom+ 7 RV - 7" Chartplotter/Fishfinder with Lighthouse North America Chart
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
- Designed for speed, responsiveness, and future expansion
- Powerful quad-core processor, plus increased onboard storage for personal data and apps
- Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions
- Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
- HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 7 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions and Lighthouse North America Chart.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
Axiom + 7 RV-7 inch North American chart plotter/fishfinder with lighthouse The adjusted performance of Axiom®Plus is the generation of the award-winning Raymarine multifunction display. Optimized for speed, Axiom Plus is equipped with...
SKU: NVN-85039
MPN: E70635-00-102
UPC: 723193837948
