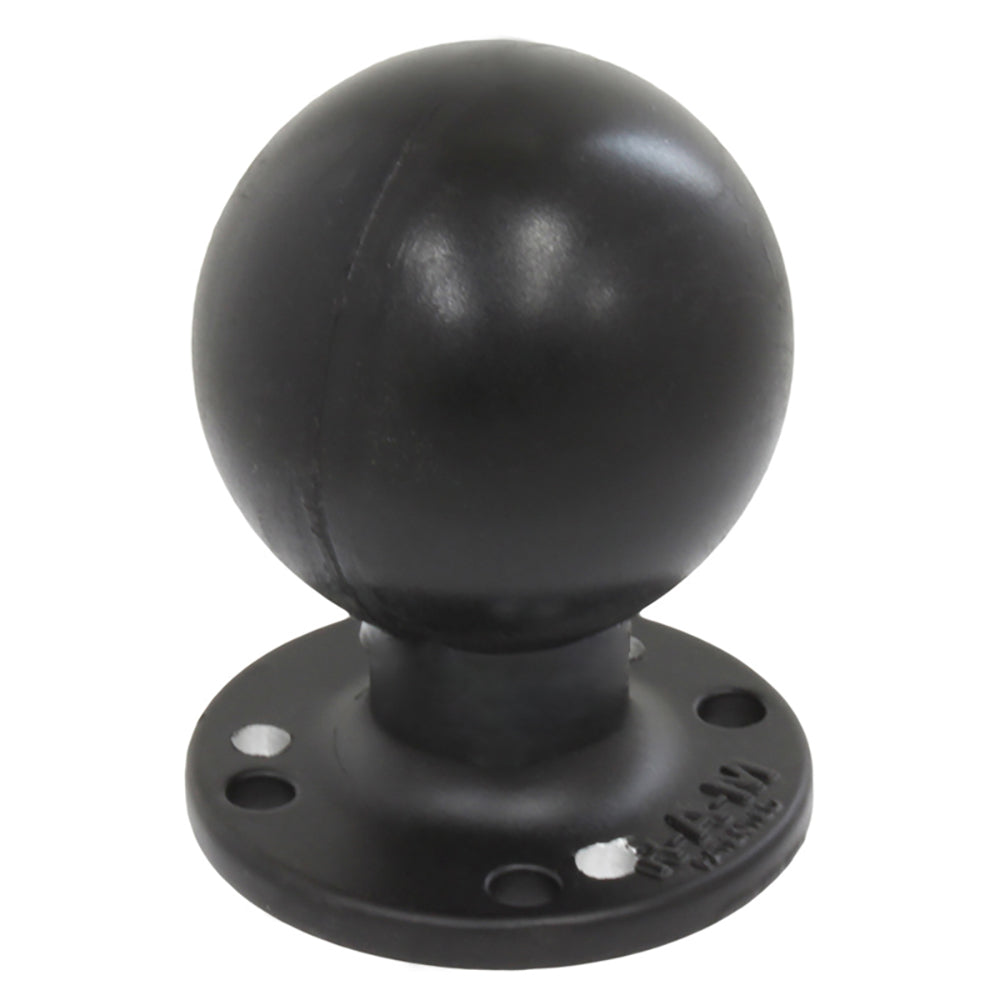

RAM Mount RAM® Round Plate w/Ball - 2.25" - D Size Ball - Hole Plate

RAM® Round Plate with Ball - 2.25" - D Size Ball - Hole Plate

The RAM-D-254-WD1U consists of a 2.25" diameter rubber ball, connected to a 2.5" diameter plate containing 7 holes total: the industry standard 4-hole AMPS hole pattern and a 3-hole 120-degree hole pattern. This component can drill down to any flat surface or connect to any RAM® holder or cradle. The D Size ball is compatible with any other RAM® D Size ball & socket components.

Hole Pattern:

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter

Features:

• Plate Size: 2.5" Diameter
• Ball/Socket Size: D Size (2.25")
• Materials: Marine-grade aluminum

RAM-D-254-WD1U consists of a rubber ball with a diameter of 2.25 inches, attached to a board with a diameter of 2.5 inches. The board has a total of 7 holes: the industry standard 4-hole AMPS hole pattern and 3 holes.
SKU: NVN-84313
MPN: RAM-D-254-WD1U
UPC: 793442225413
