RAM Mounting Systems
RAM Mount Motorcycle Brake/Clutch Reservoir Base w/2 1" Balls
SKU: 45521 · UPC: 793442130922 · MPN: RAM-B-309-2U
★★★★★
4.7 · 0 reviews
Authorized dealer10% off
$28.49
$31.99Save $3.50
or 4 payments of $7.12 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$28.49
02 · Overview
RAM Mount Motorcycle Brake/Clutch Reservoir Base w/2 1" Balls — Product description

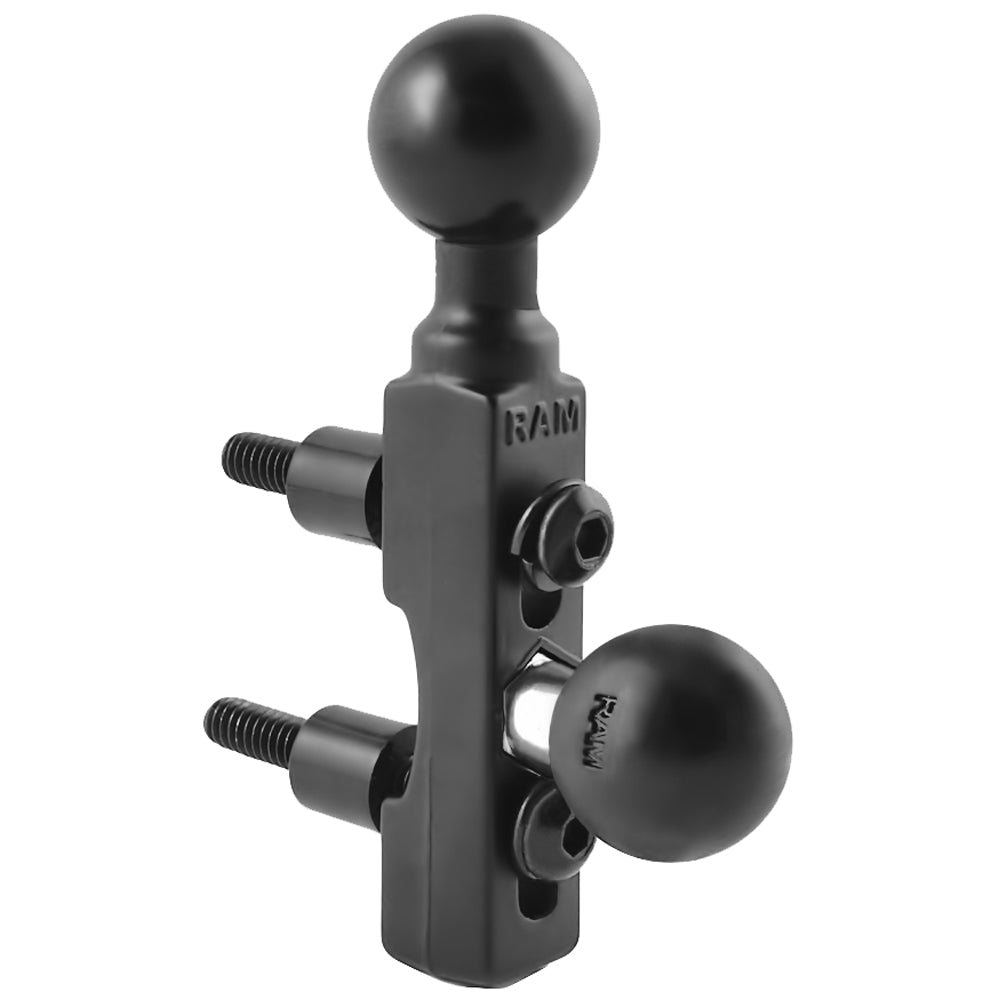

RAM Motorcycle Brake/Clutch Reservoir Base with (2 Quantity) 1" Balls
The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, and holds two 1" diameter mounting ball. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-2U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
The "U" in the part number reflects product packaged in poly bag.
The ball connected between the center of the hole is movable. The base uses 40mm x 6mm stainless steel hardware to fix the motorcycle's control clip on your motorcycle,...
SKU: NVN-45521
MPN: RAM-B-309-2U
UPC: 793442130922
The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, and holds two 1" diameter mounting ball. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-2U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
The "U" in the part number reflects product packaged in poly bag.
The ball connected between the center of the hole is movable. The base uses 40mm x 6mm stainless steel hardware to fix the motorcycle's control clip on your motorcycle,...
SKU: NVN-45521
MPN: RAM-B-309-2U
UPC: 793442130922
03 · The numbers
Technical specifications
| Brand | RAM Mounting Systems |
| Model | RAM Mount Motorcycle Brake/Clutch Reservoir Base w/2 1" Balls |
| SKU / MFR# | 45521 |
Set product metafields under specs.* to populate this table.
