RAM Mount 1.5" Double Ball Mount with Hardware for Garmin Striker + More

1.5" Double Ball Mount with Hardware for Garmin Striker + More

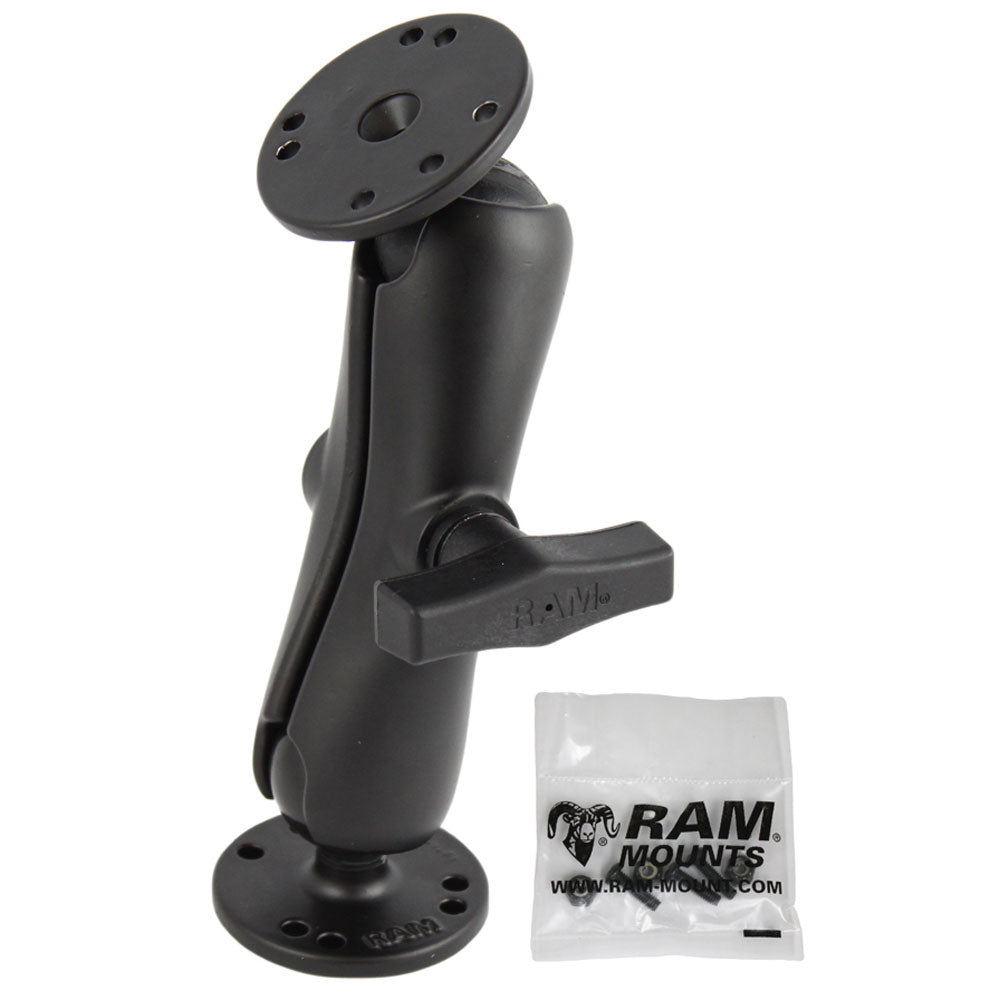

The RAM-101-G4 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the back of the Garmin echo. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo to the RAM Mount.

This mount is compatible with the following Garmin devices:

• Striker 4
• Striker 4dv
• Striker Plus 4cv
• echo 100
• echo 150
• echo 300c
• ECHOMAP Plus 42cv
• ECHOMAP Plus 43cv
• ECHOMAP Plus 44cv
• ECHOMAP Plus 45cv

Ball Size:

1.5" Rubber Ball Size

Material:

Powder Coated Marine Grade Aluminum

Product Dimensions

Overall Height: 5"

Socket-To-Socket Length

3"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Note:

Part number reflects product packaged in clear clam shell for store shelf display.

RAM-101-G4 consists of a dual-slot arm, a circular base with a diameter of 2.5 inches and a circular adapter base. The circular base has a universal AMPS hole pattern. The circular adapter base is directly connected to the back of the base. .
SKU: NVN-45430
MPN: RAM-101-G4
UPC: 793442933172
