RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base

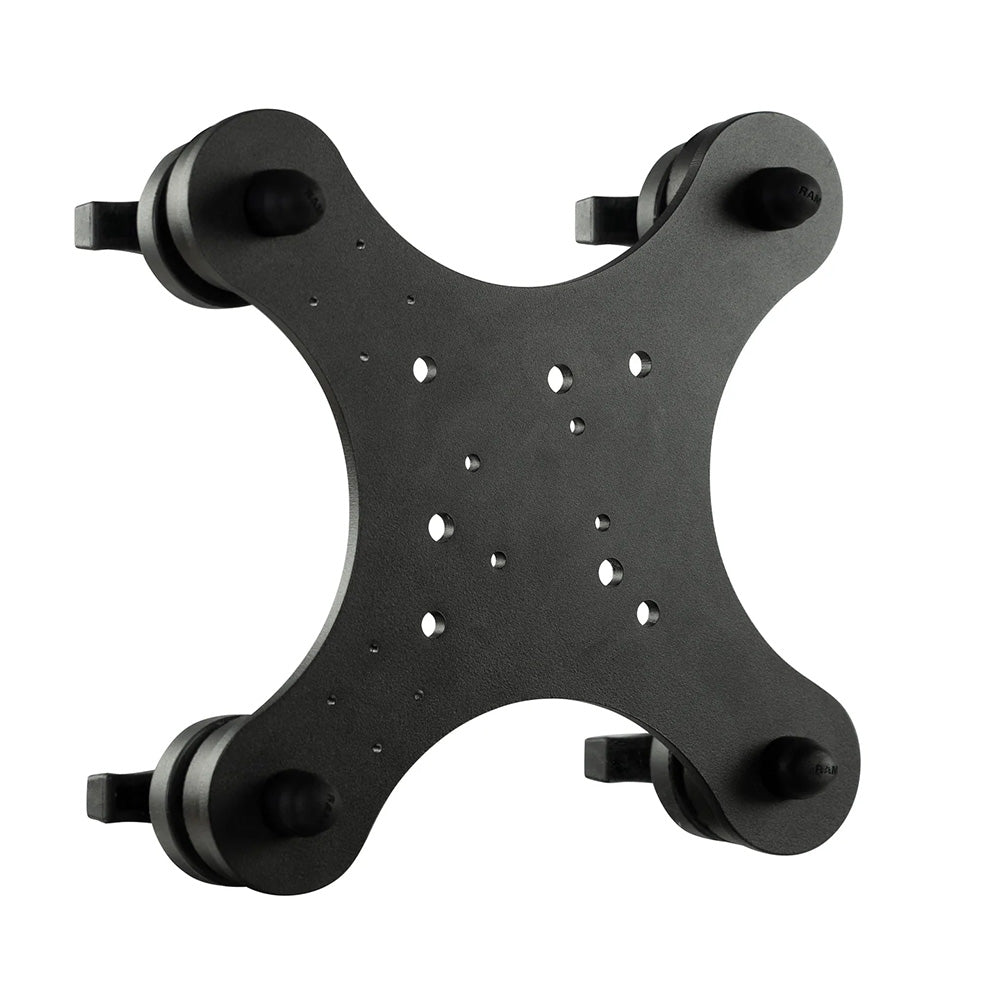

The RAM® Tough-Mag™ Magnetic Window Mount (RAM-MAG48-4U) consists of a steel plate with four magnetic ends and four 48mm external magnets for mounting on a window, or any other flat glass surface. The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D-size drill-down ball base. The base is designed with rubber-coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.
Features:
- Four-point steel plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness
- 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
- External magnets include handles for ease of installation
- Backed by a lifetime warranty
Specifications:
- Hardware Included: Assembly Hardware(8) #4-40 x 1/4" Machine Screws(4) #10-24 x 3/4" Machine Screws(4) #10-24 Nylock Nuts(4) Rubber Caps
- Product Dimensions: Overall Length: 8.99"Overall Width: 8.99"Overall Thickness (inside surface): 1.64"
- Hole Pattern: 4-Hole AMPS: 1.181" x 1.496", 75 x 75mm VESA
- Packaging Type: Poly Bag
- Weight: 4.65 lbs
SKU: NVN-104795
MPN: RAM-MAG48-4U
UPC: 793442921261
