RAM Mount Drill-Down Dashboard Mount w/Backing Plate - C Size Short

Drill-Down Dashboard Mount with Backing Plate - C Size Short

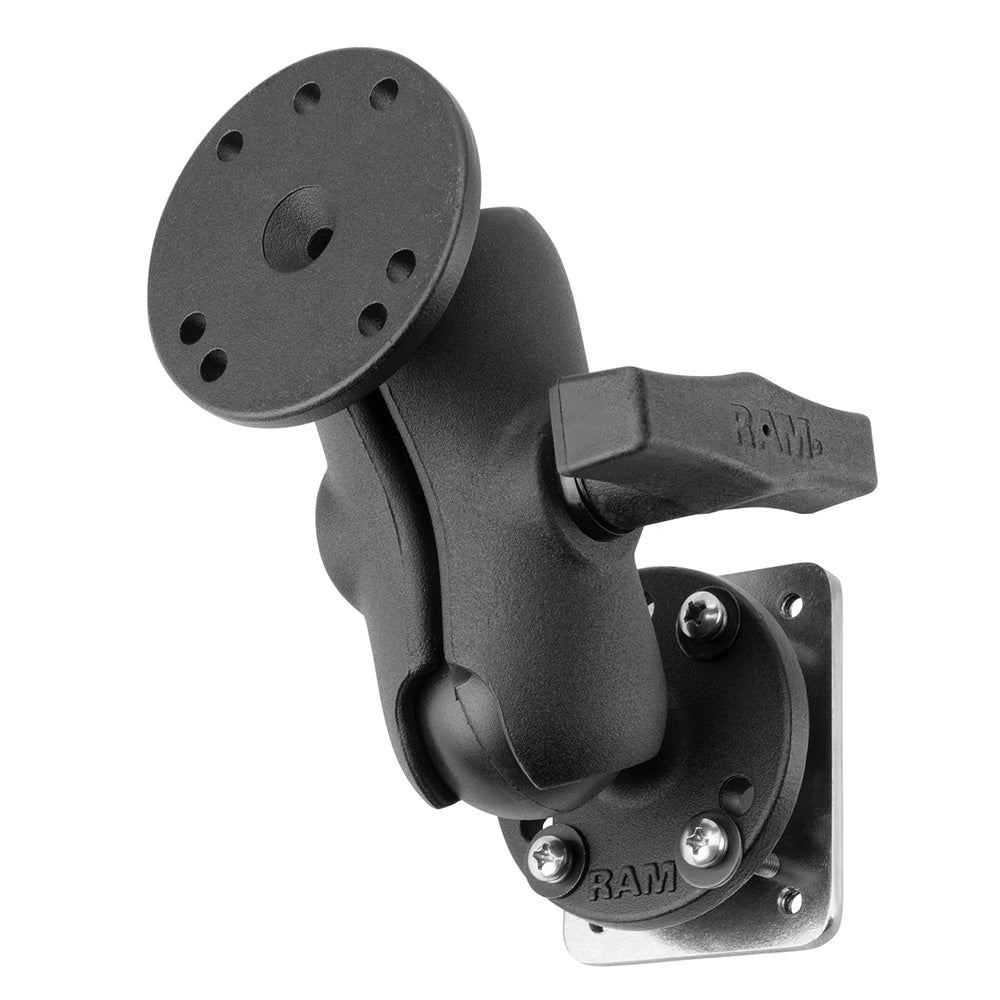

Meet the new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. This mount consists of a C-size short-length double socket arm, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10 x 2.60 in. steel backing plate (hardware included). RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling the perfect viewing and operating angle of your device.

Features:

• Drill-down double ball mount with a 2.10 x 2.60 in. steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
• Includes a C-size 1.5" RAM® rubber ball and a short double socket arm; ball and socket technology allows for near-infinite adjustability
• Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hardware Included: (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Machine Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Product Dimensions (inch): Overall Height: 5.225"
• Socket to Socket Length (inch): 2.5”
• Hole Pattern: Round Plate:, 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
• Ball Size (inch): C size (1.5”)
• Weight Capacity: The standard use is 4 lbs. and the heavy-duty use is 3 lbs.
• Materials: Marine-grade aluminum and steel
• Weight: 1.16 lb.

SKU: NVN-100239
MPN: RAM-101-B-225B2U
