RAM Mount RAM® Double U-Bolt Rail Mount f/Larger Rails

RAM® Double U-Bolt Rail Mount for Larger Rails

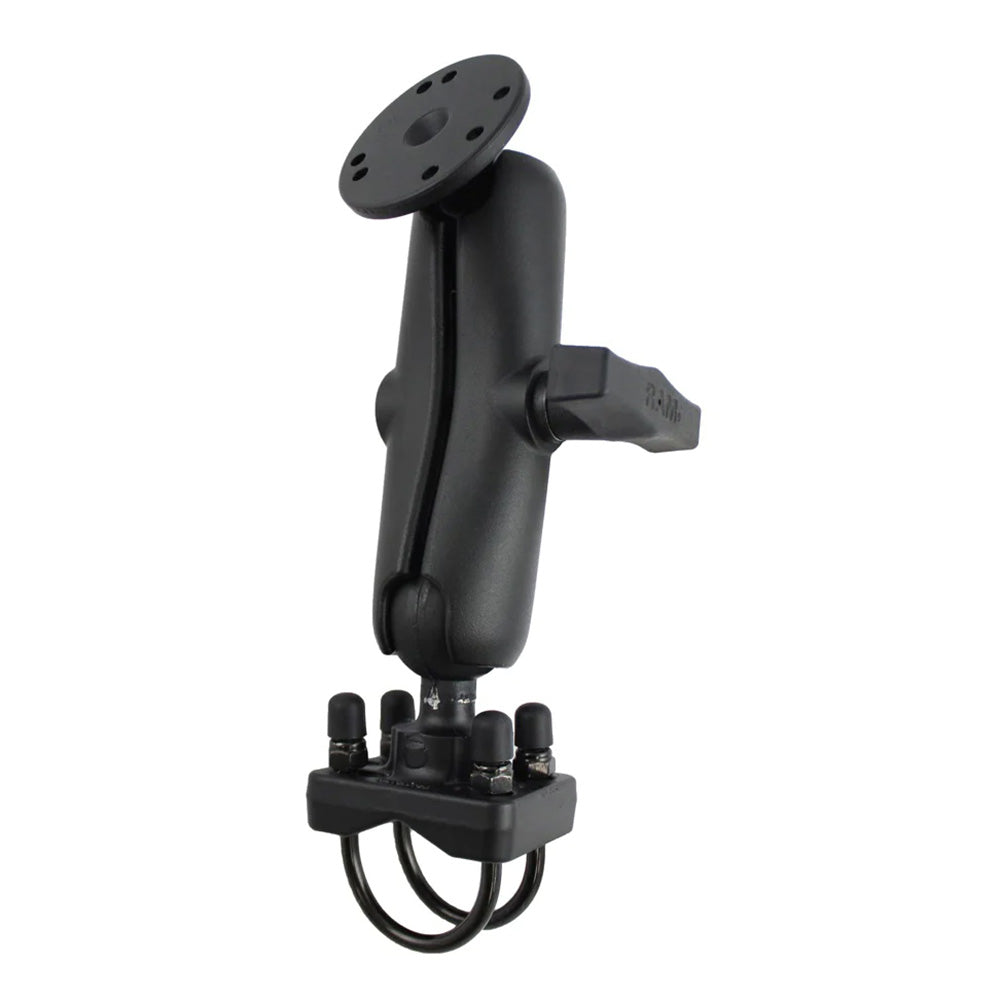

The RAM-101U-235-1 consists of a 6-inch double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1.25" to 1.5" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allow for almost infinite adjustment and perfect viewing angles.

Features:

• 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
• Includes double U-bolt base that accommodates rails from 1.25" to 1.5" in diameter and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Hardware Included:

• (2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
• (4) 1/4"-20 Nylock Nuts
• (4) Rubber Caps

Specifications:

• Clamp Range: 1.25"-1.5" diameter
• Socket to Socket Length: 4.66"
• Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"/3-Hole 120-Degree: 1.812" Diameter
• Ball Size: C Size (1.5")
• Weight Capacity: Standard Use: 4 lbs/Heavy-Duty Use: 3 lbs
• Materials: Marine-grade aluminum
• Weight: 1.46 lbs

SKU: NVN-97813
MPN: RAM-101U-235-1
UPC:
