Quick Prince DP2 512 Windlass Only - 500W - 12V - 7mm - 1/4" Gypsy - 1/2" Rope

SKU: 93693 · MPN: FSDP20512007A00
4.7 · 0 reviews
Authorized dealer Free shipping43% off
$948.99
$1,670.00Save $721.01
or 4 payments of $237.24 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$948.99
02 · Overview

Quick Prince DP2 512 Windlass Only - 500W - 12V - 7mm - 1/4" Gypsy - 1/2" Rope — Product description

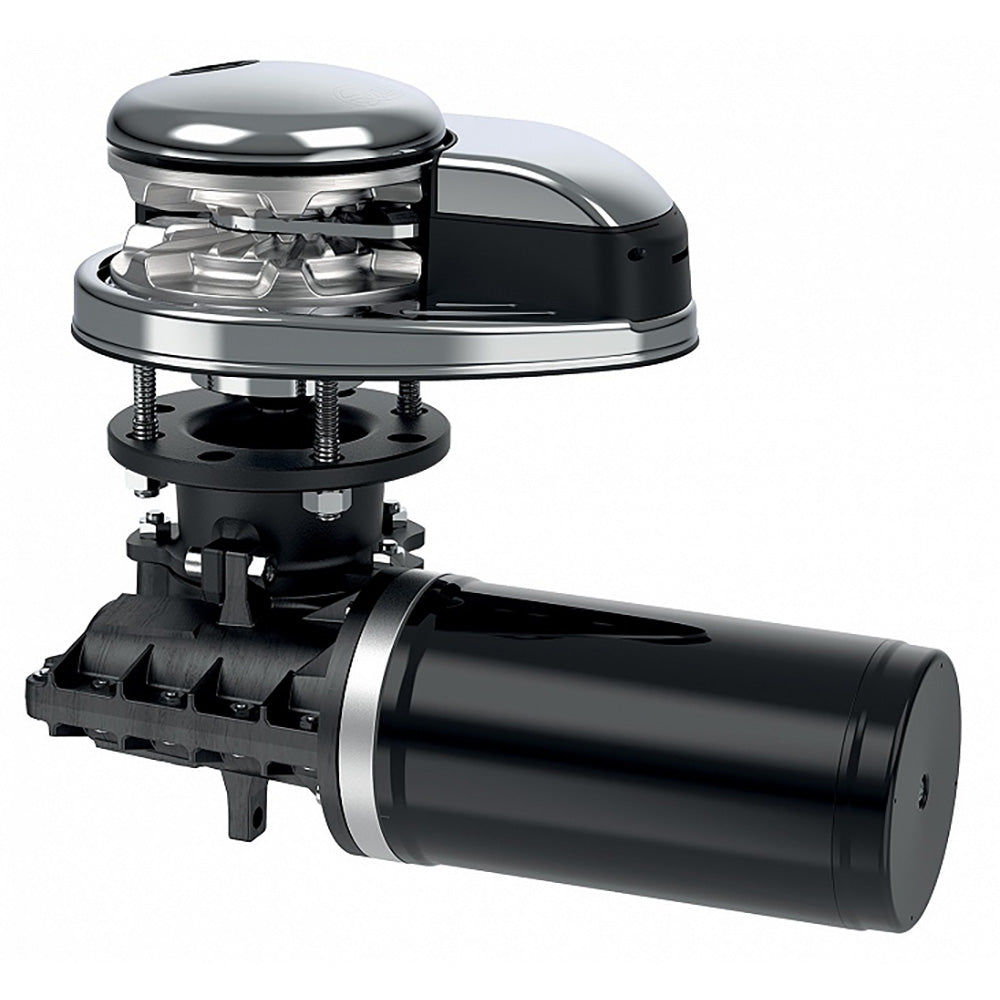

Prince DP2 512 Windlass Only - 500W - 12V - 7mm - 1/4" Gypsy - 1/2" Rope

The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Specifications:

  • Motor Power: 500W
  • Motor Supply Voltage: 12V
  • Max Pull: 1455lbs
  • Max Working Load: 441lbs
  • Working Load: 143lbs
  • Current absorption @ working load (1): 80 Amp
  • Max Chain Speed (2): 95'/min
  • Max chain speed @ working load (2): 78'/min
  • Weight: 24lbs
  • Series: Prince



SKU: NVN-93693
MPN: FSDP20512007A00
UPC:
