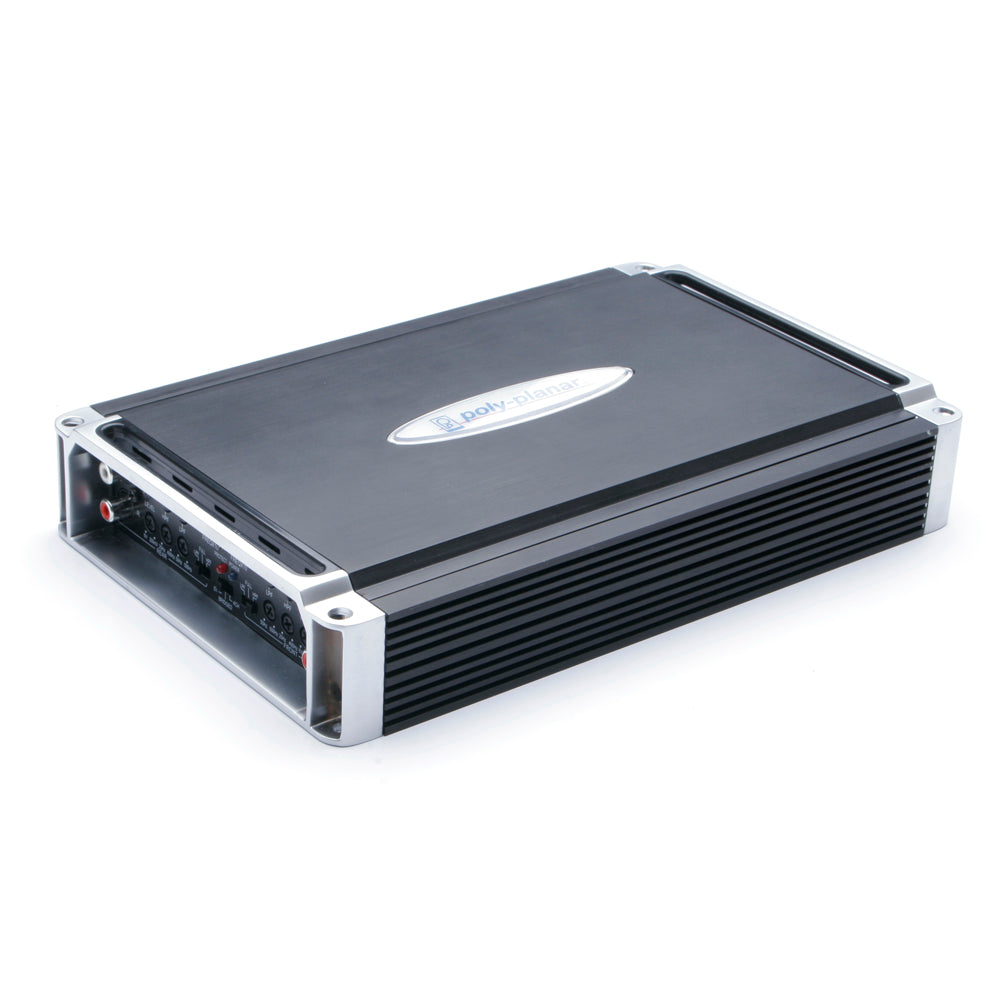

Poly-Planar Class D Power Amplifier

Class D Power Amplifier
Part Number: ME-400D

The ME-400D Class D Power Amplifier provides 500 watts (125W x 4 CH) of crisp, clean audio power. This amplifier can be easily configured to enhance your listening pleasure. Gold plated connections resist corrosion. Efficient heat sink design ensures uninterrupted operation. The ME-400D will be an outstanding addition to your vessel's audio system.

Features

• 4 Channel Class D Power Amp

• 2 ohm stable stereo outputs

• Bridgeable outputs

• Variable input level controls for each pair of channels

• Variable High-pass, Low-pass and All-pass crossover

• Variable Bass Boost circuit

• Thermal and overload protection circuitry

• Gold-plated RCA jacks and terminals

Specifications

• Power Supply Voltage: 11-16 VDC

• Idling Current: 0.8A

• Idling Current when off: <0.001mA

• Output Power (RMS)@14.4V/4ohms: 125W x 4CH

• Output Power (RMS)@14.4V/2ohms: 200W x 4CH

• Output Power (max)@14.4V/4ohms: 250W x 4CH

• Output Power (max)@14.4V/2ohms: 400W x 4CH

• Fuse Rating: 25A x 3

• Dims (LxWxH) inches: 10-7/8" x 6-3/4" x 1-7/8" (275mm x 170mm x 46mm)

  Easily configure to enhance listening pleasure. Features include 4-channel Class D power amplifier (4 x 125) 2 ohm stable stereo output, bridged output, variable bass enhancement...
  SKU: NVN-25585
  MPN: ME400D
  UPC: 731128940601
