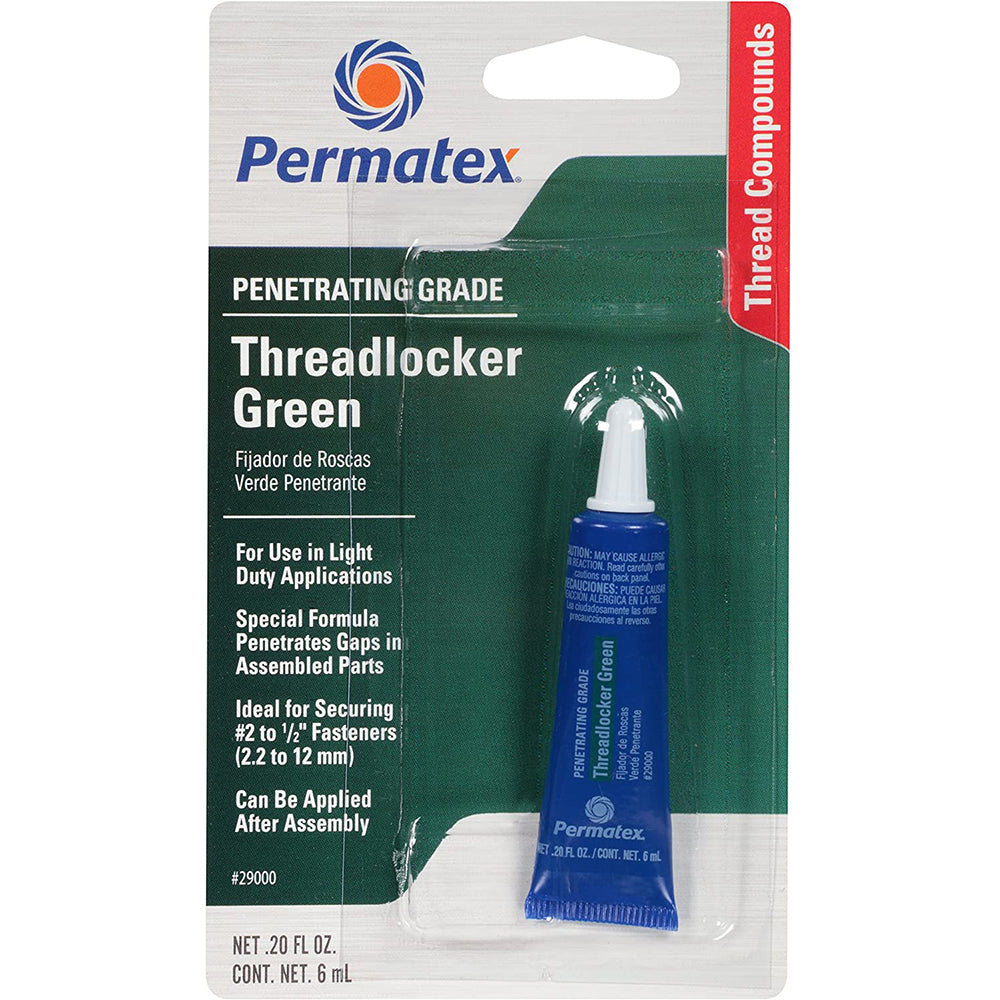

Permatex Penetrating Grade Threadlocker GREEN Tube - 6ml

OEM specified. A low viscosity threadlocking liquid that wicks along the threads of preassembled fasteners to secure them in place. Since it is applied after assembly, preventive maintenance procedures are simplified. Ideal for fasteners ranging from #2 to 1/2 Inch (2.2 to 12 Millimeter) in size. Removable with hand tools. Conforms to ASTM D5363 AN0261 (Mil-S-46163A, Type III, Grade R).

Permatex 29000 Attributes

• Function: Thread Locker And Sealant
• Fastener Type: 2 To 2-1/2 Inch Fasteners
• Strength: Medium Strength
• Disassembly: Disassembly Requires Heat And Hand Tools
• Type: Penetrating
• Color: Green
• Unit Size: 6 Milliliter
• Unit Type: Tube
• Unit Quantity: Single

Permatex 29000 Features & Benefits

• Medium Strength Anaerobic Threadlocking Material That Cures Between Engaged Threads To Form A Unitized Assembly That Resists Virtually All Leakage, Shock And Vibration
• A Single Component, Anaerobic Liquid That Cures When Confined In The Absence Of Air Between Close Fitting Metal Surfaces
• The High Prevailing Torque Provides Vibration Resistance To Adjustment Screws
• Ideal For All Threaded Engagements Less Than Or Equal To 1/2 Inch In Diameter
• Excellent Chemical Resistance With A Temperature Resistance Range Of Minus 175 Degree Celsius To Plus 150 Degree Celsius (Minus 65 Degree Fahrenheit To Plus 300 Degree Fahrenheit)
• Prevents Rusting Of Threads. Seals Porosity. Cures Without Cracking Or Shrinking
• Can Be Adjusted Or Disassembled. No Mixing And No Curing Outside Of Joint
• No Supplier Warranty

Permatex 29000 Technical Bulletins

• 29000 (1).pdf
• 29000.pdf

Penetrating Grade Threadlocker GREEN Tube - 6ml

OEM specified. A low viscosity threadlocking liquid that wicks along the threads of preassembled fasteners to secure them in place. Since it is applied after assembly, preventive maintenance procedures are simplified. Ideal for fasteners ranging from #2 to 1/2″ (2.2 to 12mm) in size. Localized heating and hand tools are needed for disassembly. Conforms to ASTM D5363 AN0261 (Mil-S-46163A, Type III, Grade R).

Applications:

Automobile - Suggested Applications: Bolts on alternators, air conditioning belts and distributor clamps, carburetor adjustment screws, and hairline cracks.

Marine - Suggested Applications: Bolts on alternators, distributor clamps, carburetor adjustment screws, hairline or porosity cracks

Directions:

1. Clean and dry parts using Permatex® Surface Prep™ activator.
2. Assemble parts and make adjustments.
3. Apply Threadlocker where thread enters parts. Refer to Technical Data Sheet for complete information.

NOTE: Threadlocker works on metal parts. It is not recommended for plastics. To disassemble parts, weaken cured Threadlocker by heating above 500°F (260°C); then use hand tools to separate components.

Ideal for fasteners with sizes from 2.2 to 12mm (#2 to 1/2"). Local heating and hand tools are required for disassembly. Use in liquid or gel form.
SKU: NVN-84617
MPN: 29000
UPC: 686226290007
