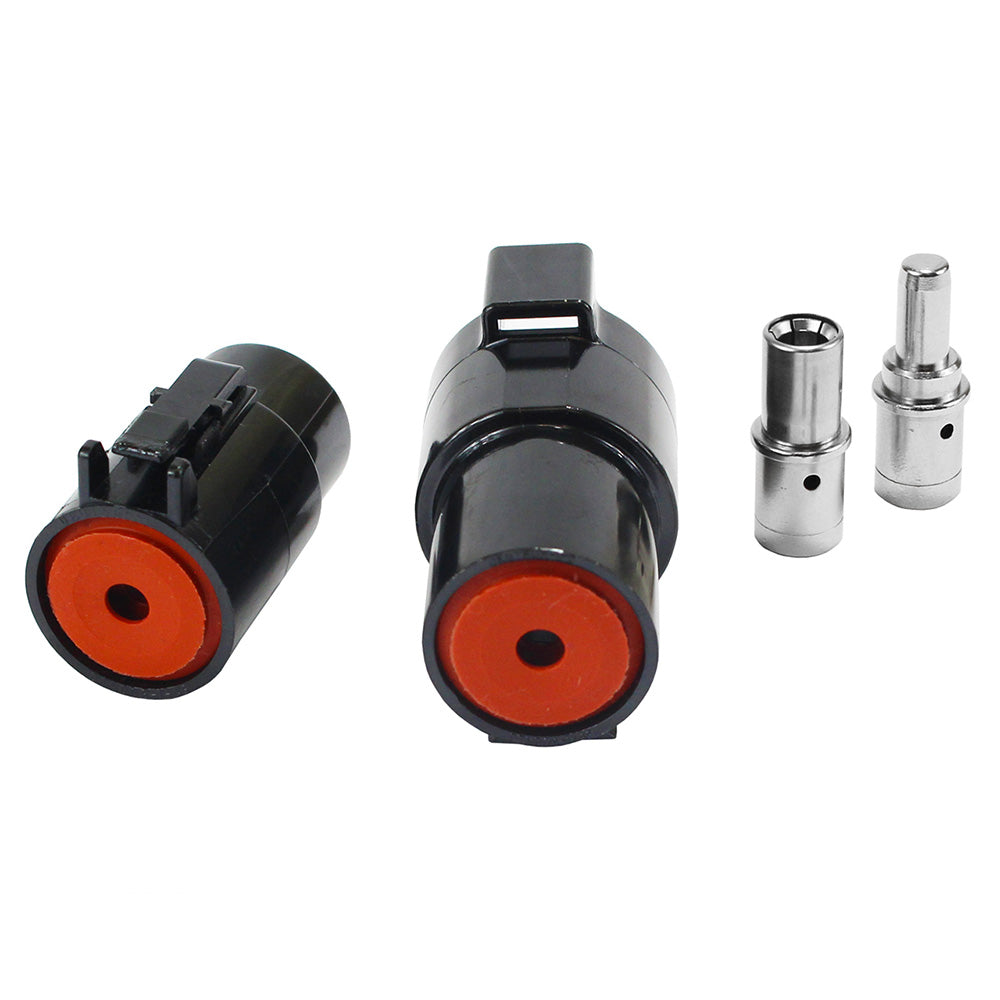

Pacer Deutsch 6 AWG DTHD Power Plug & Receptacle w/Pin & Socket

Deutsch 6 AWG DTHD Power Plug & Receptacle with Pin & Socket

DTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.

Features:

• Environmentally sealed disconnectable power wire splicing
• 60-100 Amps at 125°C
• Easy to install
• Field serviceable

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Redundant Silicone Seals
• Contacts are hand-insertable

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV

Specifications:

• Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG
• Deutsch Series: DTHD
• Wire Range: 6 AWG
• Connector Types: Plugs & Receptacles

SKU: NVN-105015
MPN: TDTHD-1-4KT
UPC:
