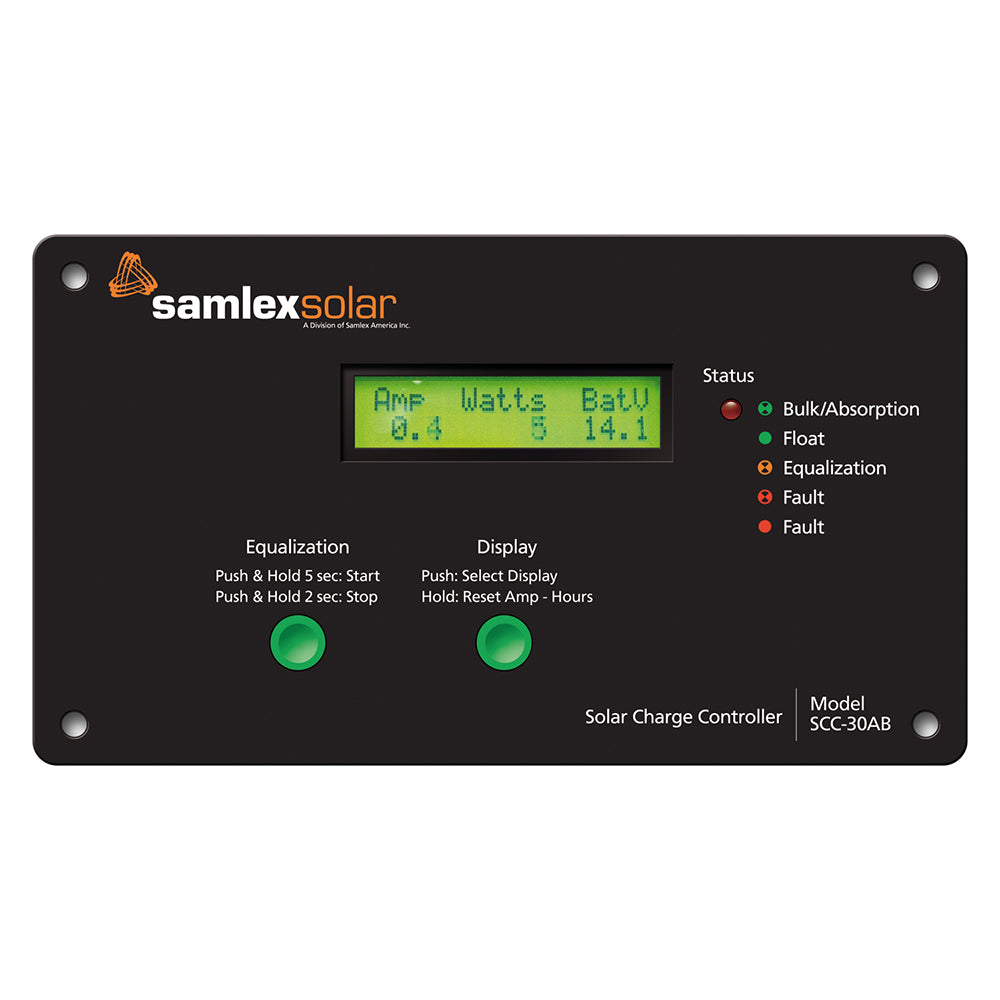

Samlex Flush Mount Solar Charge Controller w/LCD Display - 30A
Samlex Flush Mount Solar Charge Controller w/LCD Display - 30A — Product description
The Samlex 30 Ampere Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional Battery Temperature Sensor.
Samlex America SCC30AB Attributes
- Compatibility: 12 Volt/ 24 Volt DC Lead-Acid Flooded/ AGM/ Gel Cell And NiCad Batteries
- Type: Pulse Width Modulated
- Voltage Rating: 12 Volt To 24 Volt
- Ampere Rating: 30 Ampere
- Display Type: Digital LED Display
- With LED Indicator: Yes
Samlex America SCC30AB Features & Benefits
- Pulse Width Modulated (PWM) Charging – Most Efficient And Effective Way To Charge Batteries
- Comes With 4-Stage Battery Charging: Bulk, Absorption, Float And Manual / Automatic Equalization
- Contains 8 Selectable Battery Charging Profiles For Easy Setup
- Temperature Compensated Charging With Optional Temperature Sensor
- Digital LCD Monitor For Informative Display Of Operational Parameters And Fault Messages
- Limited 5 Year Warranty
Samlex America SCC30AB Installation Instructions
Samlex America SCC30AB Technical Bulletins
Flush Mount Solar Charge Controller w/LCD Display - 30A
The Samlex 30 Amp Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor.
Features:
- Pulse Width Modulated (PWM) charging – most efficient and effective way to charge batteries
- 4-stage battery charging: Bulk, Absorption, Float and manual / automatic Equalization
- 8 selectable battery charging profiles for easy setup
- Temperature compensated charging with optional Temperature Sensor
- Digital LCD Monitor for informative display of operational parameters and fault messages
Specifications:
- Input: 12V / 24V
- Amps: 30 Amp
- Weight: 0.8 (lbs)
- Weight: 0.36 (kg)
- Dimensions: 7.5 x 4.25 x 1.5 (in)
- Dimensions: 19.1 x 10.8 x 3.8 (cm)
- Warranty: 5 Year Limited
Applications:
- Recreation vehicles
- Service vehicles
- Boats
- Field work
- Telecommunications
- Mobile offices
- Construction sites
Can be programmed through the LCD display. Features include 8 charging settings for different battery types, battery equalization options, for 12V or 24V systems-automatic...
SKU: NVN-68821
MPN: SCC-30AB
UPC: 622988088001
Technical specifications
| Brand | Samlex America |
| Model | Samlex Flush Mount Solar Charge Controller w/LCD Display - 30A |
| SKU / MFR# | 68821 |
