Samlex Portable Solar Charging Kit - 135W

Samlex Portable MSK Charging Kits are easy to use. Just unfold, plug in and start charging. Capture the power of the sun without complicated installations, brackets or electrical diagrams. Each Kit comes with a convenient insulated carrying case that also protects the panels when stored.

Samlex America MSK135 Attributes

• Type: Portable Solar Kit
• Power Rating: 135 Watt
• Panel Type: Rigid Solar Panel
• Length (IN): 65 Inch
• Width (IN): 27.36 Inch
• Controller Type: 10 Amp PMW Charge Controller
• Thickness (IN): 3.07 Inch
• Panel Mount Type: Bracket Mount
• With Cables: Yes
• With Remote Control: No
• With Carry Case: Yes

Samlex America MSK135 Features & Benefits

• Solar Panel Is Pre-Wired With Battery Clamps For A Quick And Easy Connection, 16 Feet Cable
• Turn The Panel A Few Times Per Day And Increase Charging By 30 Percent
• Adjustable Legs Allow For Maximum Sun Exposure
• Folding Crystalline Panels In Anodized Aluminum Frames, Prevents From Rust
• Built-In 10 Ampere Charge Controller Manages The Charge To The Battery And Prevents Overcharging
• Limited 10 Year Warranty On Solar Panels

Samlex America MSK135 Installation Instructions

• 11023-MSK-90-135-0616_Lrez.pdf

Samlex America MSK135 Technical Bulletins

• 12023-MSK-90-135-0319.pdf

Portable Solar Charging Kit - 135W

Samlex Portable MSK Charging Kits are easy to use! Just unfold, plug in and start charging. Capture the power of the sun without complicated installations, brackets or electrical diagrams. Each Kit comes with a convenient insulated carrying case that also protects the panels when stored.

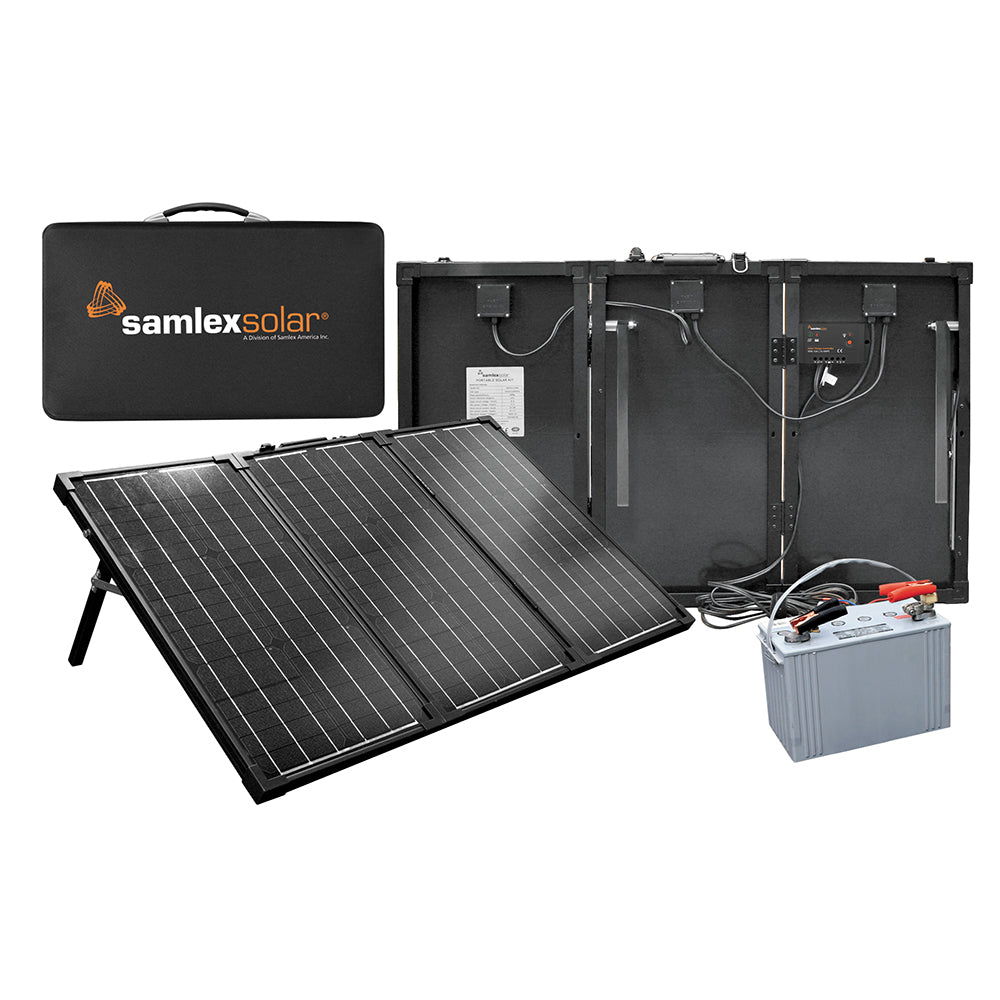

Your Kit Includes:

• 3 x 45W Solar Modules for charging 12V Lead Acid Batteries
• 10 Amp Charge Controller
• Includes a 2-pin bullet adapter for use in solar ready RV's
• Protective carrying case
• (Battery Not Included)

Features:

• Solar panel is pre-wired with battery clamps for a quick and easy connection, 16’ cable
• Turn the panel a few times per day and increase charging by 30%
• Adjustable legs allow for maximum sun exposure
• Folding crystalline panels in anodized aluminum frames, won’t rust
• Built-in 10 Amp Charge Controller manages the charge to the battery and prevents overcharging
• For 12V Lead Acid Batteries
• Includes protective carrying case
• NOTE: Battery is not included

Specifications:

• Watts: 135 Watt Solar Module for 12V Lead Acid Batteries
• Amps: 10 Amps
• Weight: 35.6 (lbs)
• Weight: 16.18 (kg)
• Dimensions: 59.65 x 24.41 x 1.18 (in) Open
• Dimensions: 1515 x 620 x 30 (mm) Open
• Warranty: 10 Year Power Warranty on Solar Panels (Canada/US)

Applications:

• Recreational Vehicles
• Off-grid/mobile solar systems
• Power supply for remote equipment
• Water pumping systems
• Rural electrification
• Small home power systems
• 12V Lead Acid battery charging system
• Other industrial and consumer applications

Easy to use, just unfold, plug in and start charging. No complicated installation, brackets or electrical diagrams are required to capture the energy of the sun. Including:-Battery clip...
SKU: NVN-68814
MPN: MSK-135
UPC: 622988181603
