Samlex SRV-200-30A Solar Charging Kit 200W w/30A Charge Controller

Use a Samlex Solar Charging Kit to keep the batteries in your RV or utility vehicle charged and healthy. Add a DC-AC Power Inverter to your system and you can run all of your favorite household devices from anywhere. The Samlex SRV-200-30A Solar Charging Kit comes with a high efficiency 200 Watt monocrystalline solar panel, a 30 Amp charge controller, connecting wires and aluminum mounting brackets and hardware that can be used to secure the solar panel to the roof of your remote structure or vehicle, or any other flat surface.

Samlex America SRV20030A Attributes

• Type: Battery Charging Panel Kit
• Power Rating: 200 Watt
• Panel Type: Monocrystalline
• Length (IN): 59.05 Inch
• Width (IN): 26.77 Inch
• Controller Type: 30 Amp Charge Controller
• Thickness (IN): 1.39 Inch
• Panel Mount Type: Bracket Mount
• With Cables: Yes
• With Mounting Hardware: Yes

Samlex America SRV20030A Features & Benefits

• Micro-Processor Control
• 30 Ampere Charging Capacity
• Battery Equalization
• Digital LCD Display Indicates Voltage, Current And Battery AH
• 8 Charge Settings For Different Battery Types
• Optional Remote Temperature Sensor
• 4 Stage Charging With LED Indicators
• Dual Voltage Capability 12 Volt And 24 Volt
• Limited 2 Year Warranty

Samlex America SRV20030A Installation Instructions

• 11028-SRV-100-150-200-30A-0921_Lrez.pdf

Samlex America SRV20030A Technical Bulletins

• 12028-SRV-200-100-150-30A_SSP-200-150-100-KIT-0922.pdf

SRV-200-30A Solar Charging Kit 200W with 30A Charge Controller

Solar Charging Kit SRV-200-30A provides a clean, green, silent, and sustainable source of solar-based DC power to charge 12V Lead Acid batteries.

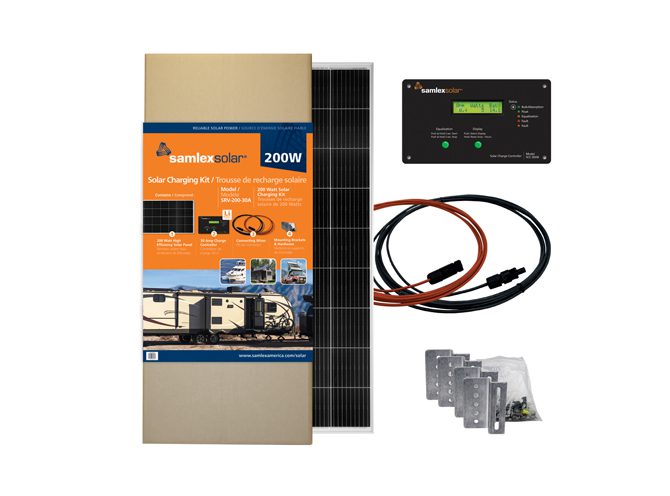

Each kit comes with the following:

• High-efficiency solar panel with MC-4 Connectors
• State-of-the-art, 30A Charge Controller
• Connecting Wires with mating MC-4 Connectors
• Mounting Brackets
• Installation Hardware

Features:

• High Conversion Efficiency generates more energy per square meter
• Protective Bypass Diodes avoid effects of partial shading
• Weatherproof Junction Box and Connectors, Optical Low Iron Tempered Glass, EVA Resin and Aluminum Frame for operation in outdoor, wet, and marine applications
• Highest manufacturing standards - Test ID for each panel
• Strong frame withstands high wind force

Applications:

• Residential Roof-top Systems
• Commercial/Industrial Building Roof-top Systems
• Rural area applications
• Other on-grid and off-grid applications
• Automotive, RV, and Marine

SKU: NVN-92087
MPN: SRV-200-30A
UPC: 622988180460
