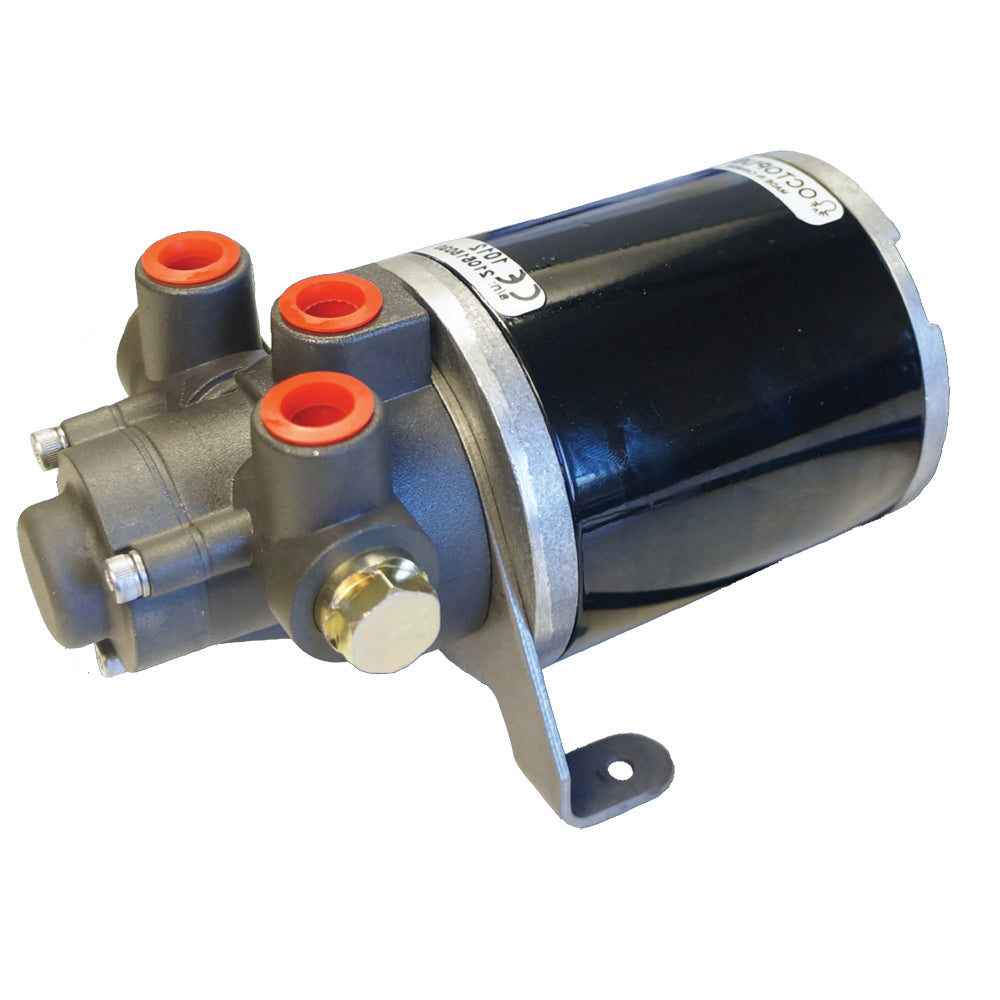

Octopus Hydraulic Gear Pump 12V 10-15CI Cylinder

New Gear Pump Offers Industry-Leading Reliability and Performance in a Smaller, Lighter, Quieter Package. We are excited to introduce our new 2 and 3L configurations suitable for cylinders all the way to 40 Cubic Inch. The increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units. All models available for both 12 Volt and 24 Volt systems.

Octopus OCTAFG1012 Attributes

• Compatibility: Hydraulically Steered Boats
• Cylinder Capacity: 10 Cubic Inch To 15 Cubic Inch
• Voltage Rating: 12 Volt
• Ampere Rating: 5 Amp
• Mounting Type: Floor Mount

Octopus OCTAFG1012 Features & Benefits

• High Efficiency: G2’s Smaller Gear Diameter Minimizes Oil Leakage At Bearing Faces Thus Improving Volumetric Efficiency
• Low Noise: New Industry Design Offers Significantly Quieter Operation
• Light Weight And Compact: Small Footprint Offers Greater Installation Flexibility
• Gear Pump Offers Industry-Leading Reliability And Performance In A Smaller, Lighter, Quieter Package
• Suitable For Balanced Or Unbalanced Cylinders
• Industry Leading Efficiency: Lower Power Consumption, Particularly Under Demanding Conditions Requiring Higher Flow Rates Equates To A Major Advantage Over Competing Units
• Limited 2 Year Warranty

Hydraulic Gear Pump 12V 10-15CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly
  under demanding conditions requiring higher flow rates equates to a major
  advantage over competing units.

• Cost saving - the increased efficiency and performance means the pumps
  can be used with smaller autopilot course computers than equivalent drive
  units.

• The smaller footprint of the compact gear pump increases installation
  flexibility.

• Lower noise and vibration make the gear pump particularly suitable for
  sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 1000CC/min

• Voltage: 12 Volt

• Cylinder Range: 10-15ci CYLINDER

• Average Current Draw: 5A

• Operating Temperature: -15 to +75'C (5 - 167'F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002

Reversing Gear Pump with 1/4 BSP Ports, MFG# OCTAFG1012, 1.0 Liter/minute flow rate, 12 Volts, for 10-15 cubic inch cylinder rams. Low noise, compact size.

Octopus hydraulic gear pump 12V 10-15CI cylinder [OCTAFG1012] Autopilot hydraulic gear pump 12V 10-15CI cylinder From the design team that brings you the legendary Octopus hydraulic transmission, our new gear pump is smaller, lighter and more Quiet packaging provides the industry with leading reliability and performance. Features: Industry-leading efficiency, lower power consumption, especially under harsh conditions that require higher traffic, which are the main advantages compared with competing products. Cost saving-the increase in efficiency and performance means that the pump can be used on a smaller autopilot course computer compared to the equivalent drive unit. The compact gear pump has a small footprint and can improve installation flexibility.
SKU: NVN-58838
MPN: OCTAFG1012
UPC: 628309191443
