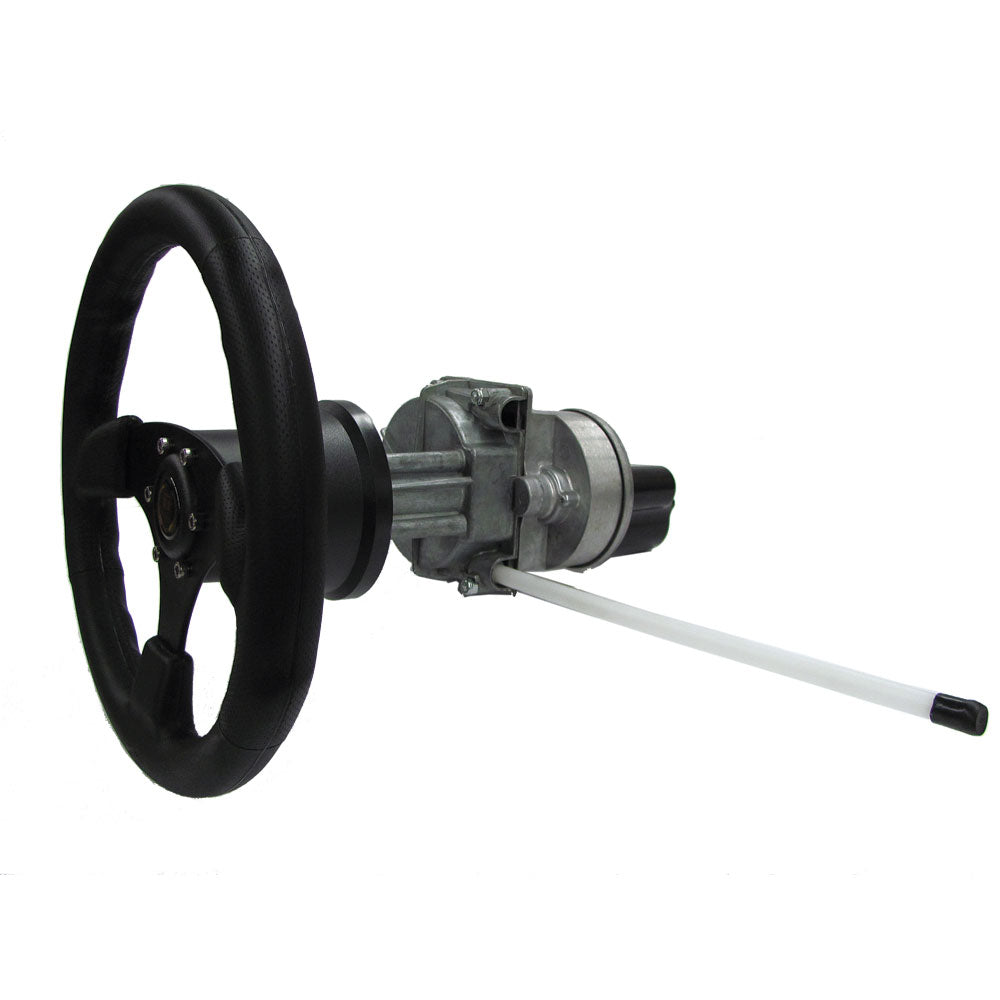

Octopus Type S Straight Shaft f/Mounting Behind the Dash f/Mechanical Drive Systems - Includes 90° Bezel Kit

Octopus OCTAFMDMSW Attributes

Type S - Standard Straight Shaft f/Mounting Behind the Dash

The Straight shaft drive unit replaces the manual drive used on cable steered boats and is mounted directly behind the dash. The drive is directly compatible with the Morse 290 steering helm but comes with its own bezel kit and can be retrofitted in most installations using the cable and steering wheel from the manual steering helm on the boat.

This drive can be mounted in 2 ways, either at 90° to the dashboard or at 20° to the dashboard. Spacer Kits are also available to reduce the space required behind the dashboard.

• Retro Fits to Most Cable Steered Vessel

• Easily Adaptable to S1 Autopilots

• The Only Viable Option When Adding an Autopilot to a Cable Steered Vessel

• Affordable, Reliable, Seamless-behind the Dash Installation

• 2 Year Limited Warranty

The drive is directly compatible with the Morse 290 steering rudder, but comes with its own baffle kit, which can be retrofitted with cables and steering gears in most installations.
SKU: NVN-44321
MPN: OCTAFMDMSW
UPC: 628309135850
