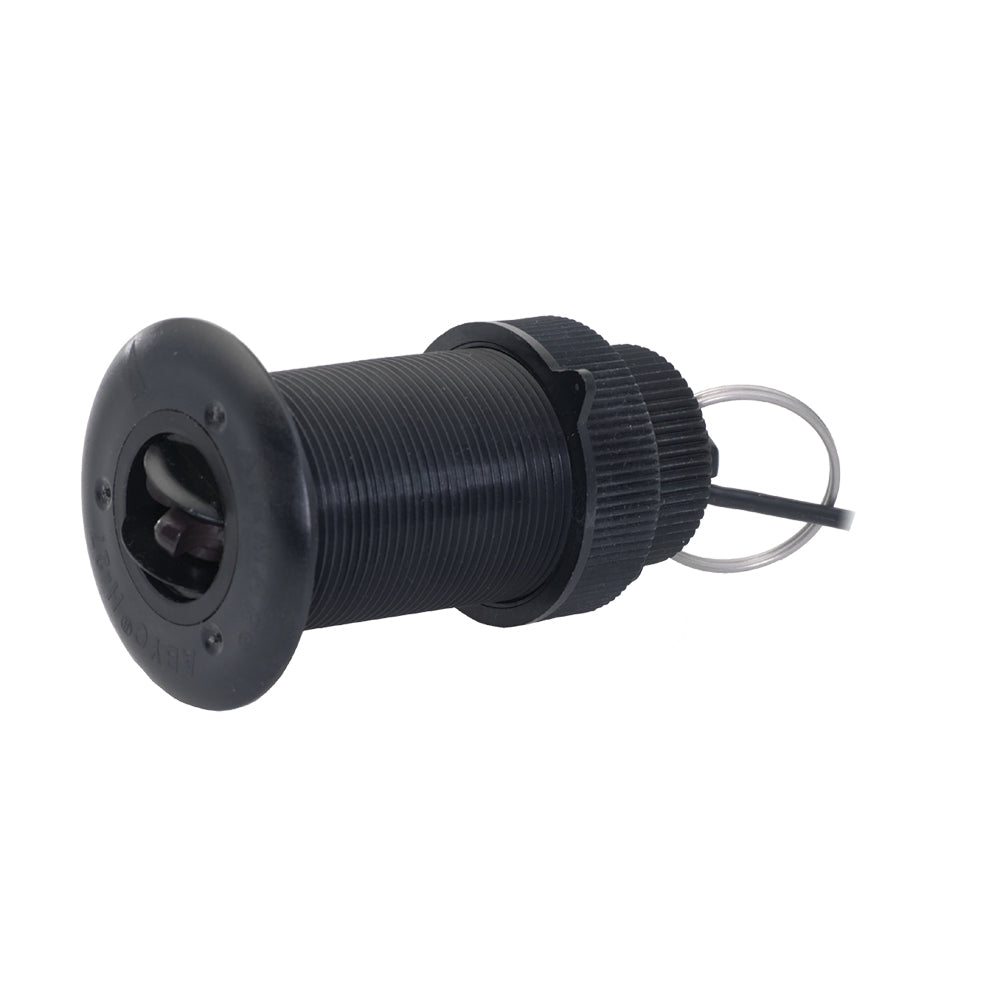

Airmar ST800PV-N2 NMEA 2000 Speed & Temp Transducer

The ST800 speed and temperature sensor processes digital signals inside the thru-hull housing. Then this Smart Sensor sends data to a chart plotter, radar screen, or digital display in NMEA 2000 format. These low-profile units are nearly flush, minimizing drag with only 5 mm (3/16") extending outside of the hull.

ST800PV-N2 NMEA 2000 Speed & Temp Transducer

The ST800 speed and temperature sensor process digital signals inside the thru-hull housing. Then this Smart™ Sensor sends data to a chart plotter, radar screen, or digital display in either analog or NMEA 2000® format. These low-profile units are nearly flush, minimizing drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Speed and fast-response water-temperature sensing
• Speed range from 2 to 45 knots (2 to 52 MPH)
• NMEA 2000 or NMEA 0183 analog output
• Retractable insert in a low-profile housing with a water valve
• Available in a plastic (P120) or bronze (B120) housing
• Airmar's Smart™ Sensor technology

Specifications:

• Plastic: 0.7 kg (1.4 lb.)
  • Bronze: 1.3 kg (2.8 lb.)
• Hull Material: Plastic: Fiberglass or metal/Bronze: Fiberglass or wood
• Hole Diameter: 51 mm or 2"
• Speed Range: 2 to 45 knots (2 to 52 MPH)
• Water Temperature: Range: -10 to 40°C (14 to 104°F)/ Accuracy: ±0.5°C (±1.8°F)
• Pressure Rating: 3 m (10')
• Data: Output Protocol: NMEA 0183 or NMEA 2000/Update Rate: 1 time/s
• Power: Supply Voltage: 9 to 16 VDC/Supply Current: <200 mA/NMEA 2000 Load Equivalency Number (LEN): 2
• Standard Cable Length: NMEA 2000: 6 m (20')/NMEA 0183: 9 m (30')
• Includes: Blanking plug
• Certifications and Standards: CE, IEC60945

ST800PV-N2 NMEA 2000 speed and temperature sensor ST800 speed and temperature sensor processes the digital signal inside the hull shell. Then, this Smartâ„¢ sensor sends the data to the chartplotter, radar...

• Speed and fast-response water-temperature sensing
• Speed range from 2 to 45 knots (2 to 52 MPH)
• NMEA 2000 output
• Retractable insert in a low-profile Plastic housing with a water valve
• Airmar's Smart Sensor technology

SKU: NVN-85105
MPN: ST800PV-N2
UPC:
