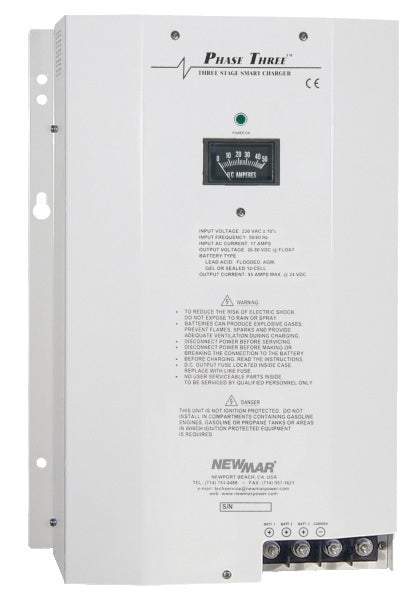

Newmar PT-24-60W 24v 60A Charger 230V Input
Newmar PT-24-60W 24v 60A Charger 230V Input — Product description
Powering your 24V marine electrical system demands reliability, especially when you're far from shore. The Newmar PT-24-60W steps in as a powerhouse 60A charger designed specifically for demanding marine environments. Drawing from 230V AC input, it delivers precise, three-stage "smart" charging to keep your gel-cell, flooded lead-acid, or AGM batteries in peak condition. Whether you're running a live-aboard yacht, workboat, or recreational cruiser, this charger ensures fast recovery after heavy use, optimal conditioning, and longer battery life—without the guesswork.
Standout Features That Deliver Real-World Performance
- Intelligent Three-Stage Charging: Automatically cycles through bulk (high-current recovery), absorption (full charge without overcharging), and float (maintenance mode) stages, adapting to your battery's needs for maximum efficiency and lifespan.
- Versatile Battery Compatibility: A simple selector switch lets you match settings for gel-cell, flooded lead-acid, or AGM types, dialing in the perfect charge and float voltages—like 28.0VDC charge / 27.2VDC float for gel-cell at 50% load.
- Triple Isolated Outputs: Charge up to three separate battery banks independently, with a clear ammeter showing total output current so you always know what's happening.
- Heavy-Duty Build for Marine Life: Housed in a rugged stainless steel enclosure with white powder coat finish and polyurethane-coated internals, it laughs off salt spray, humidity, and corrosion. Rated for tough operating temps (T-6 reference: -20°C to +50°C full output).
- Smart Protections: Current limiting guards against overloads, while clear LED indicators and optional alarms keep you informed. It even doubles as a power supply for loads without a battery connected.
- High-Capacity Match: Ideal for 120-600 amp-hour battery banks, handling everything from house banks to thruster or inverter setups on larger vessels.
Backed by extensive safety and EMC compliances (EN, CE), this charger meets stringent marine standards, giving you peace of mind on the water.
How the Three-Stage Process Maximizes Your Batteries
Traditional chargers can undercharge or overheat batteries, leading to sulfation or early failure. The PT-24-60W's "smart" circuitry monitors voltage and current in real-time:
- Bulk Stage: Pushes maximum 60A output to quickly replenish deeply discharged batteries.
- Absorption Stage: Tapers current while holding optimal voltage (e.g., 28.4VDC for flooded/AGM) to fully saturate without gassing.
- Float Stage: Drops to a safe maintenance voltage (e.g., 26.8VDC for flooded/AGM) to counteract natural self-discharge, ready for immediate use.
Add the optional TP temperature sensor, and it fine-tunes output based on ambient conditions—crucial in engine rooms where heat builds up. Skip equalization on this model, keeping things simple for sealed batteries.
Key Specifications at a Glance
| Specification | Details |
|---|---|
| Input Voltage | 207-253 VAC (50-60 Hz) |
| Max Output Current | 60A DC at 24V |
| Output Banks | 3 isolated |
| Battery Capacity | 120-600 Ah |
| Input Amps @ 230 VAC | 13A full load |
| Power Factor | 0.7 |
| Dimensions (A-6 Case, approx.) | 17.5" H x 12" W x 7.2" D (add allowances for terminals) |
| Weight | 24.1 lbs (11 kg) |
| Output Indicators | M-2: Charge/Float LEDs |
Compact yet robust (A-6 case size), it fits snugly in tight bilge spaces or electrical panels.
Perfect for Marine Pros and Enthusiasts
Boat owners swear by this charger for its no-fuss reliability. On a 50-foot trawler, it revives twin 24V house banks after a weekend of anchor lights and fridge duty. Commercial operators appreciate the multi-bank isolation—charge start, house, and electronics batteries separately without cross-talk. Pair it with solar or generator inputs for hybrid setups, and you've got a system that stays online through rough seas or long passages.
Installation is straightforward: hardwire to shore power or a generator, connect to batteries with adequate cabling (consult ampacity charts for 60A runs), and select your battery type. Mount vertically for best convection cooling.
Frequently Asked Questions
What battery types does the Newmar PT-24-60W support?
It works with gel-cell, flooded lead-acid, and AGM batteries via a built-in selector switch that sets optimal charge (28.0-28.4VDC) and float (26.8-27.2VDC) voltages.
Can I use this charger without batteries connected?
Yes, it functions as a stable 24V power supply for direct DC loads, with current limiting for safety.
Is temperature compensation available?
An optional TP sensor automatically adjusts output voltage based on battery temperature, ideal for varying marine climates.
How many battery banks can it charge?
Three fully isolated banks, perfect for separating house, engine start, and auxiliary batteries.
What's the operating temperature range?
Full 60A output from -20°C to +50°C (T-6 rating), with derating beyond for reliability in engine spaces.
Does it have a remote panel option?
No remote panel for this model, but onboard LEDs clearly show charge status and alarms.
Is it suitable for large battery banks?
Absolutely—optimized for 120-600 Ah systems, common on mid-to-large vessels with inverters or heavy electronics.
Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life.
A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.
Features
-
"Smart" circuitry provides three stage charging?bulk, absorption, float.
-
Wide model range covers battery system ratings from 14-950 amp-hours
-
Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages.
-
Multiple isolated output banks; ammeter indicates total output current. (except PT-7)
-
Optional sensor adjusts output voltage based on battery temperature. (except PT-7)
-
Current limiting-prevents damage from overloading.
-
Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel.
-
Use as a power supply; can power loads without a battery in line.
-
Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry.
-
Numerous Safety and EMC CompliancesTwo year parts and labor warranty
Models
| 12 Volt | 24 Volt | 32 Volt |
| PT-7 | PT-24-8W | PT-32-25W |
| PT-14W | PT-24-13W | |
| PT-25W | PT-24-20U | |
| PT-40U | PT-24-45U | |
| PT-80 | PT-24-60W | |
| PT-24-95U | ||
| Detailed specifications below. | ||
Specifications
| 12 Volt Models | PT-7 | PT-14W | PT-25W | PT-40W | PT-80 |
| Input VAC (50-60 Hz.) | 88-132 or | 85-264 | 90-132 or | 85-135 or | 90-264 |
| Input Amps @ Full Load | |||||
| @ 115 VAC | 2 | 2.8 | 6.5 | 8.5 | 12 |
| @ 230 VAC | 1 | 1.4 | 4 | 4.3 | 7 |
| P.F. Rating | >.65 | .93@230V | .7 | .7 | .95@230V |
| Max Output Amps | 7 | 14 | 25 | 40 | 80 |
| Output Banks | 2 | 3 | 3 | 3 | 3 |
| Battery Capacity (Amp-Hours) | 14-70 | 28-140 | 50-250 | 80-400 | 160-800 |
| Operating Temp. | T-1 | T-2 | T-4 | T-5 | T-7 |
| Case Size Ref. | A-1 | A-2 | A-2 | A-3 | A-5 |
| Weight; Lbs./Kg. | 3.2/1.5 | 8/4 | 8.2/4 | 12/6 | 15.2/7 |
| Optional Temp.Sensor Model | N/A | TCS-12/24 | TCS-12/24 | TCS-12/24 | TCS-12/24 |
| Remote Panel Model | N/A | RP | RP | RP | RP |
| Equalize Option | No | Yes | Yes | Yes | Yes |
| Output Indicator Ref. | M-1 | M-3 | M-3 | M-3 | M-3 |
| Compliance Ref. | CG, CE | CG, CE | CG | CG, CE | CE |
| 24 Volt Models | PT-24-8W | PT-24-13W | PT-24-20U | PT-24-45U | PT-24-60W | PT-24-95U |
| Input VAC (50-60 Hz.) | 85-264 | 90-132 or | 85-135 or | 90-264 | 207-253 | 90-264 |
| Input Amps @ Full Load | ||||||
| @ 115 VAC | 2.8 | 6.5 | 8.5 | 12 | NA | 26 |
| @ 230 VAC | 1.4 | 4 | 4.3 | 7 | 13 | 14 |
| P.F. Rating | .93@230V | .7 | .7 | .95@230V | .7 | .95@230V |
| Max Output Amps | 8 | 13 | 20 | 45 | 60 | 95 |
| Output Banks | 3 | 3 | 3 | 3 | 3 | 3 |
| Battery Capacity (Amp-Hours) | 16-80 | 26-130 | 40-200 | 90-450 | 120-600 | 180-950 |
| Operating Temp. | T-2 | T-3 | T-5 | T-8 | T-6 | T-8 |
| Case Size Ref. | A-2 | A-2 | A-3 | A-5 | A-6 | A-6 |
| Weight; Lbs./Kg. | 8/4 | 8.2/4 | 12/6 | 12.2/6 | 24.1/11 | 24.5/11 |
| Optional Temp.Sensor Model | TCS-12/24 | TCS-12/24 | TCS-12/24 | TCS-12/24 | TP | TCS-12/24 |
| Remote Panel Model | RP | RP | RP | RP | N/A | RP |
| Equalize Option | Yes | Yes | Yes | Yes | No | Yes |
| Output Indicator Ref. | M-3 | M-3 | M-3 | M-3 | M-2 | M-3 |
| Compliance Ref. | CG, CE | CG | CG, CE | EN, CE | EN, CE | EN, CE |
| 32 Volt Model | PT-32-25W |
| Input VAC (50-60 Hz.) | 104-126 |
| Input Amps @ Full Load | |
| @ 115 VAC | 15 |
| @ 230 VAC | N/A |
| P.F. Rating | .7 |
| Max Output Amps | 25 |
| Output Banks | 3 |
| Battery Capacity (Amp-Hours) | 50-250 |
| Operating Temp. | T-6 |
| Case Size Ref. | A-4 |
| Weight; Lbs./Kg. | 12.2/6 |
| Optional Temp.Sensor Model | TP |
| Remote Panel Model | N/A |
| Equalize Option | No |
| Output Indicator Ref. | M-2 |
| Compliance Ref. | EN, CE |
Case Size
| Inches | Centimeters | |||||
| Ref | H | W | D | H | W | D |
| A-1 | 10.5 | 5.0 | 2.8 | 26.7 | 12.7 | 7.1 |
| A-2 | 12.5 | 7.7 | 4.3 | 31.8 | 19.6 | 10.9 |
| A-3 | 13.85* | 9.5 | 4.8* | 35.2* | 24.1 | 12.2* |
| A-4 | 13.8A | 9.8 | 5A | 35A | 24.9 | 12.7A |
| A-5 | 14.8B | 9.6 | 5.6B | 37.6B | 24.4 | 14.2B |
| A-6 | 17.5C | 12 | 7.2C | 44.5C | 30.5 | 18.3C |
| * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth | ||||||
Temperature Rating References:
| T-1 | -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C |
| T-2 | -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C |
| T-3 | -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C |
| T-4 | -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C |
| T-5 | -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C |
| T-6 | -20°C to +50°C; Full output |
| T-7 | -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C |
| T-8 | -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C |
Output Indicator References
| M-1 | Total output ammeter |
| M-2 | Charge/Float L.E.D. |
| M-3 | Total output ammeter and charger status L.E.D.'s/Alarms |
Compliance References*
See matrix for applicable models
CG USCG CFR 183.410 (Ignition protected)
EN EN 60335-1, EN 60335-2-29
CE Carries the CE Mark
* Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance
information is required.
Nominal Output Voltages at Gel/Flooded Switch Settings
(Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature
Compensation option installed.)
| | 12 Volt Models | 24 Volt Models | 32 Volt Model | |||
| Charge | Float | Charge | Float | Charge | Float | |
| Setting | @ 50% load | @ .5 amp load | @ 50% load | @ .5 amp load | @ 50% load | @ .5 amp load |
| Gel-Cell | 14.0 VDC | 13.6 VDC | 28.0 VDC | 27.2 VDC | 37.3 VDC | 36.2 VDC |
| Flooded/AGM | 14.2 VDC | 13.4 VDC | 28.4 VDC | 26.8 VDC | 37.8 VDC | 35.7 VDC |
