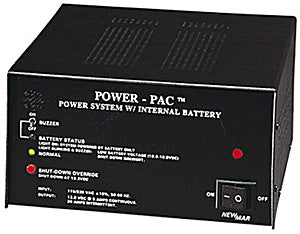

Newmar Power Pac 7AH Power Supply
Newmar Power Pac 7AH Power Supply — Product description
Ensure Uninterrupted VHF Communications with Seamless Backup Power
In demanding environments where every second of radio contact counts—like coastal monitoring stations, remote outposts, or marine operations—power failures can mean lost signals and compromised safety. The Newmar Power Pac 7AH steps in as your reliable guardian, delivering stable 13.6 VDC power while charging its internal battery. When the grid falters, it switches effortlessly to battery mode, keeping your VHF shore station humming without a glitch or noisy interference that could garble transmissions.
Engineered for those high-stakes moments, this compact unit combines a robust AC-DC converter with smart battery management. Operators in harsh, salt-laden air or fluctuating power grids rave about its zero-downtime performance, making it a staple for professionals who can't afford interruptions.
Standout Features for Mission-Critical Reliability
- Ultra-Low Ripple Output: Just 1% peak-to-peak ripple ensures crystal-clear radio signals, free from the hum or buzz that plagues lesser supplies—perfect for sensitive VHF equipment.
- Automatic Failover: Batteries engage instantly upon AC loss, with no manual intervention needed. Your radios stay live, bridging outages from minutes to hours depending on load.
- Intelligent Battery Protection: Low battery alarms alert you early, with automatic disconnect to preserve charge. An override switch lets you push it further in true emergencies.
- Universal AC Input: Handles 115/230 VAC at 50-60 Hz, adapting to global power standards without fuss.
- Rugged Build: Withstands 0-40°C temperatures and weighs just 18 lbs for the 7AH model, fitting snugly in tight console spaces at 5.3" H x 9.0" W x 10.5" D.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Input Voltage | 115/230 VAC, 50-60 Hz |
| Output | 13.6 VDC @ 5A continuous, 10A intermittent |
| Regulation | 1% line and load |
| Ripple | 1% peak-to-peak |
| Operating Temperature | 0-40°C |
| Dimensions (HxWxD) | 5.3" x 9.0" x 10.5" |
| Weight (7AH Model) | 18 lbs |
Note: A 14AH variant offers extended runtime at 24 lbs for heavier-duty needs.
Real-World Applications and Why It Excels
Picture a foggy harbor where VHF chatter coordinates rescue boats—sudden blackouts shouldn't silence that lifeline. The Power Pac 7AH shines here, providing enough reserve for several hours of transmit/receive cycles under typical loads. Its tight regulation prevents voltage sags that could drop distant signals, a common headache with basic UPS units.
Marine pros, emergency services, and industrial sites choose it for the noise-free operation that meets stringent FCC and ITU audio standards. Unlike generic power bricks, the integrated charging keeps sealed lead-acid batteries topped off efficiently, extending lifespan in continuous-use scenarios. Setup is straightforward: plug in AC, connect your radio, and monitor via front-panel LEDs—no IT degree required.
For extended blackouts, pair it with external monitoring; the override ensures you squeeze every last amp-hour when it matters most.
Frequently Asked Questions
Power-Pac
Designed for critical applications such as VHF shore stations that must remain on the air, even during a power outage. The 12 volt supply features built-in back-up batteries which are charged during normal operation and then continue to power radios even when AC power is lost.
- Highly regulated, low ripple output for noise-free radio operation
- Battery automatically comes on-line if AC fails
- Low battery alarm and disconnect, with override switch for emergency power
General Specifications
- Input 115/230 VAC, 50-60 Hz.
- Output:13.6 VDC @ 5A cont., 10A Int.
- Regulation: 1% line and load
- Ripple: 1% P-P
- Operating Temp: 0-40° C
Models:
Power-Pac 7 A/H (w/7 amp/hour battery), 18 lbs.
Power-Pac 14 A/H (w/14 amp/hour battery), 24 lbs.
Dimensions (both models): 5.3? H x 9.0? W x 10.5? D
Power-Pac is designed for critical applications, such as VHF power outages, which must remain in the air even during power outages. The 12 volt power supply has a built-in backup battery...
SKU: NVN-1001189
MPN: POWER PAC 7AH
