Newmar CS-2 Connector Strip F/ 14G Wire
Newmar CS-2 Connector Strip F/ 14G Wire — Product description
Streamline Your Wiring Projects with Reliable Performance
Imagine tackling a complex marine electrical setup or RV rewiring job without the hassle of loose connections or damaged wires. The Newmar CS-2 connector strip delivers exactly that—compact, durable, and engineered for the toughest environments. Designed specifically for 14-gauge wire, this strip handles up to 10 amps while keeping your circuits secure and vibration-resistant. Boat owners and mobile technicians swear by it for its no-fuss installation that saves hours on the water or on the road.
What sets it apart? Unlike traditional crimp connectors that require special tools and lugs, the CS-2 uses a clever screw-compression system. A stainless steel finger grips the brass barrel around your wire, all without the screw ever touching the copper strands. This prevents nicks, breaks, or corrosion over time, ensuring long-term reliability in salty air or dusty trails.
Standout Features for Professional-Grade Connections
- Molded Nylon Housing: Tough, insulating shell encases 12 pairs of terminals, protecting against shorts and environmental wear. Easily snip to custom lengths for tight spaces in panels or consoles.
- Screw Compression Without Lugs: Brass barrels clamp wires securely using a stainless steel mechanism—no stripping beyond the essentials or risking strand damage.
- ABYC Compliant: Meets stringent marine standards for safety and performance, making it a go-to for yacht builders and custom installs.
- Vibration-Proof Design: Perfect for engines, bilges, or off-road vehicles where constant motion tests every connection.
- Compact Footprint: Measures just 4.5" x 0.75" x 0.75", fitting seamlessly into junction boxes or behind dashboards.
Pro tip: Pair it with heat-shrink tubing over the ends for extra waterproofing in exposed marine applications. It's the same reliable strip found in high-end power distribution boxes, now accessible for DIYers and pros alike.
Detailed Specifications at a Glance
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps | Dimensions (L x W x H) |
|---|---|---|---|---|
| CS-2 | 12 | 14 AWG | 10A | 4.5" x 0.75" x 0.75" |
*Max amps rated for standard conditions; always derate for bundling or high ambient temps.
Easy Installation Steps for Flawless Results
- Strip wire ends to about 1/4" and insert into the brass barrel.
- Tighten the screw to compress the stainless steel finger—feel the resistance build for a solid grip.
- Cut the strip to your needed length using wire cutters; no special tools required.
- Mount in your enclosure or secure with ties for a clean, professional finish.
Users report it outperforms push-in connectors in wet conditions and holds up better than wire nuts in high-vibe setups. Ideal for consolidating runs in battery compartments, lighting circuits, or accessory feeds.
Versatile Applications Across Industries
From restoring classic boats to upgrading RV solar systems, the CS-2 shines where space is tight and reliability is non-negotiable. Marine electricians use it for nav gear and pumps; RV techs for inverter hookups; even automotive customizers for gauge clusters. Its ABYC approval gives peace of mind for commercial vessels too.
Frequently Asked Questions
What wire size is the Newmar CS-2 designed for?
It's optimized for 14-gauge wire, accommodating up to 10 amps safely.
Does the CS-2 meet marine safety standards?
Yes, it complies with ABYC standards, ideal for boating and yacht applications.
Can I cut the connector strip to a shorter length?
Absolutely—it's designed for easy cutting to fit your exact wiring needs and space constraints.
How does the connection mechanism protect wires?
A stainless steel finger compresses brass barrels around the wire; the screw never contacts the copper, preventing cuts or breakage.
Is the CS-2 suitable for vibration-heavy environments?
Yes, its secure compression holds firm under constant motion, like in engines or off-road vehicles.

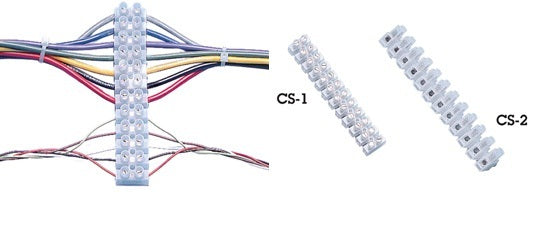

What's the difference between CS-1 and CS-2 models?
CS-2 handles thicker 14-gauge wire at 10 amps with a slightly larger profile; CS-1 is for 16-gauge at 6 amps.
Do I need special tools to install it?
No lugs or crimpers required—just a screwdriver for the screws.
- Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
- Strips are easily cut to meet wiring requirements and space limitations.
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps* | Size |
| L X W X H | ||||
| CS-1 | 12 | 16 | 6 | 3.75" x .675" x .5" |
| CS-2 | 12 | 14 | 10 | 4.5" x .75" x .75" |
"Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel finger compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage Meets ABYC standards. (Same connector strip used in BX Series boxes.) Strips are easily cut to meet wiring requirements and space limitations."
SKU: NVN-1001163
MPN: CS-2
UPC: 719441150464
Technical specifications
| Brand | NewMar |
| Model | Newmar CS-2 Connector Strip F/ 14G Wire |
| SKU / MFR# | 1001163 |
