Newmar CS-1 Connector Strip F/ 16G Wire
Newmar CS-1 Connector Strip F/ 16G Wire — Product description

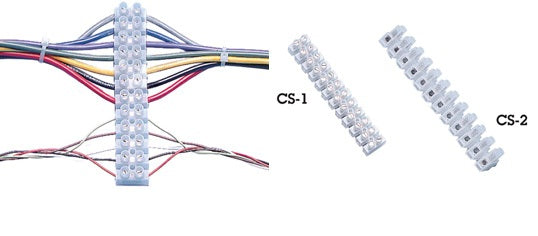

When tackling wiring projects in tight spaces like boat panels, RV setups, or custom electronics, you need connectors that deliver rock-solid reliability without the hassle of loose wires or failed connections. The Newmar CS-1 connector strip steps up as a go-to solution for 16-gauge wire, packing 12 pairs of secure terminals into a compact, molded nylon housing. It's the same trusted strip found in professional-grade junction boxes, designed for real-world demands where every connection counts.
Unlike traditional crimp connectors that demand special tools or bulky lugs, this strip uses a clever screw-compression system. Brass barrels grip the wire strands firmly, while a stainless steel finger—compressed by the screw—ensures a vibration-proof hold. Best of all, the screw never touches the copper, preventing nicks, breaks, or corrosion over time. It's built to exceed ABYC standards, giving you peace of mind in marine environments or any high-stakes electrical setup.
Standout Features for Flawless Wiring
- Screw Compression Without Lugs: Secure wires up to 16 AWG with just a screwdriver—no crimpers needed.
- Durable Construction: Molded nylon body resists moisture and chemicals; brass barrels and stainless steel components fight corrosion.
- Customizable Fit: Easily snip the strip to exact lengths, adapting to your panel space or wiring layout.
- High Reliability: Rated for 6 amps continuous, perfect for low-to-medium current circuits like lights, sensors, or accessories.
- Proven in the Field: Matches the quality used in Newmar's BX Series boxes, trusted by installers worldwide.
Why This Connector Strip Saves Time and Headaches
Imagine streamlining your install: one strip handles a dozen connections, keeping your wiring neat and organized. No more dangling wires or makeshift ties. The design minimizes resistance for efficient power flow, reducing heat buildup in enclosed spaces. For boat owners, it's a lifesaver during rough seas—vibration simply tightens the grip. RV enthusiasts appreciate the compact profile (just 3.75" long, 0.675" wide, 0.5" high), fitting snugly behind dashboards or in battery compartments.
Pro tip: Pair it with heat-shrink tubing over connections for extra waterproofing in wet environments. This setup not only boosts safety but also makes troubleshooting a breeze—every wire has its dedicated spot.
Technical Specifications at a Glance
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps | Dimensions (L x W x H) |
|---|---|---|---|---|
| CS-1 | 12 | 16 AWG | 6 | 3.75" x 0.675" x 0.5" |
| CS-2 | 12 | 14 AWG | 10 | 4.5" x 0.75" x 0.75" |
Ideal Applications for Everyday Pros
- Marine Electronics: Bilge pumps, navigation lights, VHF radios—ABYC compliance keeps you survey-ready.
- RV and Trailer Wiring: Interior lights, battery monitors, solar hookups without clutter.
- Custom Builds: Audio systems, LED strips, or sensor arrays in vehicles and machinery.
- Industrial Panels: Control circuits where space is premium and downtime isn't an option.
Users rave about how it transforms chaotic wiring jobs into professional-looking harnesses. One installer shared: "Cut to fit my dash perfectly—zero loose ends after a full refit."
Quick Installation Guide for Best Results
- Strip wire ends to 1/4" and twist strands tightly.
- Insert into brass barrel until it bottoms out.
- Tighten screw firmly (10-15 in-lbs torque) to compress the stainless finger.
- Trim strip as needed with side cutters.
- Mount or bundle with ties; test continuity before powering up.
Avoid overtightening to prevent wire damage. For saltwater exposure, seal ends with marine-grade sealant.
Frequently Asked Questions
Can I use the CS-1 for wires smaller than 16 gauge?
Yes, it handles 16-22 AWG reliably. Smaller wires fit snugly in the brass barrel, but twist strands well for optimal contact.
Is this connector strip waterproof?
The nylon housing offers splash resistance, but for submersion, add heat-shrink or silicone sealant over each joint.
How does it compare to individual butt connectors?
It provides the same secure hold in a pre-organized strip, saving space and installation time while maintaining ABYC standards.
Can I cut the strip and still use the ends?
Absolutely—each pair is independent. Just ensure clean cuts between terminals to avoid shorts.
What's the difference between CS-1 and CS-2?
CS-1 is optimized for 16 AWG (6A), slimmer profile. CS-2 takes 14 AWG (10A) with a slightly larger body for beefier wires.
Does it meet marine safety standards?
Yes, fully ABYC compliant, ensuring vibration resistance and secure connections for boating applications.
- Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
- Strips are easily cut to meet wiring requirements and space limitations.
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps* | Size |
| L X W X H | ||||
| CS-1 | 12 | 16 | 6 | 3.75" x .675" x .5" |
| CS-2 | 12 | 14 | 10 | 4.5" x .75" x .75" |
Molded nylon wraps 6 or 12 pairs of connectors. These connectors use screw compression to secure the wires without using lugs. Ideal for electronic installation. The brass barrel captures the wires and...
SKU: NVN-1001162
MPN: CS-1
UPC: 00728072350242
