Newmar CCX-S Feed Thru .55 Cable .83 Connector Ma
Newmar CCX-S Feed Thru .55 Cable .83 Connector Ma — Product description
Discover the reliable performance of the Newmar CCX-S feed-thru connector, engineered for seamless coaxial cable routing in demanding marine environments. This compact solution handles cables from .35" to .55" in diameter, accommodating max connector sizes up to .83", making it ideal for small radar plugs and similar fittings. Whether you're outfitting a vessel for offshore adventures or upgrading onboard electronics, the CCX-S ensures a watertight seal that protects against corrosion and moisture intrusion.
Key Features and Benefits
- Precision Fit for Small Cables: Perfectly suited for .35"-.55" diameter cables, it supports small radar plugs without compromising on security or ease of installation.
- Robust Waterproof Design: Constructed with high-grade materials that withstand harsh saltwater exposure, UV rays, and constant vibration, extending the life of your cabling setup.
- Feed-Thru Simplicity: Allows clean, professional passthrough through decks, bulkheads, or cabin walls, eliminating messy external routing and reducing snag risks.
- Versatile Compatibility: Works effortlessly with common marine electronics like compact radars, VHF antennas, and AIS systems, ensuring reliable signal integrity.
- Easy Maintenance: Tool-free adjustments and durable construction mean less downtime and straightforward servicing even in tight spaces.

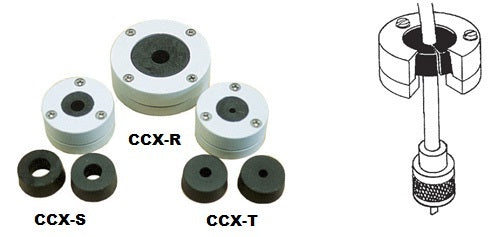

Technical Specifications Comparison
| Model | Cable Diameter Range | Max Connector Diameter | Typical Connector |
|---|---|---|---|
| CCX-R | .47" - .59" | 1.57" | Large Radar Plug |
| CCX-S | .35" - .55" | .83" | Small Radar Plugs |
| CCX-T | .18" - .35" | .83" | PL-259, BNC, Wind Instrument Plugs |
Why Choose the CCX-S for Your Marine Setup?
In the world of boating electronics, signal loss from poor connections can mean the difference between spotting hazards and running aground. The Newmar CCX-S steps up with superior sealing technology that maintains 100% waterproof integrity under pressure, tested to handle real-world pounding waves and spray. Boaters rave about its no-fuss install—simply thread your cable, tighten the gland, and you're set. It's a step above generic passthroughs, offering marine-grade durability that resists galvanic corrosion, a common killer of coax fittings in saltwater.
Ideal applications include center-console boats, sailboats, and fishing charters where space is at a premium. Pair it with your radar dome or fishfinder cable for uninterrupted performance, and enjoy peace of mind knowing your setup is built to last seasons without leaks or failures.
Installation Tips for Optimal Results
- Measure your cable and connector diameters to confirm CCX-S compatibility (.35"-.55" cable, up to .83" connector).
- Drill a precise hole matching the unit's mounting footprint for a flush fit.
- Slide the cable through, position the connector, and hand-tighten the compression nut for initial seal—use a wrench for final torque if needed.
- Apply marine sealant around the base for extra protection in high-exposure areas.
- Test the connection with a multimeter to verify continuity before full deployment.
Pro tip: For multi-cable runs, consider combining with Newmar's broader CCX lineup for a unified, professional-grade installation.
Frequently Asked Questions
What cable sizes does the Newmar CCX-S support?
The CCX-S is designed for cable diameters ranging from .35 inches to .55 inches, with a maximum connector diameter of .83 inches.
Is the CCX-S suitable for radar installations on boats?
Yes, it's optimized for small radar plugs, providing a secure, waterproof feed-thru perfect for marine radar systems.
How does the CCX-S differ from the CCX-R model?
The CCX-S handles smaller cables (.35"-.55") and connectors up to .83", while the CCX-R is for thicker cables (.47"-.59") and larger 1.57" connectors like big radar plugs.
Can the CCX-S be used in saltwater environments?
Absolutely—its corrosion-resistant build makes it ideal for harsh marine conditions, including constant saltwater exposure.
What's the best way to install the CCX-S feed-thru?
Drill a matching hole, thread the cable through, secure the gland nut, and seal the base for a watertight fit. No special tools required.
Does the CCX-S work with other coax connectors besides radar plugs?
While optimized for small radar plugs, it fits any connector up to .83" as long as the cable diameter stays within .35"-.55".
| Model | Cable Diameter Range | Max Connector Diameter | Typical Connector |
| CCX-R
| .47"-.59" | 1.57" | Large Radar Plug |
| CCX-S
| .35"-.55" | .83" | Small Radar Plugs |
| CCX-T
| .18"-.35" | .83" | PL-259, BNC, Wind Instrument Plugs |
Model Cable Diameter Range Maximum Connector Diameter Typical Connector CCX-R .47 "-. 59" 1.57 "Large Radar Plug...
SKU: NVN-1001160
MPN: CCX-S
