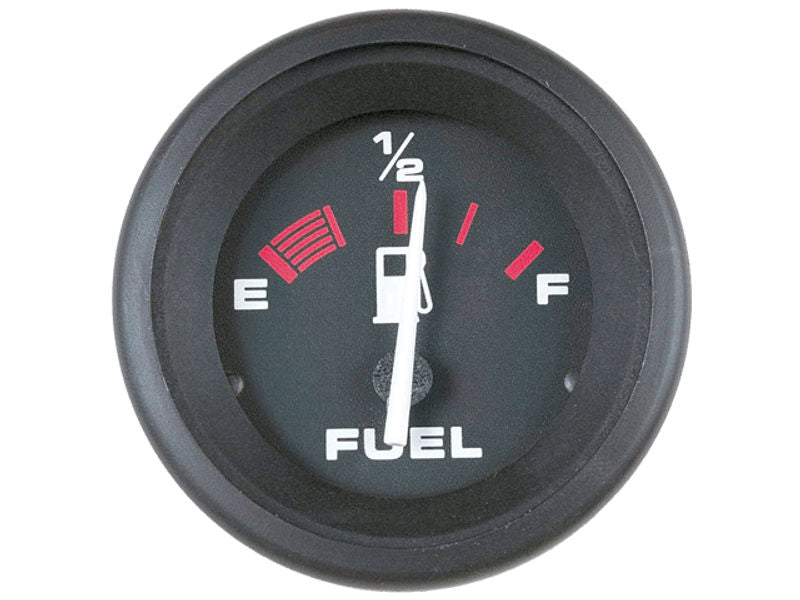

Sierra Amega 57902P 2-Inch Marine Fuel Gauge

The Sierra Marine Amega 57902P is a straightforward 2-inch electrical fuel gauge built to live on a boat's dash. Black face, black bezel, white needle, and thru-dial lighting so you can still read your fuel level after dark. If you're rebuilding a helm or replacing a faded gauge that quit years ago, this is the honest, no-drama way to get your fuel reading back.

Here's how it works. This is an electrical gauge, which means it reads off a fuel sending unit in your tank instead of tapping the fuel line directly. The sender is a float on an arm. As the fuel level drops, the float drops, the sender's resistance changes, and the needle on this gauge tracks that change from Full down to Empty. Simple, reliable, and the same basic setup that's been on boats and outboards for decades.

The dial reads Empty, Half, and Full. It's a short-sweep gauge, so the needle travels a limited arc across the face rather than a full 270 degree swing. That keeps the gauge compact and easy to read at a glance, though you'll be reading relative level, not exact gallons. For most center consoles, bass boats, and small cruisers, knowing you're at a half tank versus a quarter is exactly what you need to plan a run and get home with fuel to spare.

Fitment is universal, and the 2-inch size is the marine and automotive standard. It drops into a common 2-1/16 inch panel cutout, so if you're swapping out an old 2-inch gauge, the hole is very likely already the right size. It mounts from behind and wires into a 12 volt DC system. You'll run a switched 12V feed, a ground, the signal wire from your tank sender, and a lighting wire for the thru-dial illumination.

One thing worth saying up front, because it's the number one reason a new fuel gauge reads wrong: the gauge and the sender have to speak the same language. Fuel senders come in different resistance ranges, and this gauge is calibrated for a specific one. Before you buy or wire a sender, confirm its ohm range matches this gauge. Pairing a mismatched sender with any fuel gauge is what makes a needle sit pegged on Full or slammed on Empty no matter how much fuel is in the tank. Get the pairing right and it just works.

The thru-dial lighting runs off your panel light circuit on 12 volts. It gives you a clean, even glow across the whole face at night. If you find it a touch bright on a dark run, wiring the lighting through a dimmer or your existing dash dimmer circuit tames it nicely. That's a common setup and worth doing if you run at night a lot.

This is a fuel gauge, not a fuel sender, so plan on sourcing a compatible sending unit separately if you don't already have one in the tank. The black-face, white-needle look is clean and pairs well with a matching set of Sierra Amega gauges if you're redoing the whole panel and want the speedo, tach, and fuel readout to match. It's a marine-grade gauge, but like any dash instrument it's happiest under a windshield or in a console rather than taking green water head-on. Give it a wipe-down now and then and it'll ride along for years.

For a boater who just wants a reliable, good-looking fuel readout without overthinking it, the Amega 57902P checks the boxes. Standard size, standard wiring, honest analog needle. And if you're not sure which sender you need or how to wire the lighting, give us a shout. We rig these all the time.
