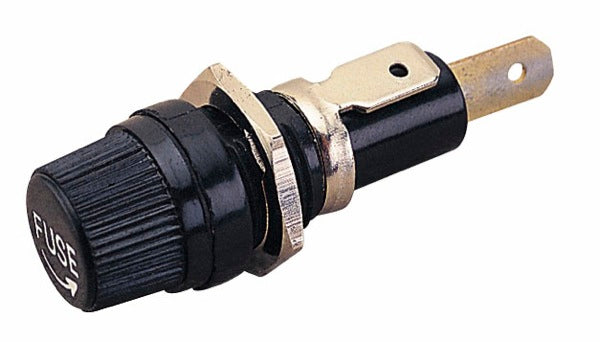

Sea-Dog AGC Fuse Holder 15A Spade Terminal 420503-1
Sea-Dog AGC Fuse Holder 15A Spade Terminal 420503-1 — Product description
The Sea-Dog AGC fuse holder gives you a simple, corrosion-resistant way to protect a single 12-volt circuit. It takes standard 1/4 inch by 1-1/4 inch AGC glass fuses, wires in with spade terminals, and seals the fuse under a screw-on cap.
The Sea-Dog AGC fuse holder is a simple, reliable way to protect a single circuit on your boat. It takes standard 1/4 inch by 1-1/4 inch AGC glass fuses, the same ones in Sea-Dog's 444101 through 444115 range, and it's rated for 15 amps at 12 volts DC.
The body is brass and bakelite, so it holds up to the damp, salty air that eats cheaper holders alive. A screw-on cap keeps the fuse seated and sealed, and the spade terminals make wiring it in quick. No special tools, no soldering if you don't want it. Just crimp on your connectors and go.
It's a good fit for accessory circuits, nav lights, pumps, or any single run where you want a fuse you can check and swap by hand. Fuses aren't included, so grab the amperage you need separately. One holder per pack.
Key Features
- Accepts standard 1/4 inch x 1-1/4 inch AGC glass fuses (Sea-Dog 444101 to 444115), so replacements are easy to find
- Rated 15 amps at 12 volts DC for accessory and lighting circuits
- Brass and bakelite construction stands up to a damp marine environment
- Screw-on cap seals the fuse in place and keeps moisture out
- Spade terminals wire in fast with standard crimp connectors
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog AGC Fuse Holder, Spade Terminal, Screw-On Cap, Single |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420503-1 |
| UPC | 035514422970 |
| Product Type | Fuse Holder |
| Amperage Rating | 15 Ampere at 12 Volt DC |
| Terminal Type | Spade |
| Material | Brass / Bakelite |
| Cap Type | Screw-On |
| Fuse Type | AGC (1/4 Inch x 1-1/4 Inch) |
| Compatible Fuses | 444101 to 444115 |
| Quantity | Single |
Frequently asked questions
What size fuses does this holder use?
It takes standard AGC glass fuses, 1/4 inch by 1-1/4 inch, matching Sea-Dog's 444101 through 444115 range.
Are fuses included?
No. The holder ships on its own, so pick up the amperage you need separately.
What's the amp rating?
It's rated for 15 amps at 12 volts DC.
How does it wire in?
It uses spade terminals, so you crimp standard connectors onto your wires and slide them on. No soldering required.
