Faria Chesapeake Black 2" Fuel Level Gauge (E-1/2-F)
Faria Chesapeake Black 2" Fuel Level Gauge (E-1/2-F) — Product description

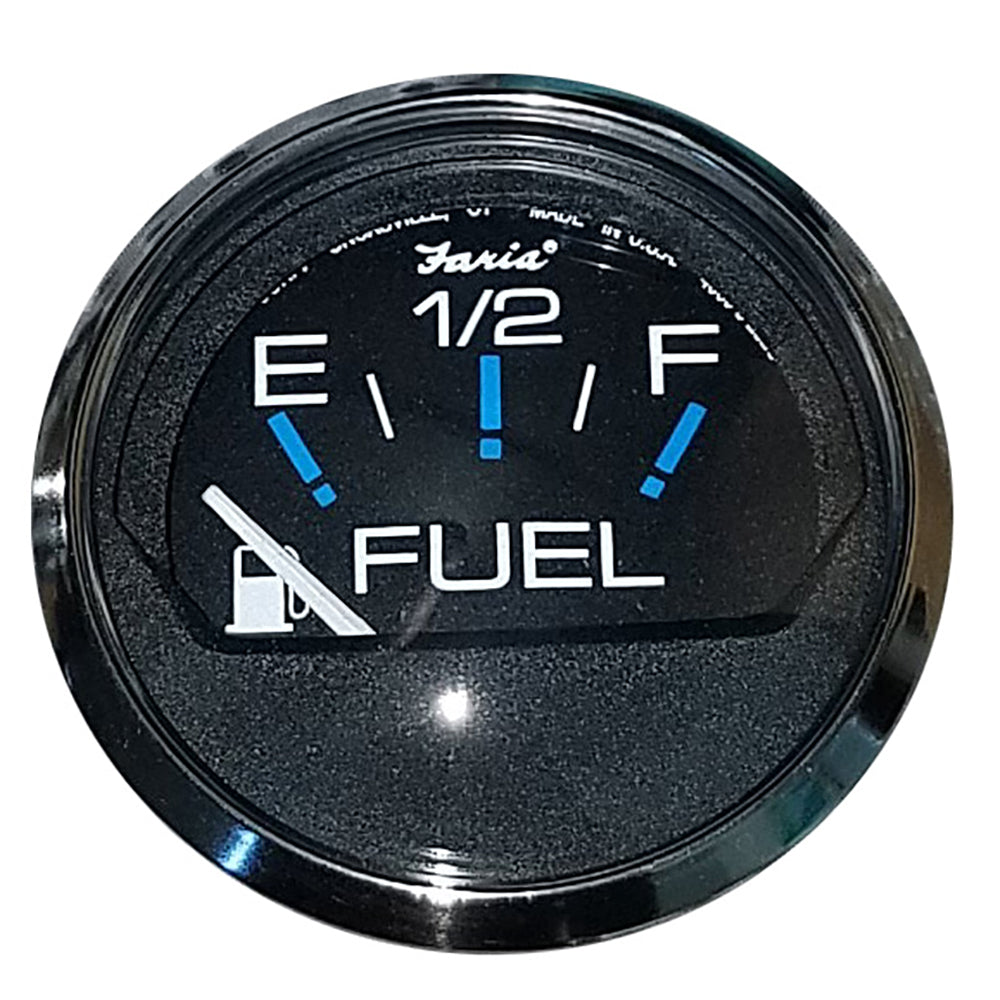

Chesapeake Black 2" Fuel Level Gauge (E-1/2-F)
Perimeter-lighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2" - Hole Size: 2.0625" (53mm)
Specifications:
- Anti-scratch glass lens
- Perimeter lighted back light
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N GP9368
*Sold as an Individual
**Gauge Cover not Included
Chesapeake Black SS 2 Fuel Level Gauge (E-1 / 2-F) 2-hole size: 2.0625 (53mm) The fuel level gauge sends low ampere current through the level gauge to the ground...
SKU: NVN-54628
MPN: F13701
UPC: 759266137011
Technical specifications
| Brand | Faria Beede Instruments |
| Model | Faria Chesapeake Black 2" Fuel Level Gauge (E-1/2-F) |
| SKU / MFR# | 54628 |
