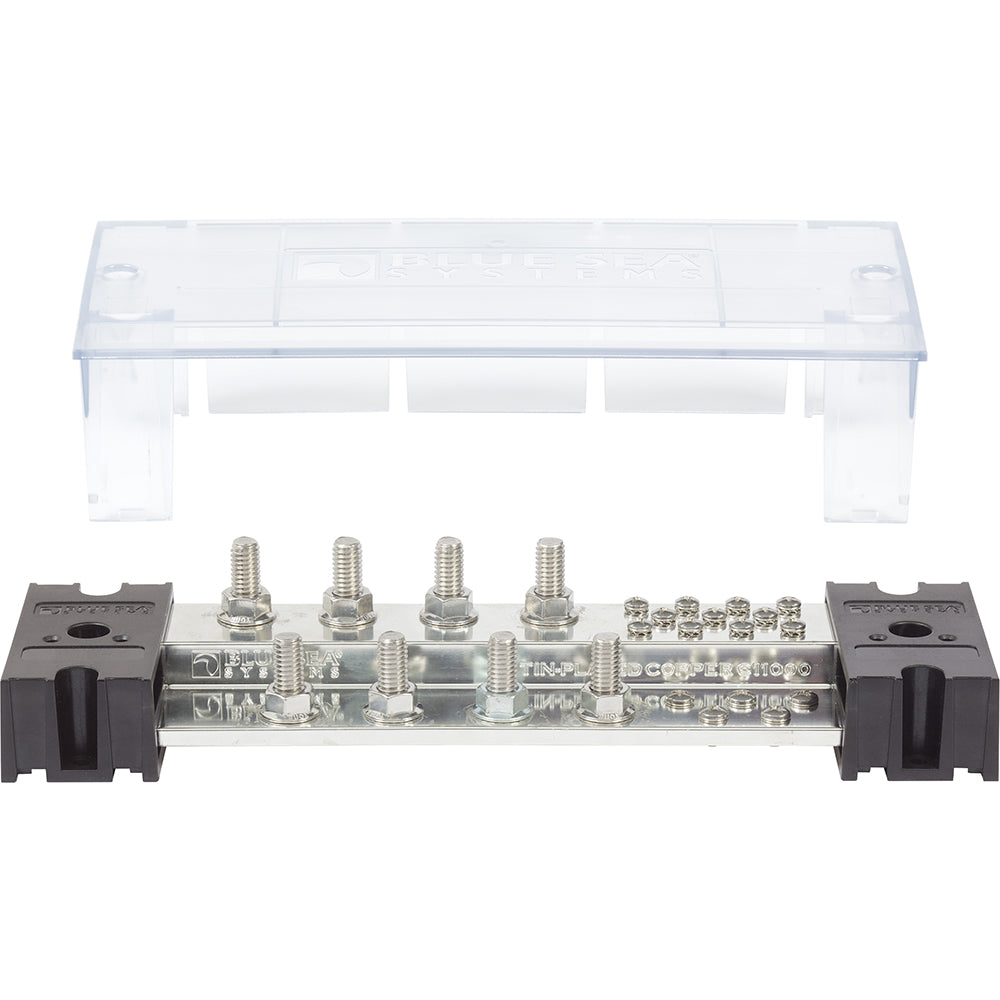

Blue Sea PowerBar 1000 - 8 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Ampere busbar with various size studs and screws to connect conductors and fuse blocks.

Blue Sea 1990BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 8
• Voltage Rating: 150 Volt
• Ampere: 1000 Amp
• Length (IN): 11.82 Inch
• Width (IN): 4.59 Inch
• Material: Copper Bus
• With Insulated Cover: Yes

Blue Sea 1990BSS Features & Benefits

• 1,000 Ampere Busbar For Large Complex Wiring Systems
• Tin Plated Pure Electrical Copper For Maximum Conductivity
• Stepped Bus Design Offers Two Elevations For Conductors Which Doubles The Density Of The Wire Loom Compared To Traditional Bus Bars
• Busbar And Fuse Block Elevations Match Common Fuse Blocks Allowing For Multiple Fuse Block Attachment, Eliminating The Need For Connecting Cables
• One-Piece Serrated Flange Nuts Ensure Correct And Secure Connections
• Stainless Steel 8 To 32 Screws With Captive Lock Washers For Securing Smaller Gauge Wires
• Bi-Directional Busbar End Caps Allow The Ganging Of Additional Busbars
• Snap On Insulating Cover Meets ABYC And USCG Requirements And Features Label Recess
• No Supplier Warranty

Blue Sea 1990BSS Technical Bulletins

• 1990.pdf

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 8

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 3/8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Power Bar 1000-8 3/8 terminal with overlay The complex wiring system requires a single point to combine large and small conductors. Power Bar 1000 can provide 1,000 Amp...
SKU: NVN-54613
MPN: 1990
UPC: 632085019907
