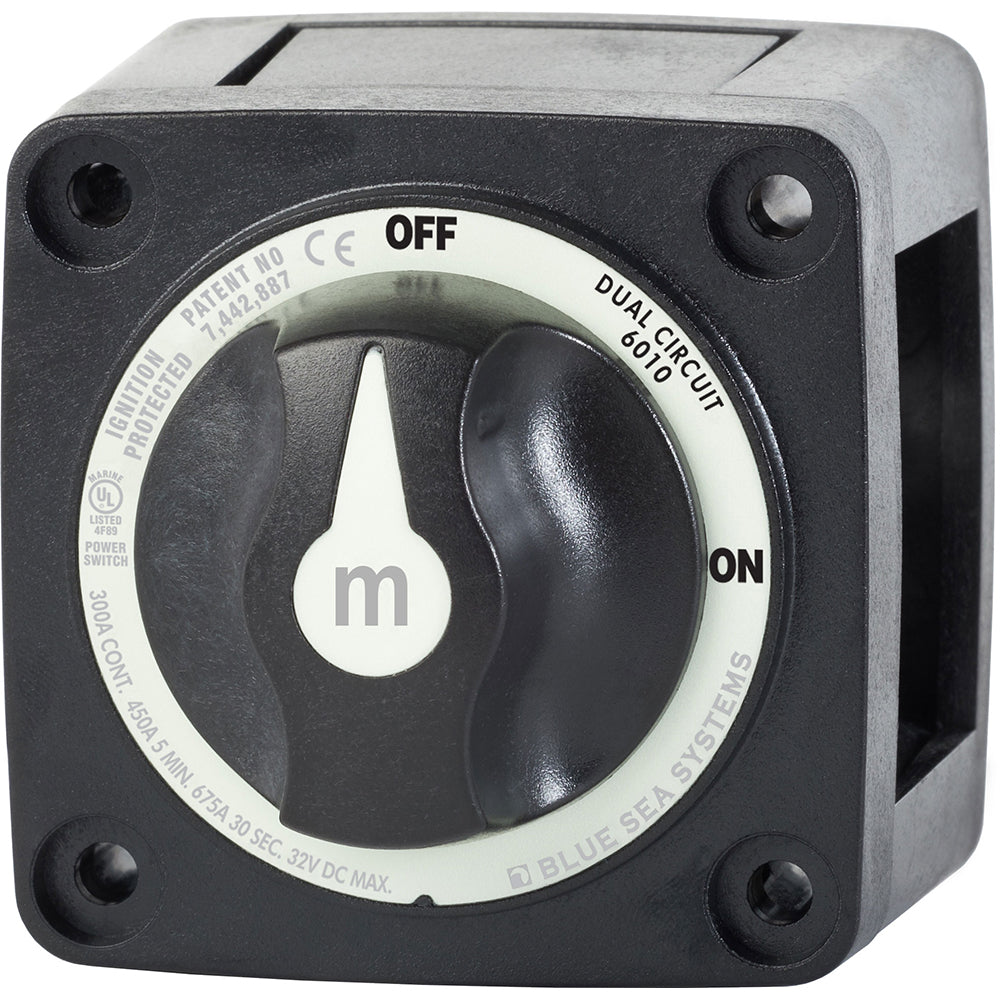

Blue Sea 3010200 Battery Switch Dual Circuit - Black

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"These Blue Sea Systems dual circuit battery switches offer 300 Amps for outboards and small gasoline or diesel engines. These switches simultaneously switch two isolated battery banks or circuits. They feature tin-plated copper studs for maximum conductivity and corrosion resistance. The studs accept 3\/8 Inch (M10) ring terminals and have a 7\/8 Inch stud length (22 mm) that can accept multiple cable terminals. Blue Sea Systems one-piece terminal stud design never loosens over time. One-piece stainless flange nuts ensure safe and secure connections. Isolating cover with three snap-in side pieces protects rear contacts and allows easy wire access in any direction. Case design allows surface, rear or front panel mounting options."
SKU: NVN-49218
MPN: 6010200
UPC: 632085601027
