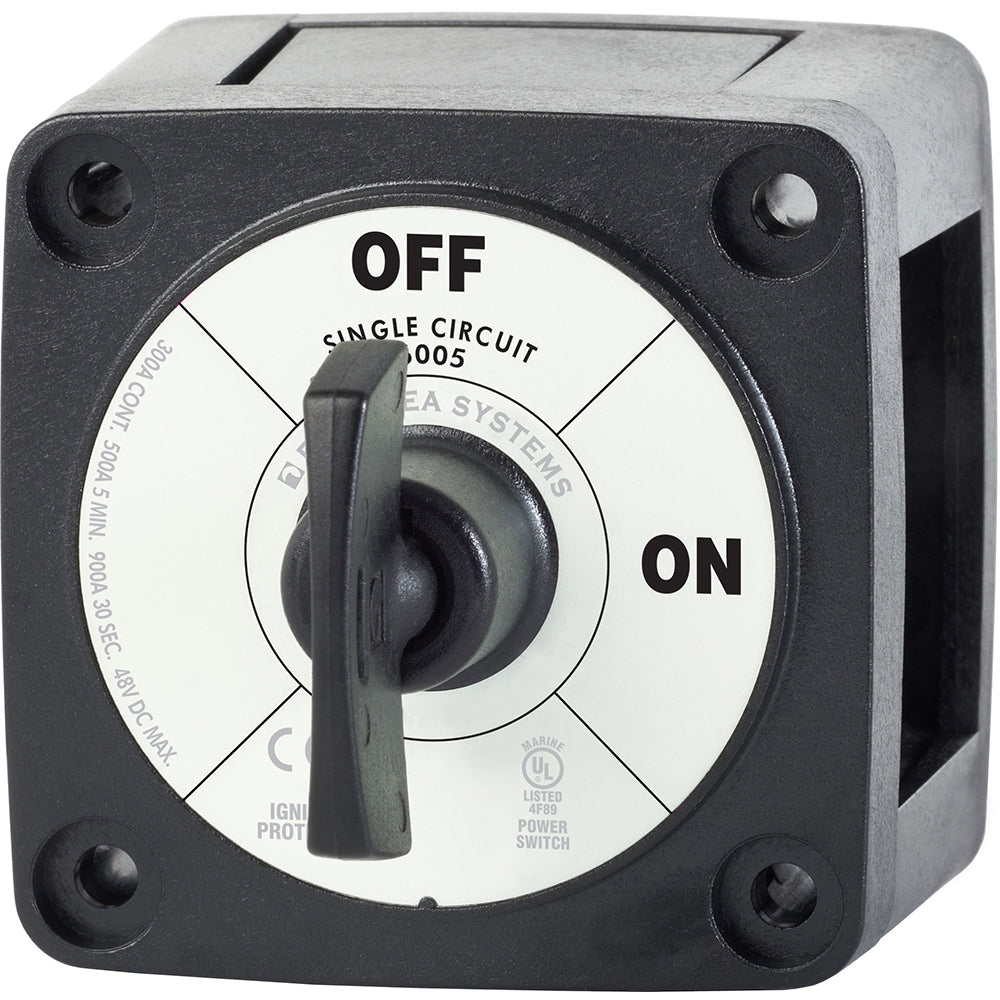

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6005200BSS Attributes

• Type: Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Surge Ampere Rating (A): 500 Amp
• Base Diameter (IN): 2-5/8 Inch
• Installation Type: Bolt-On

Blue Sea 6005200BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6005200BSS Installation Instructions

• 6005_web_version.pdf

Blue Sea 6005200BSS Technical Bulletins

• M_Switch_Key.pdf

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

M series mini switch battery switch with key-black switches a single battery to a load group protected by a single ignition, which can be installed on gasoline-powered boats. ...
SKU: NVN-49217
MPN: 6005200
UPC: 632085600525
