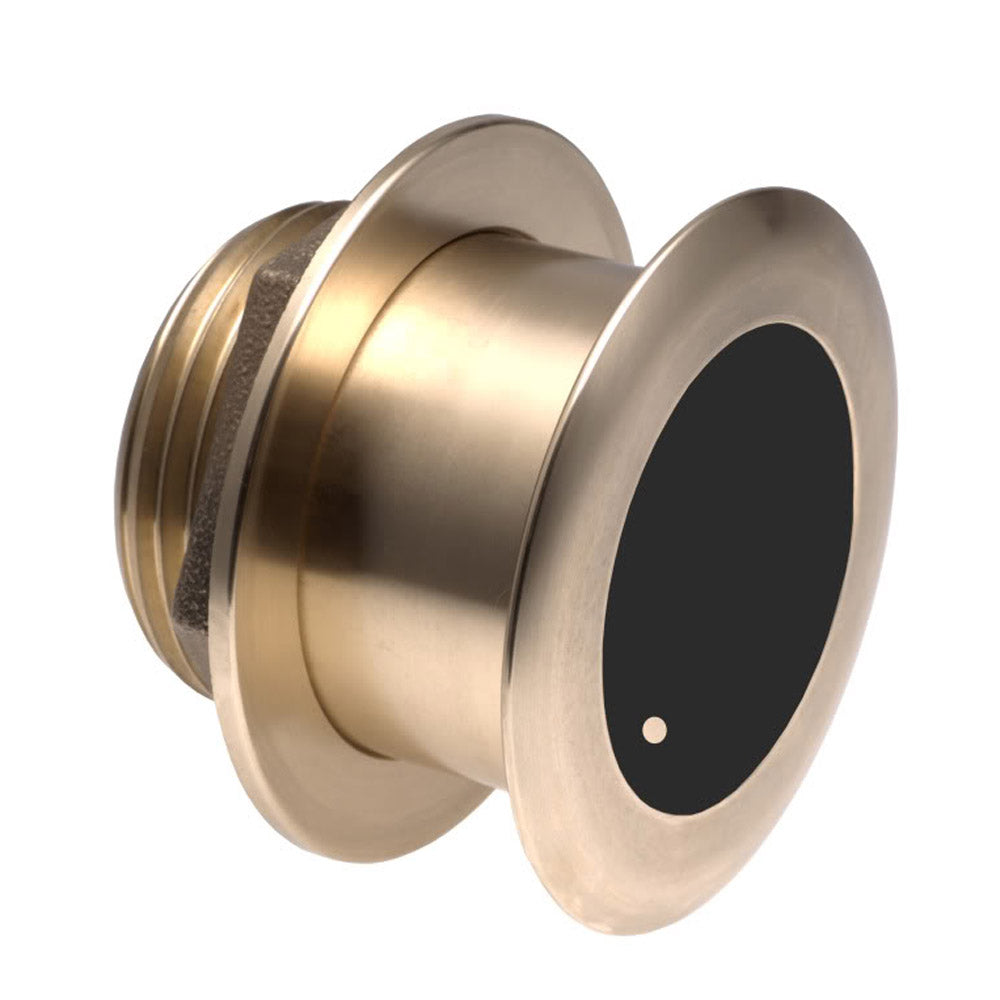

Garmin B175L Bronze 12° Thru-Hull Transducer - 1kW, 8-Pin
Garmin B175L Bronze 12° Thru-Hull Transducer - 1kW, 8-Pin — Product description
Discover the power of precise underwater detection with this high-performance thru-hull transducer designed for serious anglers and boaters chasing big game in deep waters. Engineered with a low-profile bronze housing, it mounts flush to your hull, extending just a fraction of an inch below the surface—perfect for trailering without worry over bunks or rollers scraping it up.
What sets this model apart is its innovative 12-degree tilted element. This smart design automatically compensates for your boat's deadrise angle, from 8 to 16 degrees, skipping the hassle and extra cost of custom fairing blocks. Whether you're running a sleek fiberglass racer or a sturdy wooden cruiser, installation stays straightforward and effective.
Superior Deep-Water Performance
Operating at a robust 1kW power level across a wide 40-60 kHz frequency range, this transducer excels at penetrating depths up to 3,000 feet. The expansive 16-25 degree beam width at -3dB captures vast swaths of the water column, revealing structure, bait balls, and trophy fish lurking far below.
- CHIRP-Ready Low Frequency: Tuned for long-range scanning, ideal for offshore trolling or canyon hunting where every foot counts.
- Integrated Temperature Sensor: Tracks water temp changes to pinpoint thermoclines and fish-holding zones.
- Max Depth Capability: Reliable returns from 3,000 feet, outpacing many standard setups.
Built for Real-World Boating Demands
Crafted from corrosion-resistant bronze, this 8-pin transducer laughs off saltwater abuse season after season. The 39-foot cable gives you flexible routing options during install, reaching from bow-mounted plotters to stern electronics without strain.
| Frequency (kHz) | Power | Beam Width (°) | Max Depth (ft) | Sensors | Pins | Deadrise Angles |
|---|---|---|---|---|---|---|
| 40-60 | 1kW | 16-25 | 3,000 | Depth + Temp | 8 | 8-16° |
Effortless Installation and Compatibility
Thru-hull mounting keeps wiring clean and performance optimal, with detailed instructions included to guide you through. Pair it seamlessly with popular marine multifunction displays supporting 8-pin transducers—no adapters needed. For hulls up to 16-degree deadrise, the pre-tilted ceramic ensures a dead-on beam perpendicular to the waterline, maximizing target separation and bottom tracking.
Why Boaters Trust This Setup
Skip the guesswork on fairings or pod mounts that drag fuel efficiency. This low-protrusion design hugs the hull for minimal drag, while the bronze build handles the pounding of bluewater runs. Anglers report crystal-clear images of wrecks and reefs at extreme depths, turning ordinary outings into record hauls.
Frequently Asked Questions
What hull types work best with this thru-hull transducer?
It's optimized for fiberglass and wood hulls with deadrises between 8 and 16 degrees. The tilted element adapts to most planing hulls without additional fairings.
Does it support temperature sensing?
Yes, it includes a built-in temperature sensor, delivering real-time water temp data alongside depth readings for better fishing strategies.
How far below the hull does it protrude?
Less than 1/4 inch, making it trailering-friendly and resistant to damage from bunks or rollers.
What's the cable length for installation?
A generous 39 feet provides plenty of reach for routing to your display unit.
Can it handle deep offshore fishing?
Absolutely—rated for 3,000 feet at 1kW power, with a 40-60 kHz range perfect for probing canyons and drop-offs.
Is a fairing block required?
No, the internal 12-degree tilt eliminates the need, simplifying setup on angled hulls.
What connector does it use?
An 8-pin design plugs directly into compatible marine electronics for plug-and-play convenience.
Upgrade your sonar game and stay ahead of the fish with reliable, deep-penetrating performance you can count on trip after trip.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101193821 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 2000 Feet
- Power Rating: 1000 Watt
- Frequency Range: 40-60 kHz
- Supported Angle: 8 To 16 Degree Deadrise
- Cable Length: 39 Feet
Garmin 101193821 Features & Benefits
- Step Up To 1 Kilo Watt Without A Fairing With This Flush-Mounted Bronze Housing That Protrudes Less Than 1/4 Inch Outside The Hull And Can Sit On The Trailer Rollers/Bunks Without Damage
- Tilted Element Inside The Transducer Accommodates All Hull Deadrises And Eliminates The Need For A Fairing Block
- Excellent Choice For Fiberglass And Wood Hulls
- 8-Pin Transducer Has A Depth Of 2,000 Feet
- Transducer Kit Comes With Installation Instructions
- Transducer Supports A 8 To 16 Degree Deadrise
- Limited 1 Year Warranty
Garmin 101193821 Warranties
Airmar B175L
w/12° Tilt
1kW
Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 8-15° Deadrise
This flush-mounted bronze shell can increase power by 1 kW without a fairing, the shell protrudes less than 1/4 inch outside the hull, and can sit on the trailer wheel/box without the need to install a fairing .
SKU: NVN-47868
MPN: 010-11938-21
UPC: 753759995720
Technical specifications
| Brand | Garmin |
| Model | Garmin B175L Bronze 12° Thru-Hull Transducer - 1kW, 8-Pin |
| SKU / MFR# | 47868 |
