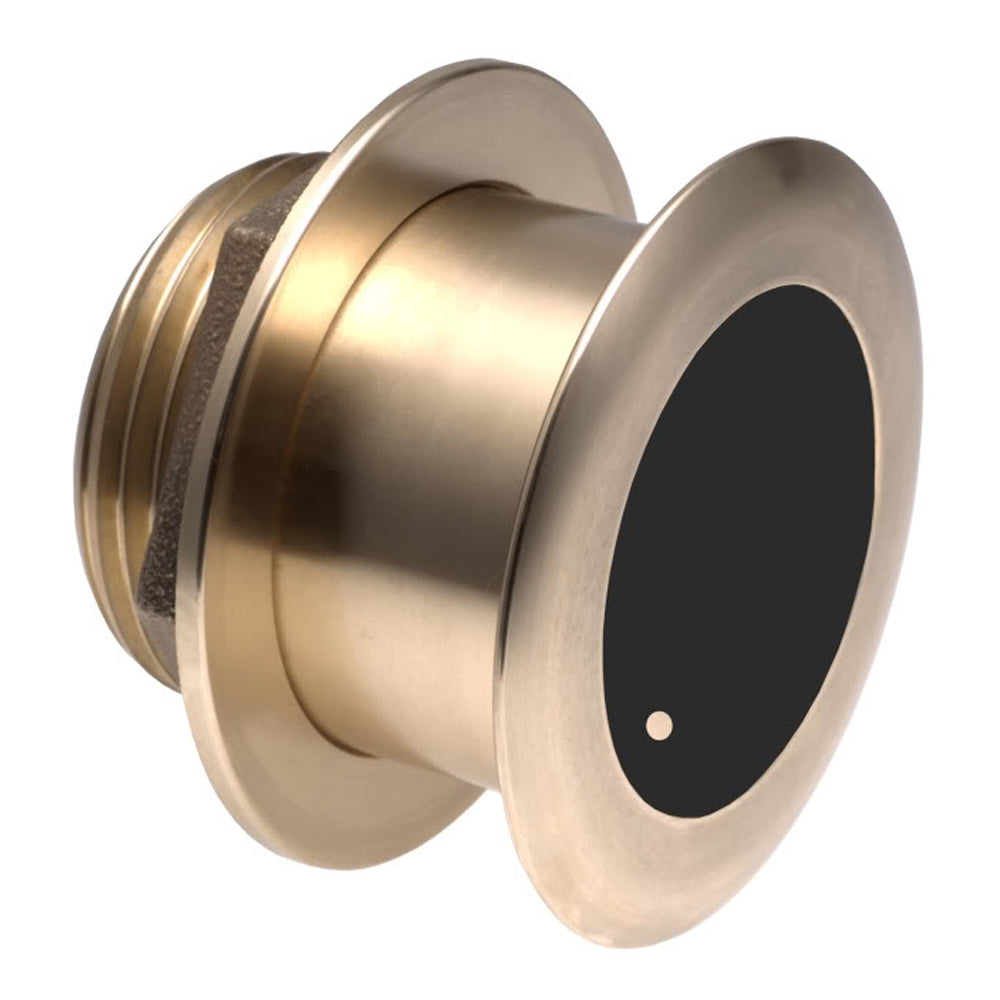

Garmin B164 1kW Tilted Element 20° - 8-Pin
Garmin B164 1kW Tilted Element 20° - 8-Pin — Product description
Upgrade your marine electronics setup with the Garmin B164 1kW Tilted Element transducer, a robust bronze thru-hull mount designed for serious anglers and boaters tackling deeper waters. Engineered with a precise 20-degree tilt, this 8-pin powerhouse delivers crystal-clear depth readings up to 1,800 feet and reliable water temperature data, even at high speeds. Ideal for hulls with 16- to 24-degree deadrise, it ensures optimal performance on fiberglass or wood vessels without compromising hull integrity.
Why Boaters Trust the Garmin B164 for Superior Sonar Performance
This transducer stands out in demanding marine environments, offering a blend of raw power and smart design. Its 1,000-watt output paired with dual-frequency 50/200 kHz operation provides versatile coverage: wide 20-degree beam at 50 kHz for broad searches in deep water, and narrow 6-degree beam at 200 kHz for pinpointing fish and structure close by.
- High-Speed Reliability: Bronze construction and flush-mounted housing (protruding less than 1/4 inch) handle rough seas and trailering without damage, maintaining signal integrity above 30 knots.
- Deep Water Capability: Track targets from 1,200 to 1,800 feet, perfect for offshore adventures where lesser units falter.
- Seamless Integration: The 39-foot cable and 8-pin connector plug directly into compatible Garmin sounders and chartplotters, simplifying your setup.
- Versatile Hull Fit: 20-degree tilted element compensates for hull angle, delivering undistorted bottom contours and fish arches on boats with moderate deadrise.
Whether you're chasing trophy fish in the Gulf Stream or mapping wrecks, this transducer transforms raw sonar data into actionable insights, helping you fish smarter and safer.
Effortless Installation for Lasting Results
Installing the B164 is straightforward for DIYers or pros. Its 3-3/4-inch bronze shaft threads securely into the hull, with a low-profile design that sits flush against trailer bunks. Key steps include:
- Drill a precise hole matching the shaft diameter, using the included template for accuracy.
- Apply marine sealant around the threads for a watertight seal.
- Route the 39-foot cable through existing conduits to your Garmin display, avoiding sharp bends.
- Calibrate frequencies and gain settings post-install for peak sensitivity.
Pro tip: Fair the housing with epoxy filler if your hull has uneven contours, ensuring parallel alignment to the waterline for maximum beam efficiency. This setup minimizes air entrainment and shadow zones, common pitfalls with poorly mounted thru-hulls.
Maximize Your Garmin B164's Potential On the Water
To get the most from your investment, pair it with Garmin's advanced CHIRP capabilities where available, unlocking even finer target resolution. In shallow bays, switch to 200 kHz for schooling fish; drop to 50 kHz for canyon edges. Users report exceptional separation of bait balls from predators, reducing guesswork during live bait trolling.
For cold-water species like halibut or tuna, the integrated temperature sensor tracks thermoclines, revealing where fish stage. Maintain performance by annually inspecting the bronze face for marine growth— a quick vinegar soak restores it like new.
Frequently Asked Questions
What hull types is the Garmin B164 20-degree tilted transducer best suited for?
It's optimized for fiberglass and wood hulls with 16- to 24-degree deadrise angles, ensuring accurate readings without cavitation.
Does the Garmin B164 provide temperature readings?
Yes, it includes a built-in temperature sensor for real-time water temp data, essential for locating fish-holding structures.
What's the maximum depth range for this 1kW transducer?
It reliably performs from 1,200 to 1,800 feet, depending on conditions, making it ideal for offshore fishing.
Is the B164 compatible with all Garmin fishfinders?
It connects via 8-pin interface to most Garmin chartplotters and sounders supporting 50/200 kHz frequencies.
How does the tilted element improve performance?
The 20-degree tilt aligns the ceramic element perpendicular to the water flow, reducing distortion and enhancing bottom tracking at speed.
Can I use this transducer on a trailerable boat?
Absolutely—its flush housing protrudes minimally, preventing damage from rollers or bunks during trailering.
What frequencies does the Garmin B164 operate on?
Dual 50 kHz (20-degree beam) and 200 kHz (6-degree beam) for versatile shallow-to-deep scanning.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101101020 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 1200 To 1800 Feet
- Power Rating: 1000 Watt
- Frequency Range: 50/200 kHz
- Supported Angle: 16 To 24 Degree Deadrise
- Cable Length: 39 Feet
Garmin 101101020 Features & Benefits
- Bronze Thru-Hull Mount Transducer Performs Well At High Speeds
- Excellent Choice For Fiberglass And Wood Hulls
- Flush-Mounted Housing Protrudes Less Than A Quarter Of An Inch Outside The Hull And Can Sit On Trailer Rollers/Bunks Without Damage
- 1000 Watt 8-Pin Transducer Has A Depth Of 800 To 1,200 Feet
- Transducer Kit Comes With Installation Instructions
- Transducer Supports A 16 To 24 Degree Deadrise
- Limited 1 Year Warranty
Garmin 101101020 Warranties
B164 1kW Tilted Element 20° - 8-Pin
Garmin's bronze, thru-hull mount transducer with 20° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24° deadrise angle.
The B164 bronze penetrating transducer is the first choice for fishermen looking for better depth readings and more accurate fish detection. Embedded installation design will not cause...
SKU: NVN-43444
MPN: 010-11010-20
UPC: 753759971908
