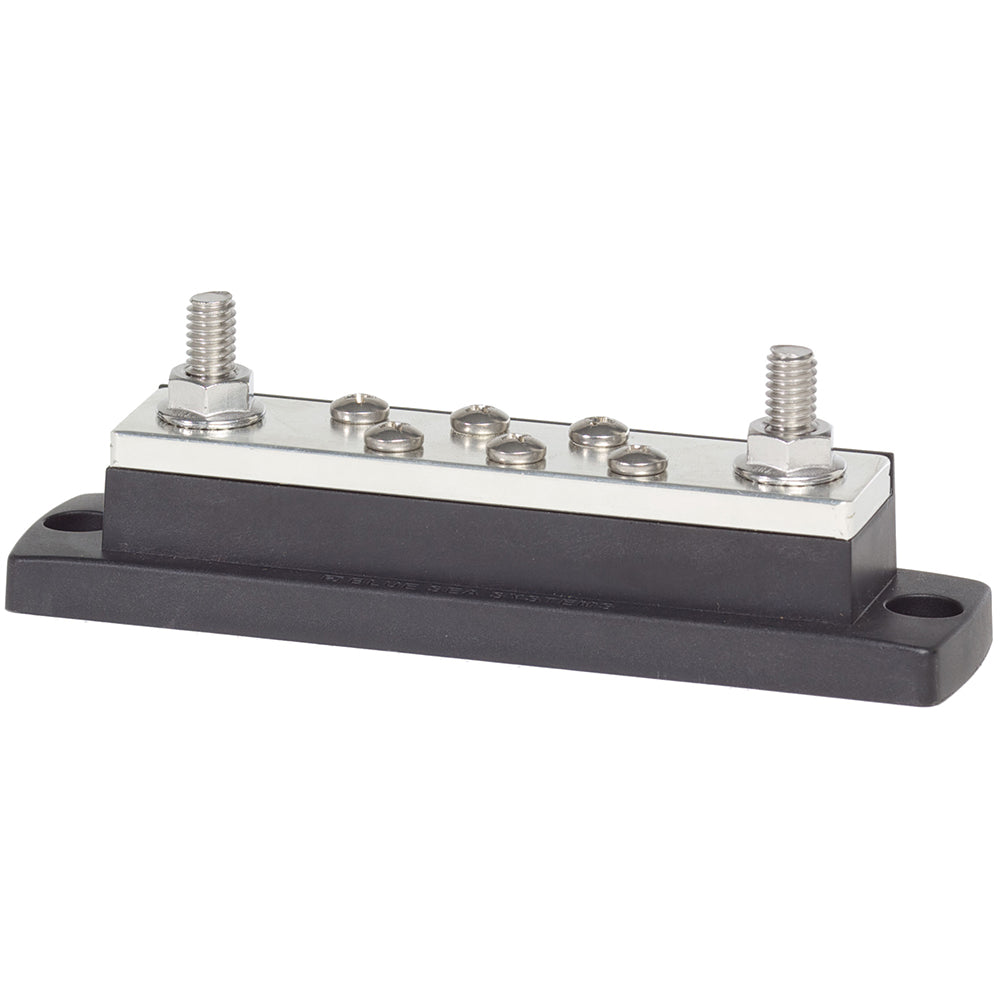

Blue Sea 2128 Maxibus 6 x #10-24(Screws) w/2 x ⁵⁄₁₆"(Studs)

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 2128BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 2
• Voltage Rating: 48 Volt DC/ 300 Volt AC
• Ampere: 250 Amp
• Length (IN): 5-7/8 Inch
• Width (IN): 1.91 Inch
• Material: Plastic Base With Tin-Plated Copper Bus
• With Insulated Cover: No

Blue Sea 2128BSS Features & Benefits

• Used To Consolidate Multiple Wires Or Feed Multiple Circuits
• Insert Molded Stainless Steel Studs Eliminate Need For Securing Nut And Allow High Torquing For Excellent Electrical Contact
• Raised Bus Provides Easy Access To Multiple Wires On A Single Screw Or Stud
• UL 94-V0 Rated Base Material Resists High Heat
• Recessed Mounting Holes Eliminate Accidental Shorts To Aluminum And Steel Mounting Surfaces
• No Supplier Warranty

Blue Sea 2128BSS Technical Bulletins

• 2128_BUL.pdf

2 x ⁵⁄₁₆"- 18 Stud Terminal
6 x#10-24 Terminal Screws
Part# 2128

Specifications

Continuous Amperage 250 Amperes AC/DC
Voltage Rating 300 Volts AC Maximum / 48 Volts DC Maximum
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Base Material Reinforced Polycarbonate
Cover Material ABS

CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

With the help of the 6-screw terminal bus, your AC or DC wires have a good shape. This Blue Sea Systems bus is an industry standard and an excellent way to organize and distribute power. ...
SKU: NVN-42722
MPN: 2128-BSS
UPC: 632085021283
