Blue Sea Systems

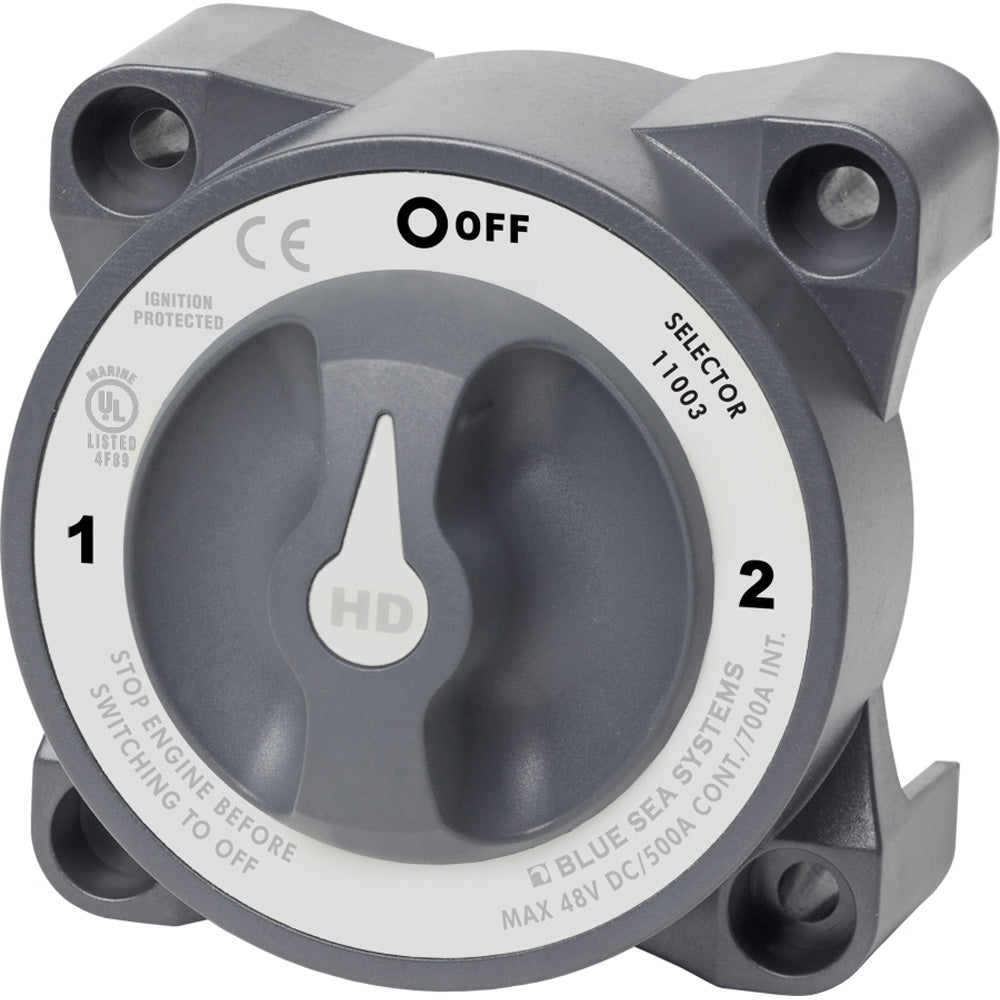

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position
SKU: 34970 · UPC: 632085110031 · MPN: 11003
★★★★★
4.7 · 0 reviews
Authorized dealer45% off
$85.39
$155.99Save $70.60
or 4 payments of $21.34 with Affirm
In stock — Ships Monday
SAME-DAY SHIPPING · 14:23 EST
Order now, ships Monday
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$85.39
02 · Overview
Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position — Product description
11003
Features:
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables
- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
"Meets American Boat and Yacht Council (ABYC) requirements for battery switches. Ignition protected. Safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. Accepts two 4 0 AWG (95mm) battery cables M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 0.5\" and M12 ring terminals 7\/8\" (22.22 mm) stud length to accept multiple cable terminals. Tactile textures indicate knob position by feel only. Case design allows surface or rear panel mounting."
SKU: NVN-34970
MPN: 11003
UPC: 632085110031
03 · The numbers
Technical specifications
| Brand | Blue Sea Systems |
| Model | Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position |
| SKU / MFR# | 34970 |
Set product metafields under specs.* to populate this table.
04 · Before you buy
Frequently asked questions
No questions yet. Got one? Drop us a line.
