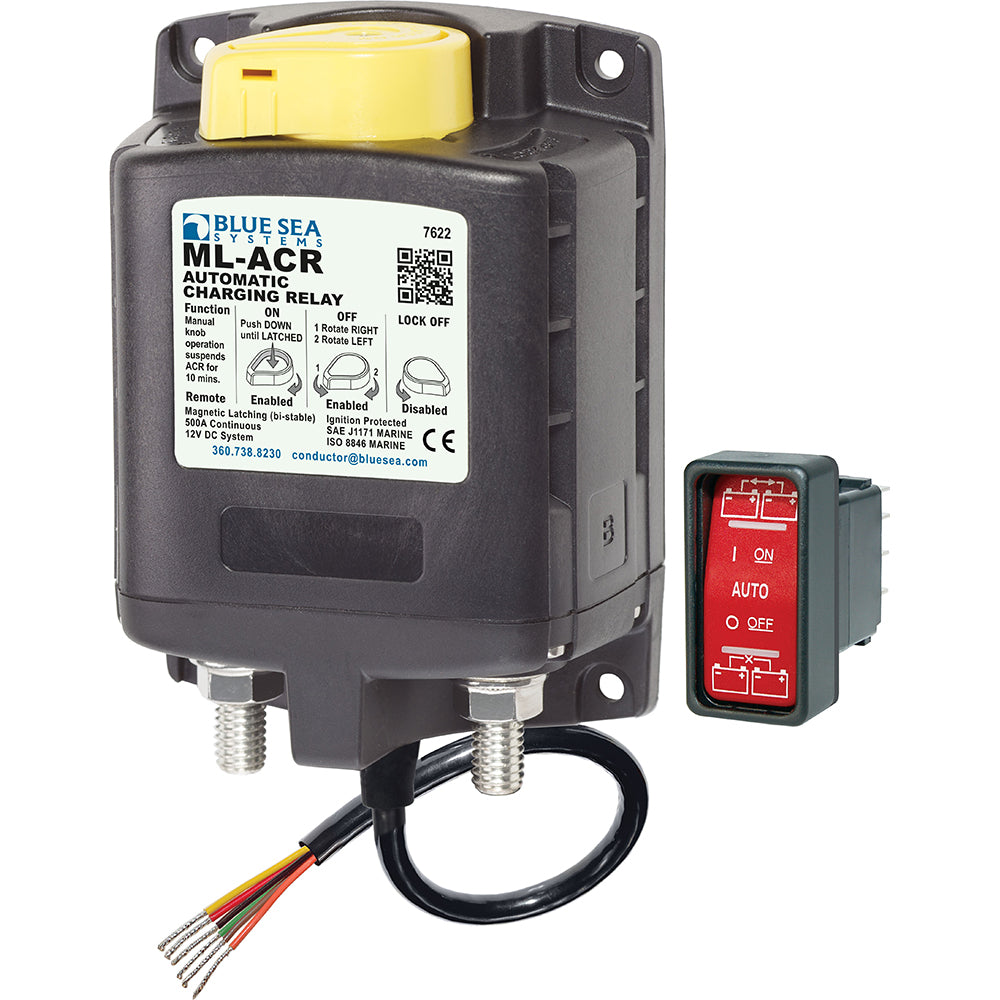

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

500 Ampere Magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.

Blue Sea 7622BSS Attributes

• Operating Voltage: 12 Volt
• Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent

Blue Sea 7622BSS Features & Benefits

• Automatically Manages The Charging Of Two Large Battery Banks
• Allows Paralleling Of Battery Banks For Emergency Starting
• 500 Ampere Continuous Rating To Support High-Output Alternators
• Magnetic Latch (ML) - ACR Draws Very Low Current In The "ON" Or "OFF" States, And Draws Moderate Current For Very Short Time When Changing State
• Dual Sensing- Senses Charge On Both Battery Banks
• Start Isolation (SI)- Can Be Configured For Temporary Isolation Of House Loads From Engine Circuit During Engine Cranking To Protect Sensitive Electronics
• Engine Isolation (EI)- Can Be Configured For Isolation Of Two Engines While Both Are Running To Protect Engine Electronics And Maximize Alternator Output Senses Charging On Two Battery Banks
• LED Output To Remotely Indicate When Batteries Are Combined, Isolated, In Voltage Lockout, Or In Start Or Engine Isolation
• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance/Silver Alloy Contacts Provide High Reliability For Switching Live Load
• No Supplier Warranty

Blue Sea 7622BSS Installation Instructions

• 990180180-005.pdf

7622

Manual Control: Yes
Coil Voltage: 12v

Features:

• Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

• Includes ML-Series Remote Control Contura Switch PN 2146

• 500 Ampere continuous rating

• Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state

• Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

• Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output

• Senses charging on two battery banks

• Supports high-output alternators up to 500 Amps

• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit protection

• Silver alloy contacts provide high reliability for switching live loads
