Lenco 12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit 12V
Lenco 12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit 12V — Product description
STANDARD PERFORMANCE TRIM TABSElectro-Polished - 12 Gauge Blades / 12-Volt Actuators Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades.
Lenco 15037101 Attributes
- Tab Size: 12 Inch Length x 12 Inch Width
- Material: Stainless Steel
Lenco 15037101 Features & Benefits
- 12 Gauge - Stainless Steel Blades
- Fast response electric actuators
- Fully submersible actuators
- Plug and Play waterproof connectors
- Switch Kit sold seperately
- Limited 3 year warranty
Lenco 15037101 Installation Instructions
Lenco 15037101 Technical Bulletins
12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12V
Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades
Kit Contents:

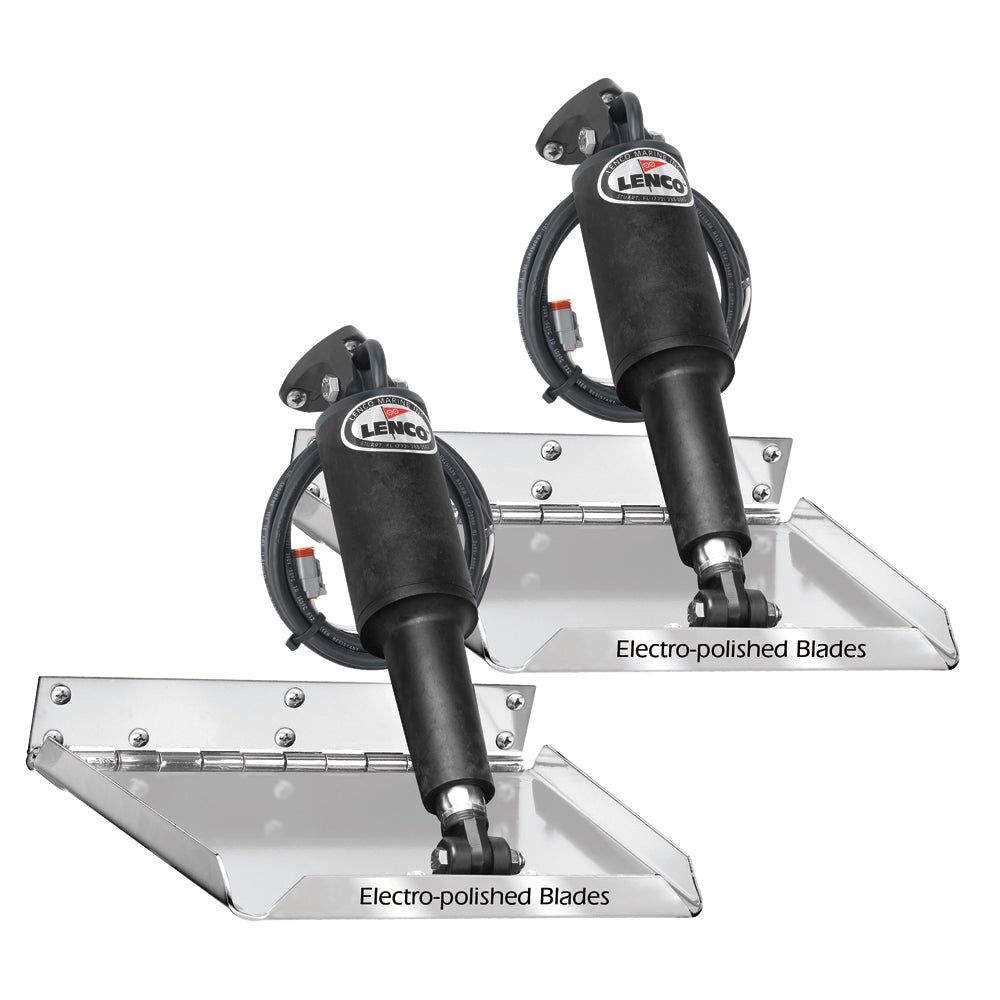

- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (#116) upper mounting bracket with gland seal
- 2 each of #50014-001 (#119) lower mounting bracket
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
Specifications:
- Suggested Boat Length: 18' to 32'
- Length of Tab: 12"
- Width of Tab: 12"
- Minimum Transom Height: 11"
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
These are made by Lenco's professional product experts through the use of reliable and reliable materials, and can provide you with the...
SKU: NVN-29250
MPN: 15037-101
UPC: 874847004596
Technical specifications
| Brand | Lenco Marine |
| Model | Lenco 12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit 12V |
| SKU / MFR# | 29250 |
