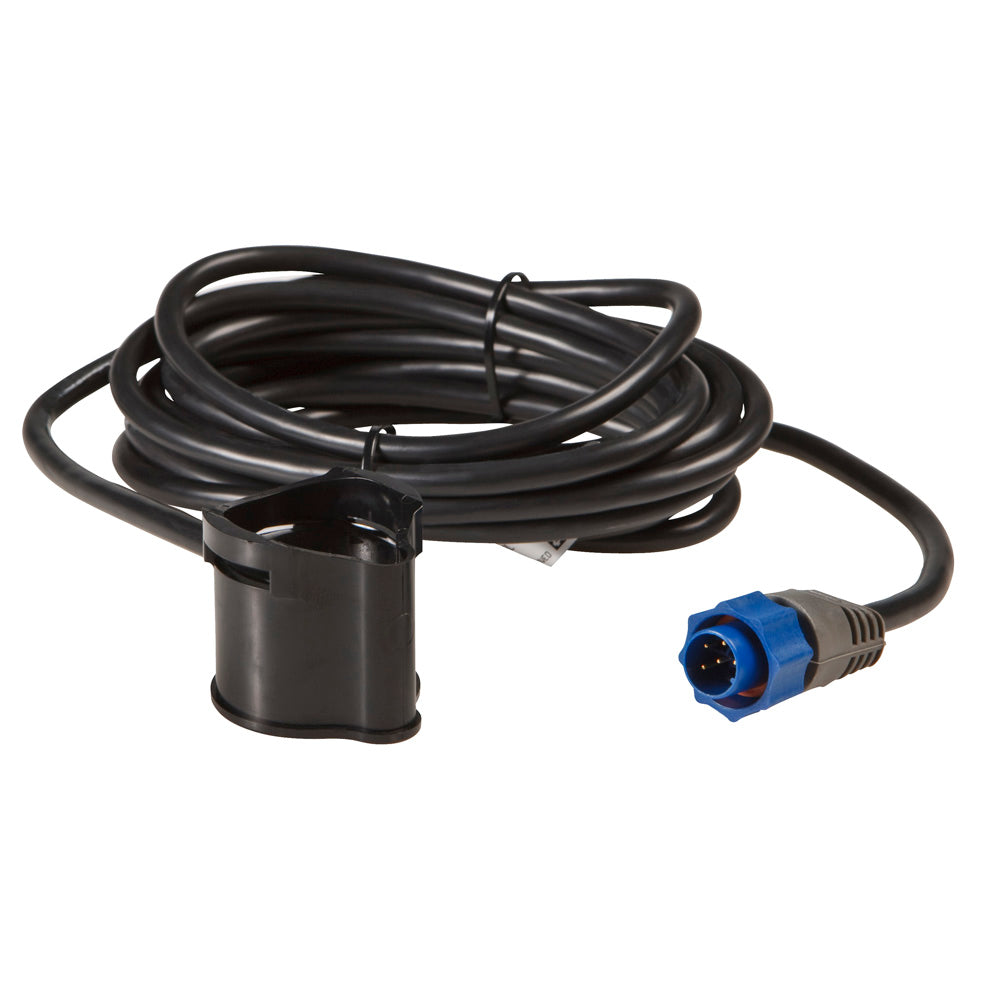

Lowrance Trolling Motor Mount Transducer
Lowrance Trolling Motor Mount Transducer — Product description
Enhance Your Fishing Setup with Precision Depth and Temperature Readings
Picture this: you're gliding across shallow waters, trolling for bass or walleye, and your fishfinder delivers crystal-clear bottom details without missing a beat. The Lowrance PDT-WBL transducer makes that a reality. Designed specifically for mounting on your trolling motor, this pod-style unit combines reliable depth sonar with a built-in temperature sensor, giving you the edge to locate structure, track baitfish, and adjust your tactics on the fly.
Unlike bulkier setups, its compact puck design hugs the hull or motor cleanly, minimizing drag and maximizing performance during long outings. Anglers swear by it for its ability to punch through murky shallows where bigger frequencies fall short.
Standout Features That Deliver Real-World Results
- 200kHz Frequency with 20° Beam Angle: Ideal for shallow to mid-depth waters (up to 700 feet in optimal conditions), offering focused coverage for spotting fish-holding ledges, drop-offs, and weed edges without the wide scatter of lower frequencies.
- Integrated Temperature Sensor: Monitors water temp changes to pinpoint thermoclines—key for finding active fish schools in stratified lakes or rivers.
- Versatile Mounting Options: Secure it directly to your trolling motor shaft or use the included epoxy for in-hull puck installation on smoother surfaces like aluminum boats or kayaks.
- 12-Foot Cable with Blue Connector: Plenty of length for clean routing, plugs seamlessly into your Lowrance unit for hassle-free setup.
- Rugged Build: Marine-grade materials withstand splashes, vibrations, and abuse from aggressive trolling sessions.
Seamless Integration with Your Lowrance Gear
This transducer pairs effortlessly with a wide range of Lowrance chartplotters and fishfinders, ensuring you get accurate data no matter your setup. It's a go-to upgrade for models like the HDS series (5, 7, 8, 10), LCX lineup (17M, 20C, 25C, 26C HD, and more), LMS units (332C, 334C iGPS, 480, 520C, 522C iGPS), and classics such as X52, X102C, X125, X135, plus X-510C.
Whether you're running a compact HDS-5x for kayak fishing or a full-featured LCX-38C HD on your bass boat, it slots right in for enhanced sonar performance.
Easy Installation for Quick Time on the Water
Getting this transducer up and running takes minutes, not hours. For trolling motor mounts, zip-tie or clamp it securely to the shaft just below the waterline—aim for a downward angle to catch the beam optimally. In-hull fans, sand the install spot smooth, apply the provided epoxy generously, and let it cure fully before launch.
Pro tip: Test in a bucket of water first to confirm signal strength and calibrate your unit's settings for peak sensitivity. Avoid air pockets during hull installs by working out bubbles and using a release agent on tools.
Why It Excels in Everyday Fishing Scenarios
In real use, the narrow 20° beam shines for precision—think marking a single stump loaded with crappie or threading through flooded timber. The temp sensor adds another layer, alerting you to warm inflows where predator fish ambush prey. Users report fewer false readings in choppy conditions compared to generic pods, thanks to Lowrance's tuned electronics.
Pair it with StructureScan or CHIRP-enabled units for even richer detail, turning your console into a fish-magnet command center.
Keep It Performing Like New
Rinse with fresh water after saltwater trips, inspect the face for nicks or growth, and store dry during off-seasons. A quick wipe-down prevents marine buildup that can dull your sonar returns.
Frequently Asked Questions
What is the frequency and beam angle of the PDT-WBL transducer?
It operates at 200kHz with a precise 20-degree beam angle, perfect for detailed shallow-water scanning.
Does this transducer include a temperature sensor?
Yes, it has a built-in temperature sensor to track water conditions and locate thermal edges.
Can I use it for in-hull mounting?
Absolutely—includes epoxy for secure in-hull puck installation on fiberglass or aluminum hulls.
What cable length comes with it?
A 12-foot cable with a blue connector provides ample reach for most boat configurations.
Is it compatible with HDS series units?
Yes, works great with HDS-5, HDS-5x, HDS-7, HDS-8, HDS-10, and many others.
How deep can it read?
Effective up to around 700 feet in ideal conditions, excelling in shallow waters under 100 feet.
What's the best way to mount it on a trolling motor?
Attach to the motor shaft below the waterline with zip ties or clamps, angled slightly downward for optimal beam coverage.
Trolling motor-mount, pod type with built-in temperature sensor.
Works with: LCX-110C, LCX-111C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LMS-332C, LMS-334C iGPS, LMS-480, X102C, X125, X135, X52
Lowrance PDT-WBL towed motor sensor will help you easily catch fish. Lowrance sensor is specially designed for nautical use. It can be used with many models,...
SKU: NVN-26176
MPN: 106-74
UPC: 042194524061
Technical specifications
| Brand | Lowrance |
| Model | Lowrance Trolling Motor Mount Transducer |
| SKU / MFR# | 26176 |
