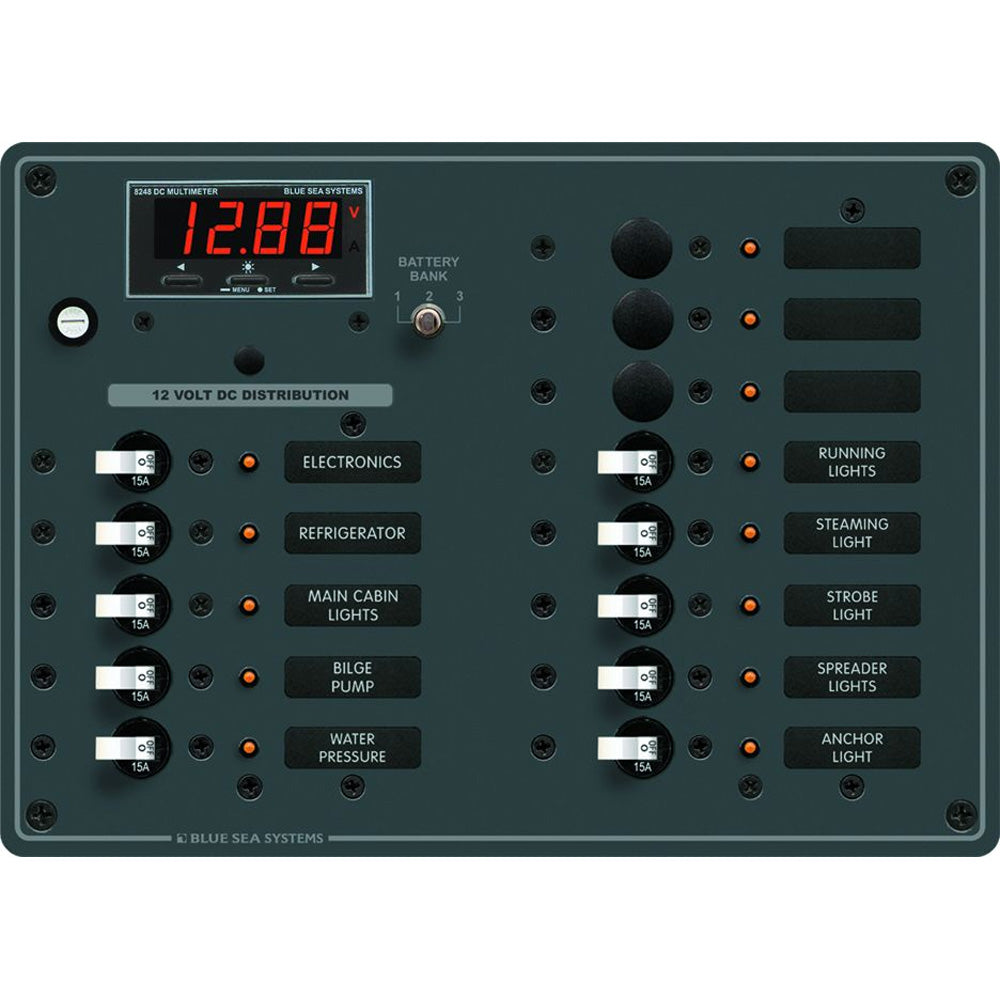

Blue Sea 8403 DC Panel 13 Position w/ Multimeter

Panel DC 13 Position w/ Multimeter

(10) 15A Single Pole Circuit Breaker

(1) 8248 DC Digital Multimeter w/ Alarm

• Voltage 12/24v

• Amperage 100A

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Panel DC 13 Position with Multimeter (10) 15A Single Pole Circuit Breaker (1) 8248 DC Digital Multimeter with Alarm Voltage 12\/24v Amperage 100A . All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters) All circuit label positions are backlit on standard panels. No kit required \"ON\" indicating LEDs installed in all circuit positions. MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance Two-part polyurethane slate gray finish Heavy 1\/8\" aluminum 5052 alloy .Industry standard height and width Countersunk mounting holes throughout."
SKU: NVN-20828
MPN: 8403
UPC: 632085084035
