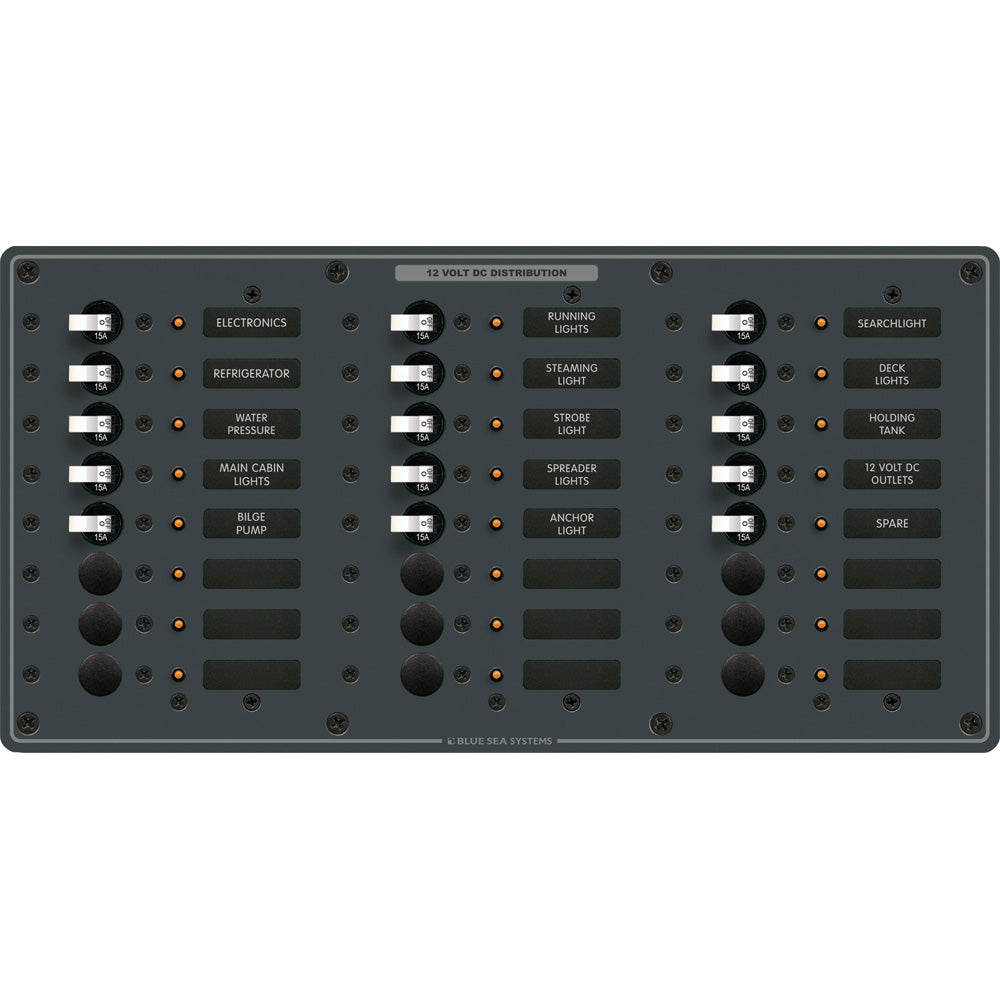

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

8264 Traditional Metal DC Panel - 24 Positions

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 24

• Nominal Voltage: 12 VDC/24 VDC

• Maximum Amperage: 100A per bus

• Height: 7.50" (190.5 mm)

• Width: 14.75" (374.65 mm)

• Weight: 7.45lb. (3.38 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"DC Distribution Panel, MFG# 8364, fifteen 15 Amp breakers w\/ white toggle switch and 9 open positions. 12 or 24 VDC, with Negative bus and LED indicators. 14.75W x 7.5H. 100 Amp Max per bus."
SKU: NVN-20770
MPN: 8264-BSS
UPC: 632085082642
