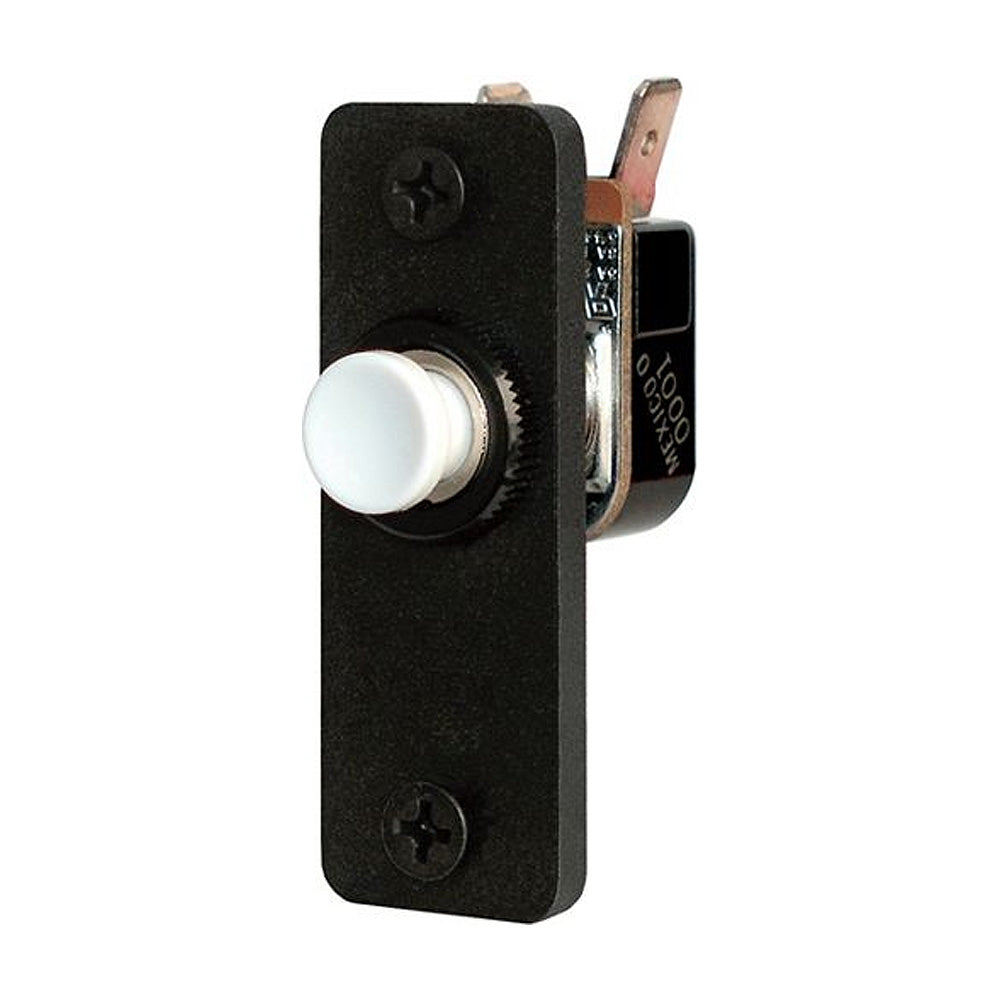

Blue Sea 8200 Push Button Panel Switch

Panel Switch

PN:	8200
Type:	Push Button
Pole / Throw:	SPST
Action ( ) = momentary:	OFF - (ON)

Features:

• Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection

• All panel switches mount in Blue Sea Systems toggle type circuit breaker panels

• Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole

• Nickel-plated brass and phenolic non-corrosive construction

Specifications
Rating 250V AC	3 Amperes
Rating 125V AC	6 Amperes
Rating 32V DC	6 Amperes
Terminal Size	0.25" (6.35mm)
Terminal Type	Quick Connect Tab
Actuator Color	White

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

It is very suitable for generator starters, bilge pumps, horns, wipers, engine controllers and any other applications that require switch operation (except ON-OFF or other poles).
SKU: NVN-20724
MPN: 8200-BSS
UPC: 632085082000
