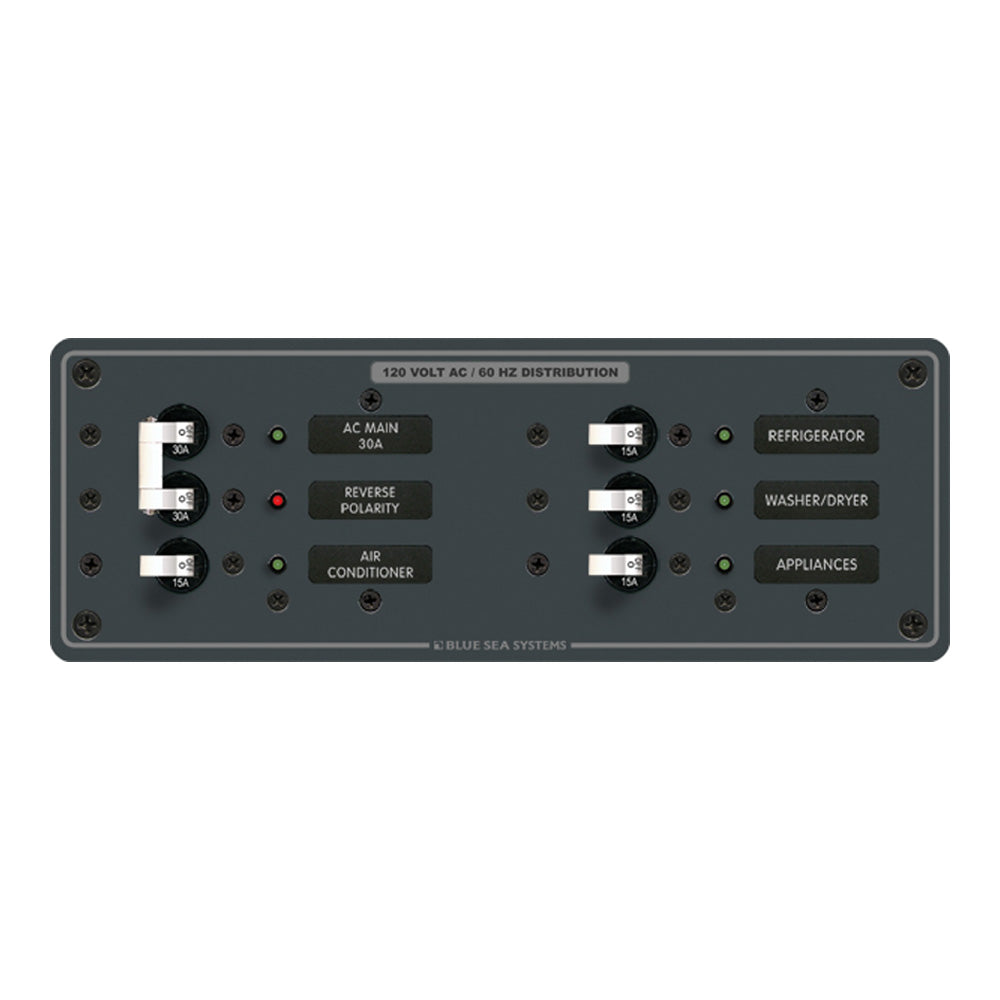

Blue Sea 8099 AC Main +4 Positions Toggle Circuit Breaker Panel (White Switches)

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 8099BSS Attributes

• Recommended Use: AC Main Circuit Breaker Panel
• Voltage Rating: 120 Volt AC
• Power Rating: 100 Amp
• Receptacle Type: No Receptacle
• Number Of Connections: 4
• GFCI/ Overload Protection: No
• Length (IN): 10-1/2 Inch
• Width (IN): 2-1/2 Inch
• Height (IN): 3-3/4 Inch
• Color: Black
• Material: Aluminum
• UL Listed: No
• With Flip Cover: No

Blue Sea 8099BSS Features & Benefits

• Red Reverse Polarity Indicating LED
• All Hot, Neutral And Safety Ground Buses Installed, Fully Pre-Wired
• All Circuit Label Positions Are Backlit On Standard Panels
• ON Indicating LEDs Installed In All Circuit Positions
• No Supplier Warranty

Blue Sea 8099BSS Installation Instructions

• 9651.pdf

Blue Sea 8099BSS Technical Bulletins

• 9808.pdf

AC Main +4 Positions

PN:   8099
White Switches

Features

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• Label backlighting pre-installed

• All LEDs installed

• Maximum panel Amperage - 50 Amperes

• (1) 30A Double Pole Circuit Breaker

• (4) 15A Single Pole Circuit Breaker

• 120 Volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems A series 120V AC main, main + 4 bits. The traditional free-standing metal AC main panel with branch circuit Blue Sea Systems panel reflects the quality and...
SKU: NVN-20700
MPN: 8099
UPC: 632085080990
