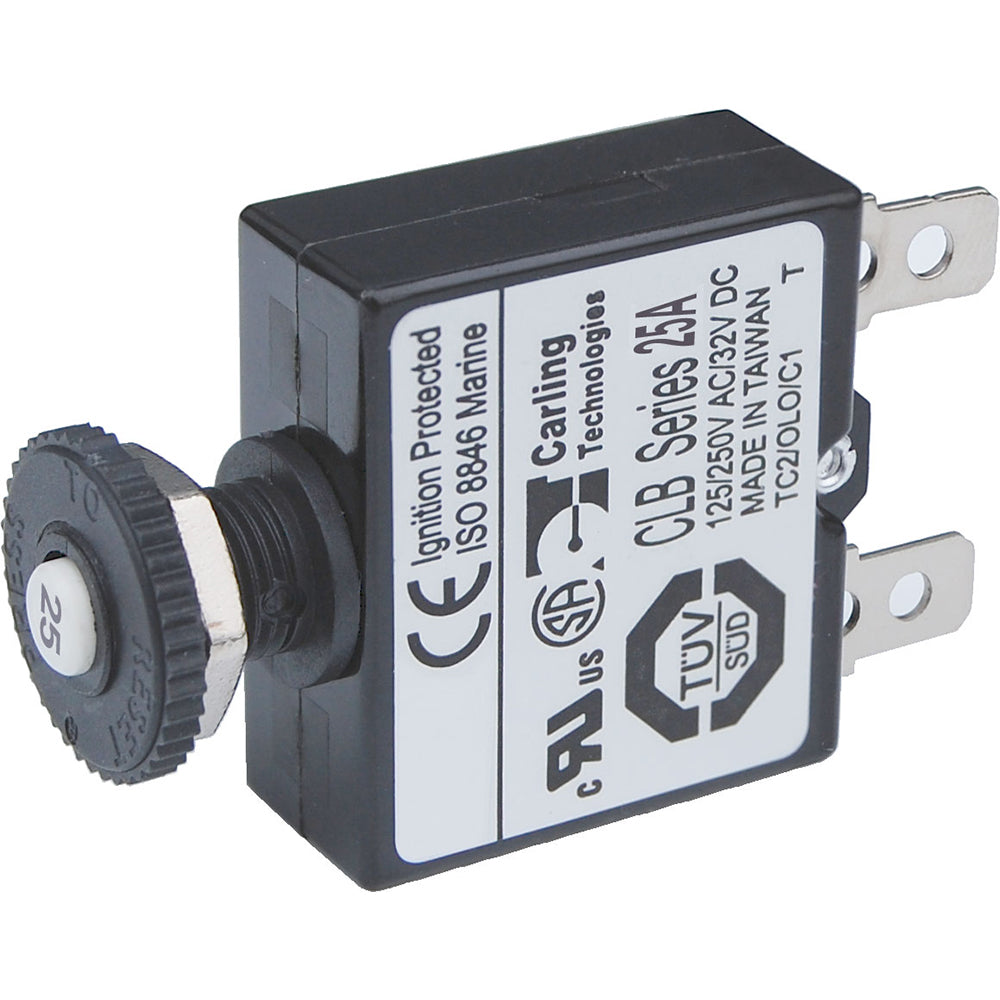

Blue Sea 7058 25A Push Button Thermal with Quick Connect Terminals

Branch circuit breakers can also be used for 24-hour circuit protection. Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.

Blue Sea 7058BSS Attributes

• Ampere Rating: 25 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Blade
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7058BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• Trip Free Design Cannot Be Held "ON" During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• No Supplier Warranty

7058
Push Button Thermal with Quick Connect Terminals

25A

• Ideal for 24-hour circuit protection

• Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels

• Push to reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasonline powered boats

• With male quick connect terminals


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

When a switch is provided separately, it can provide economical circuit protection. Compact design-waterproof, optional dust cover. Free travel-cannot be closed after travel. Maximum. ...
SKU: NVN-20542
MPN: 7058-BSS
UPC: 632085070588
