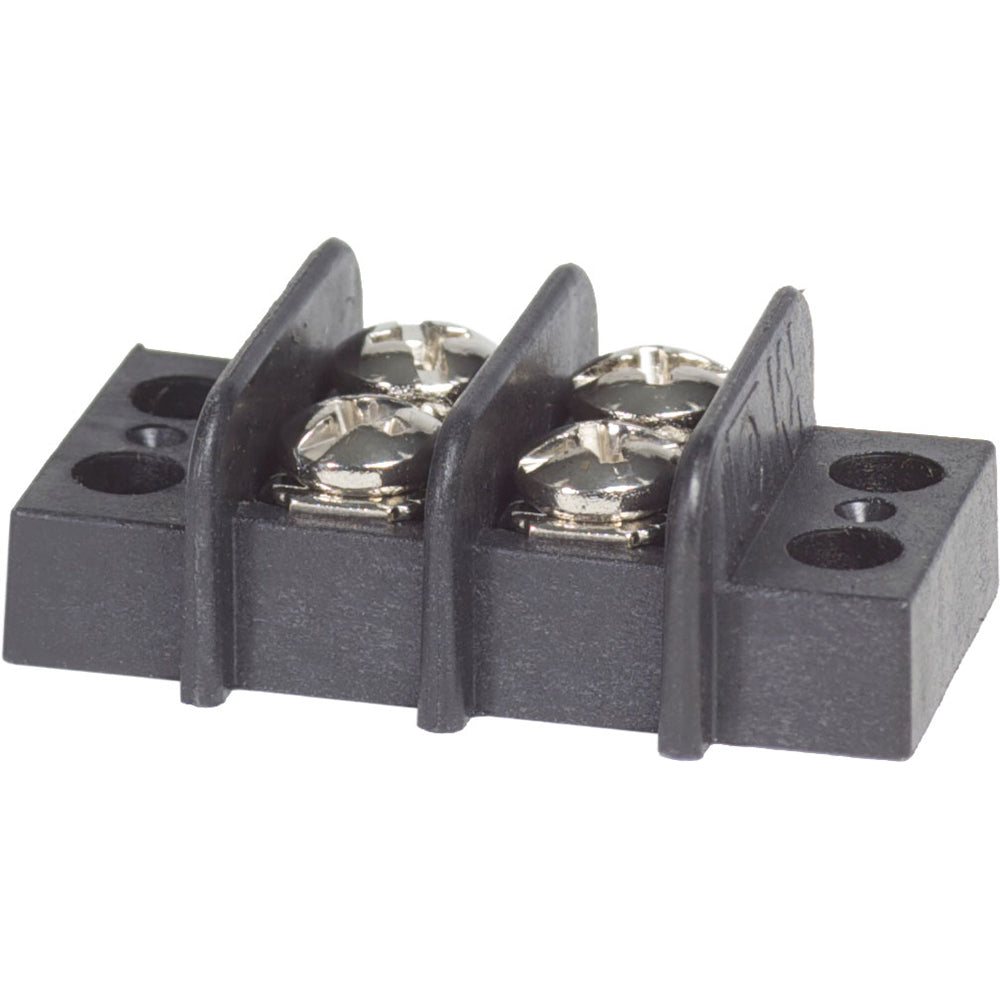

Blue Sea 2402 Terminal Black 20AMP - 2 Circuit

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 2402BSS Attributes

• Number Of Pole: 4 Pole Double Row
• Connection Material: Brass
• Voltage Rating: 300 Volt AC/DC
• Ampere Rating: 20 Amp
• Termination Type: Screw-On
• Color: Black
• Material: Nylon

Blue Sea 2402BSS Features & Benefits

• Closed Back Design Completely Insulates Power From The Mounting Surface
• Each Screw Pair Is One Isolated Circuit
• Jumpers Allow Creation Of Common Circuits
• Fully Insulated Independent Terminal Blocks To Isolate Circuits
• No Supplier Warranty

Blue Sea 2402BSS Technical Bulletins

• 2402-2410.pdf
• 2402-2410.pdf

2402 Terminal Black 20AMP - 2 Circuit

Features:

• Closed back design completely insulates power from the mounting surface
• Each screw pair is 1 isolated circuit
• Jumpers allow creation of common circuits

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

These are very small terminal blocks, usually used for electronic interfaces such as NMEA and other data connections. Their compact size allows a large number of connections in a small space. They use connectors with #6 holes to match the screw size. Although they are rated for 20 amps and even for AC rated voltages of 300 volts, they are still too small and clumsy for most general-purpose applications. #6 screw requires #6 ring terminal detailed specifications, drawings and instructions.
SKU: NVN-14582
MPN: 2402-BSS
UPC: 632085024024
