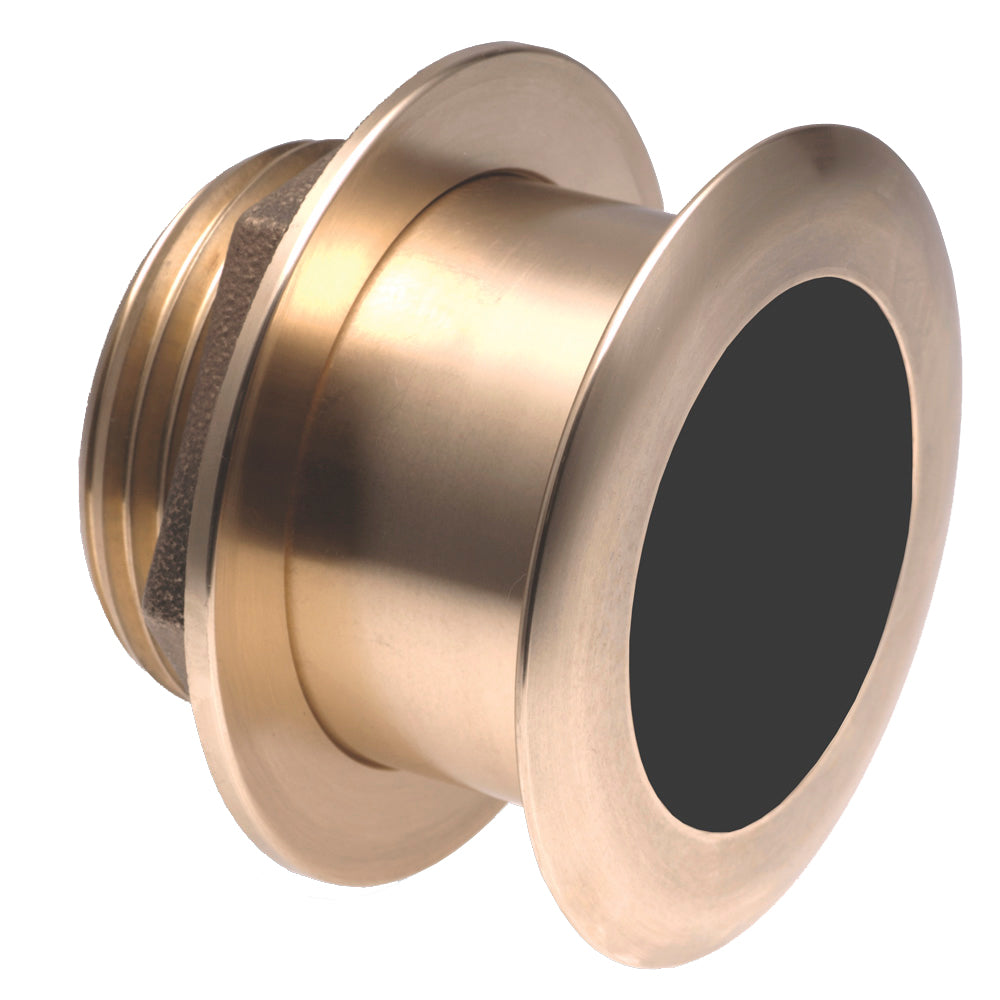

Navico B164 12 Degree Tilted Element Transducer w/Blue Connector
Navico B164 12 Degree Tilted Element Transducer w/Blue Connector — Product description
1 kW
Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.
Available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Unlock Superior Fishfinding Performance on the Water
Imagine powering through choppy waters at high speeds, your boat trailering effortlessly without worrying about hull damage, all while your fishfinder paints crystal-clear images of the depths below. The B164 12-degree tilted element transducer delivers exactly that. Designed for serious anglers chasing trophy fish in competitive tournaments, this powerhouse unit combines rugged construction with cutting-edge beam technology to keep your focus on the strike, not the setup.
Unlike traditional transducers that demand bulky fairings or compromise on power, this flush-mount option hugs your hull with minimal protrusion—just a quarter-inch. That means seamless integration for boats with moderate deadrise angles, ensuring maximum target separation and sensitivity right where you need it most: straight down.
Standout Features for Demanding Conditions
- High-Power Output: 1kW RMS power handles deep water and fast boat speeds with ease, revealing structure and fish even in murky conditions.
- Dual-Frequency Operation: 50/200 kHz frequencies offer versatility—wide coverage for searching shallows or narrow beams for pinpointing depths up to thousands of feet.
- Integrated Depth and Temperature Sensor: Real-time data helps you track water column changes and locate thermoclines where baitfish school.
- Tilted Ceramic Element: Precision 12-degree tilt optimizes the beam for 8-15 degree hull deadrises, eliminating the need for adjustments or fairings.
- Bronze Flush Housing: Corrosion-resistant and low-profile, perfect for trailered boats that bounce over rollers and bunks.
- Blue 7-Pin Connector: Plug-and-play reliability with your preferred chartplotters.
Why Anglers Swear by This Transducer
In real-world scenarios, tournament pros report sharper fish arches and cleaner bottom reads compared to lower-power units. The tilted element focuses acoustic energy vertically, cutting through noise from prop wash or boat speed. Whether you're jigging over reefs or trolling offshore ledges, expect fewer false readings and more hookups.
For trailering enthusiasts, the minimal hull extension means no gelcoat dings or housing cracks after long hauls. Pair it with high-end electronics, and you'll see enhanced target resolution that turns good days into limits.
Effortless Installation for Quick Setup
Mounting this transducer is straightforward for DIYers or pros. Select a flat hull section aft of any keel, ensuring the beam path stays clear of thru-hulls and strakes. Fairing isn't required thanks to the built-in tilt—simply bed it in marine sealant, torque to spec, and route the cable cleanly.
- Mark and cut a precise hole matching the housing footprint.
- Dry-fit and adjust for hull angle alignment.
- Apply sealant, secure with included hardware.
- Connect the blue plug and test-fire your sounder.
Pro tip: Sand the hull lightly for better adhesion, and always test in shallow water before heading deep.
Seamless Integration with Top Electronics
Engineered for peak performance with multifunction displays from leading brands, this transducer slots right into your existing setup. It excels with units featuring advanced DSP processing, amplifying its 1kW potential for hyper-detailed sonar returns.
Supports a range of vessels from center consoles to sportfishers, making it a go-to upgrade for anyone serious about sonar accuracy.
Long-Lasting Reliability with Simple Care
To keep performance dialed in season after season, inspect the face for marine growth after every trip— a soft brush and mild cleaner do the trick. Winterize by flushing freshwater through your system. Bronze construction laughs off saltwater abuse, but avoiding impacts ensures years of service.
Frequently Asked Questions
What hull deadrise angles is the B164 12-degree tilted element best suited for?
It's optimized for hulls with 8 to 15 degrees of deadrise, providing a perfectly vertical beam without additional fairing.
Can this transducer handle trailering on bunks and rollers?
Yes, its low-profile bronze housing protrudes less than 0.25 inches, making it trailer-tough and resistant to damage.
What frequencies does it operate on?
Dual-frequency at 50/200 kHz, ideal for both wide-area scanning and deep-water precision.
Does it include temperature sensing?
Absolutely, it features an integrated temperature sensor for monitoring water conditions in real time.
Is a fairing required for installation?
No, the innovative tilted element design eliminates the need for a fairing while maintaining high performance.
What connector type does it use?
It comes with a reliable 7-pin blue connector for easy hookup to compatible displays.
How much power does it output?
1kW RMS power for superior target detection at speed and in deeper waters.
Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted
Element technology to a higher power. The new 1kW, flush-mount, tilted
element transducers are perfect for fast, trailered tournament sport fishing
vessels who cannot have a high-performance fairing. The flush mounted,
bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can
sit on trailer rollers and bunks with no damage at all. The ceramic arrays
are tilted inside the housing giving you the perfect vertical beam with
maximum energy on what is directly below your boat. Take your fishfinder to
the next power with 1kW tilted element transducers.
12 degree tilted version for 8 to 15 degree hull deadrise
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
The B164 bronze penetrating transducer is the first choice for fishermen looking for better depth readings and more accurate fish detection. Embedded installation design will not cause...
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on boat's running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID technology
SKU: NVN-35265
MPN: B164-12-BL
UPC:
Technical specifications
| Brand | Navico |
| Model | Navico B164 12 Degree Tilted Element Transducer w/Blue Connector |
| SKU / MFR# | 35265 |
