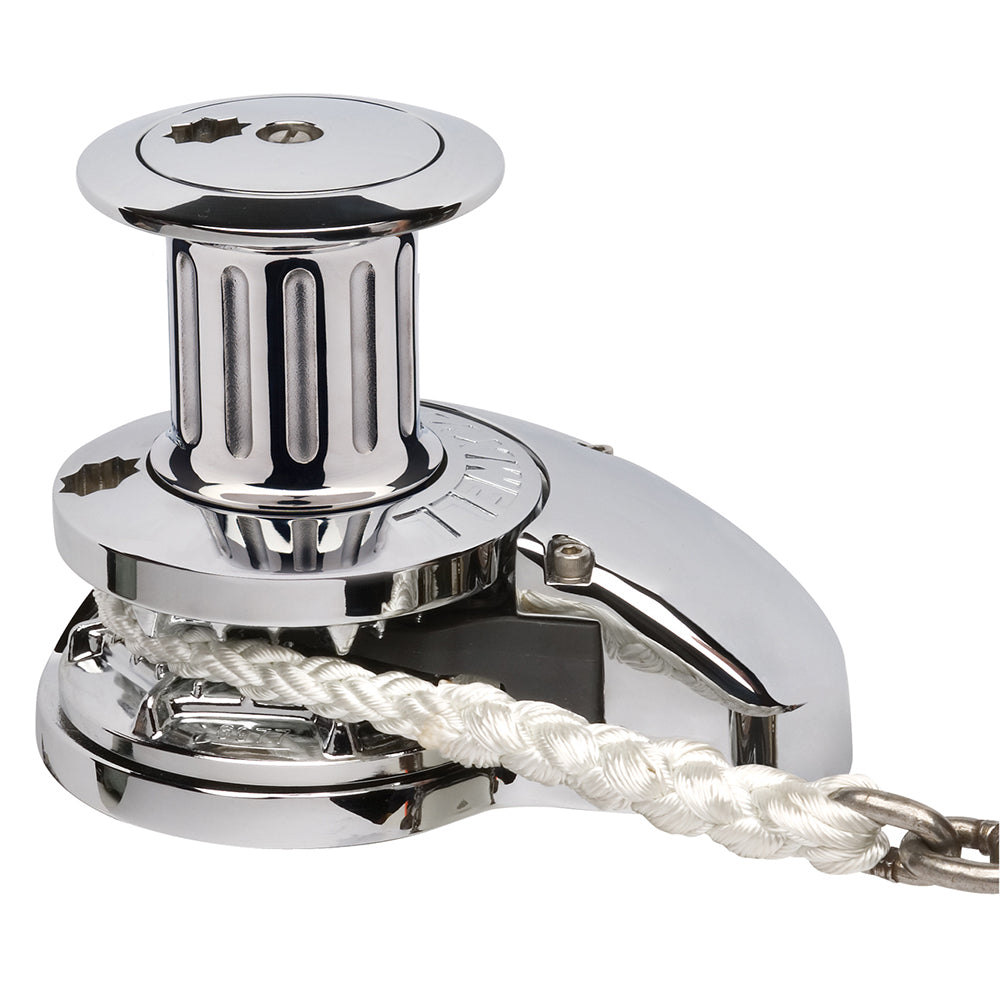

Maxwell RC10/10 24V Capstan Windlass f/3/8" Chain & 5/8" Rope

RC10/10 24V Capstan Windlass for 3/8" Chain & 5/8" Rope

The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16_) and 10mm (3/8") short link chain and 14mm and 16mm (5/8") three strand or 8-brait (plait) rope.

Features:

• A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available

• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass

• Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations

• Full disassembly capability of the topworks utilising only the handle provided and an Allen key

• The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability

• The heavy duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance

• In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice

• The RC10 works just as effectively with all chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck

• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Cone type clutch/brake mechanism permits manual, Free Fall anchoring

• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel

RC10-10 winch windlass 12V-3/8" chain and 5/8" rope are made of stainless steel and chrome-plated bronze, RC10 automatic windlass series is designed to easily recycle 8mm (5/16") and 10mm (3) / 8)) ") short chain and 14 mm and 16 mm (5/8 inch) three-strand or 8 braided (knotted) ropes. Available in a smooth low-profile version and a grooved stainless steel winch drum version. Simple two-row parts installation saves time. The unique isolation tube design allows installation on decks of almost any thickness, and multiple installation positions and automatic speed-regulating gearboxes ensure that the gearbox and motor can be installed in almost all installation situations. Best location. The hex wrench RC10 is made of marine grade 316 stainless steel and chrome bronze, which has long-lasting durability. The unique rope/chain gypsy is designed to effectively grasp the joint between the rope and the chain, so that the RC10 has unparalleled performance . Carrying a heavy y-shaped steel wire with a large-diameter pre-tensioned spring, the pressure arm pivots on a trouble-free bearing to exert maximum control pressure on the rod and joint. The RC10 is as effective as all chain rods and is suitable for those who wish to sit on the front deck to use a low-key, elegant windlass. The huge Hough tube running through the deck ensures easy entry and exit of the rope/chain into and out of the anchored locker. The conical clutch/brake mechanism allows manual and free fall to be fixed. The sealed oil bath and marine grade hard anodized alloy gearbox provide maximum output through precision worm and worm gear. Features: The huge Hough pipes running through the deck can ensure easy entry and exit of the rope/chain riding anchor storage cabinet. The conical clutch/brake mechanism allows manual and free fall anchoring. The sealed oil bath and marine grade hard anodized alloy gearbox provide maximum output through precision worm and worm gear.
SKU: NVN-63410
MPN: RC1010CAP24V
UPC: 941476105881
