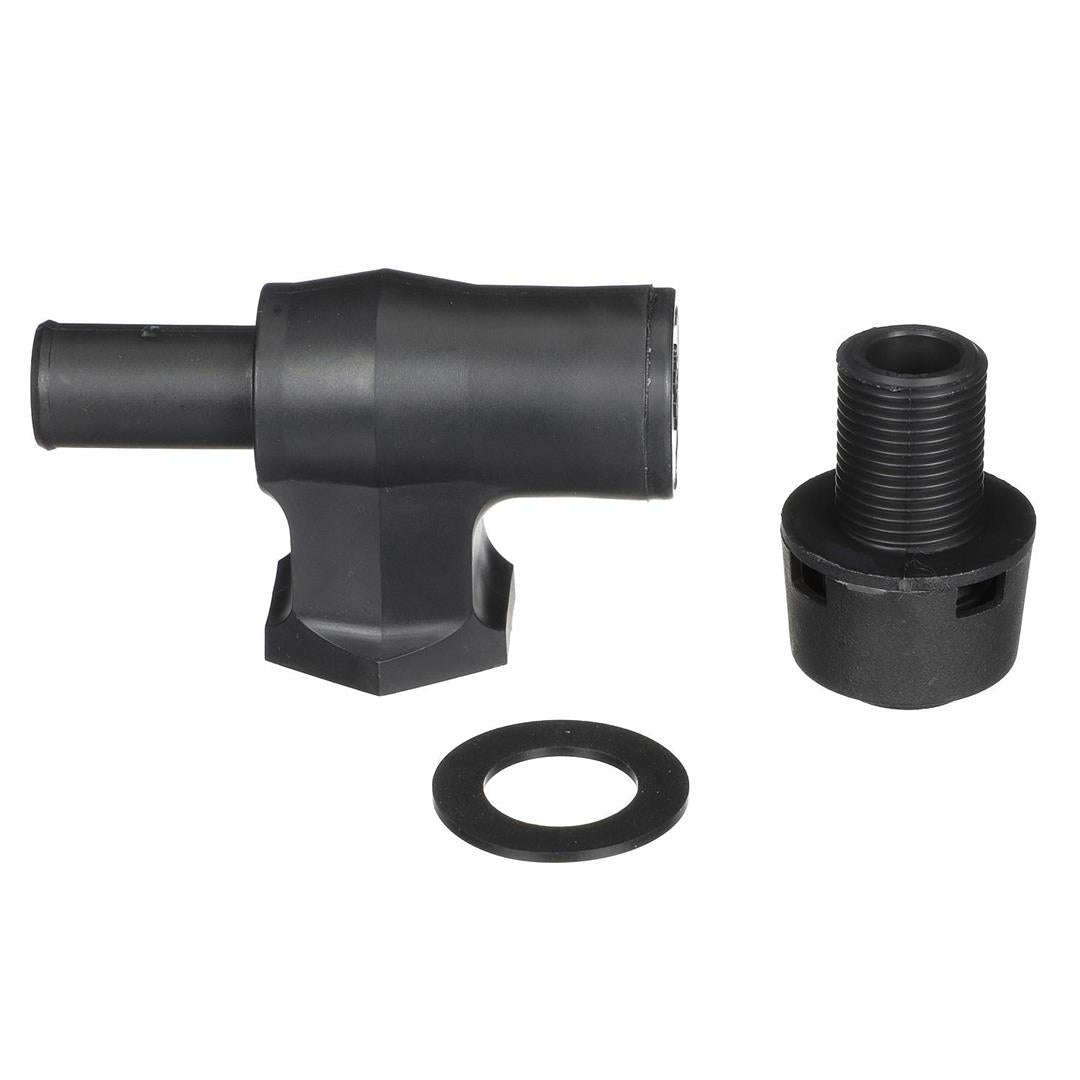

Attwood 90° P-Trap Fuel Tank Vent - Black w/Black Vent Head
Attwood 90° P-Trap Fuel Tank Vent - Black w/Black Vent Head — Product description
The 1670/1671/1674 P-traps have been tested and certified by a third party lab to meet the ABYC weathertight and watertight requirements and ensure no liquid water will reach a fuel vent line, carbon canister or fuel tank. The 1670/1671/1674 P-traps allow air to vent freely during normal sea conditions and washdowns and meet the ISO 10088 requirement for minimum venting area. For 5/8 Inch I.D. hose. Meets ABYC Standard. Cover can be removed for vent inspection, debris removal and fuel system pressure testing. Certified by third party laboratory to meet ABYC H-24 watertight and weathertight specification.
Attwood Marine 16703 Attributes
- Compatibility: 5/8 Inch Inside Diameter Hose
- Style: P-Trap Vent
- Hull Thickness: 9/16 Inch
- Color: Black
- Material: Plastic
- Mounting Type: Surface Mount
Attwood Marine 16703 Features & Benefits
- For 5/8 Inch Inside Diameter Hose
- P-Traps allow Air To Vent Freely During Normal Sea Conditions And Washdowns And Meet The ISO 10088 Requirement For Minimum Venting Area
- Cover Can Be Removed For Vent Inspection, Debris Removal And Fuel System Pressure Testing
- Certified By Third Party Laboratory To Meet ABYC H-24 Watertight And Weathertight Specification
- Limited 2 Year Warranty
Attwood Marine 16703 Installation Instructions
Attwood Marine 16703 Warranties
Attwood Marine 16703 Technical Bulletins
90° P-Trap Fuel Tank Vent - Black with Black Vent Head
This Attwood 90-Degree P-Trap Fuel Tank Vent reliably helps prevent water from entering the fuel tank while still allowing air to vent freely during normal sea conditions and washdowns. This vent’s effectiveness eliminates the need for an anti-siphon loop in the vent hose. It requires a ¾-inch installation hole and can be used with a maximum hull thickness of 9/16 inches.
Features:
- Standard Mount - (inch) 5/8" I.D Hose
- Reliably helps prevent water from entering the fuel tank
- Still allows air to vent freely during normal sea conditions and washdowns
- This black vent with a black vent head meets ABYC standards
*Compatible with Ethanol blended fuels.
SKU: NVN-98339
MPN: 1670-3
