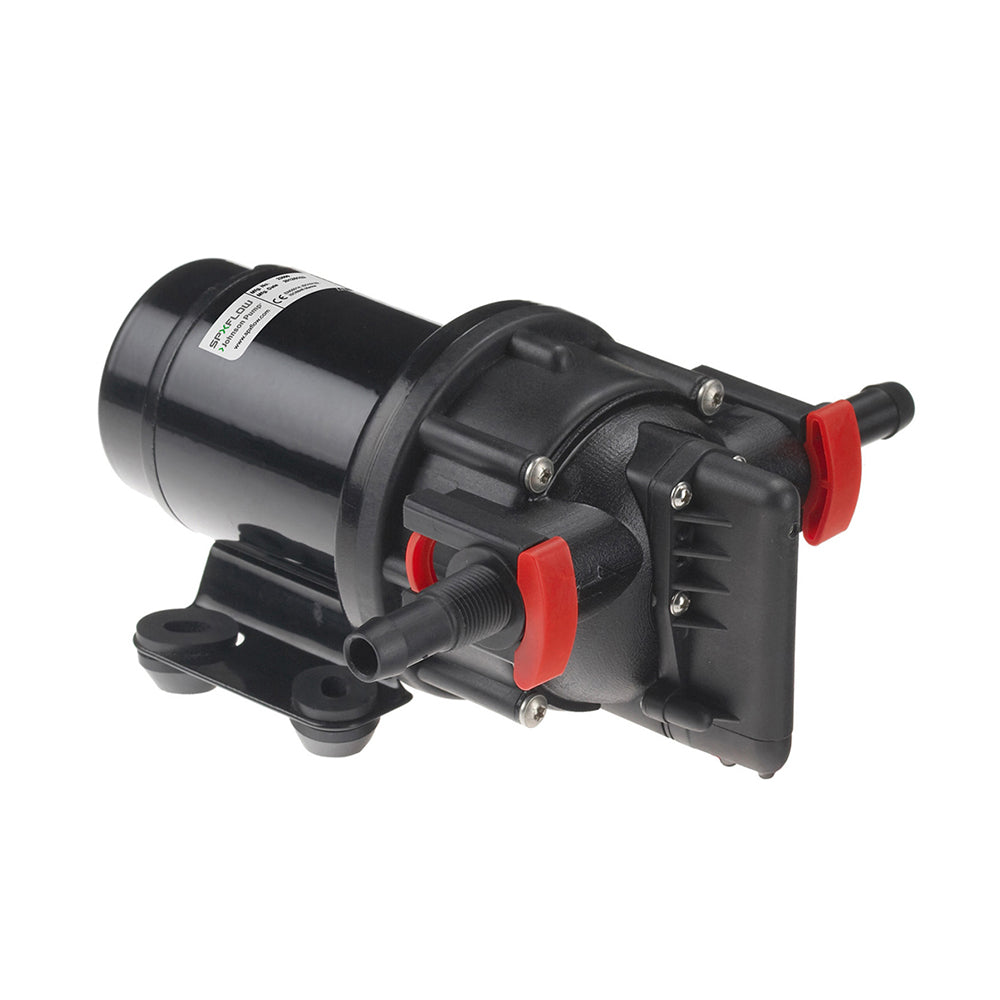

Johnson Pump Aqua Jet WPS 2.9 GPM - 12V NPT - 2.8 Bar

Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics, even at low speeds. Integrated pressure switch turns pump on and off automatically when tap is opened and closed.

Johnson Pumps 1013405103 Attributes

• Pump Operation: 12 Volt DC
• Flow Rate: 2.9 Gallon Per Minute
• Type: Self-Priming
• Pressure Rating (PSI): 41 Pound Per Square Inch
• Inlet Port Type: 3/8 Inch NPT/ 1/2 Inch Hose
• Outlet Port Type: 1/2 Inch NPT/ 3/4 Inch Hose
• Length (IN): 8.02 Inch
• Width (IN): 7.76 Inch
• Height (IN): 4.33 Inch
• Material: Polypropylene/ Polyphthalamide
• With Thermal Overload Protection: Yes
• With Pressure Switch: Yes

Johnson Pumps 1013405103 Features & Benefits

• Whisper Quiet Operation
• Five-Chamber Construction
• Self-Priming
• Easy, Low Cost Maintenance
• Long Service Life
• Pressure Switch Standard
• Operates In Fresh Or Sea Water
• Limited 3 Year Warranty

Aqua Jet WPS 2.9 GPM - 12V NPT - 2.8 Bar

Quiet and pulsation free even at low speeds, the Aqua Jet five chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sounds levels in relation to water flow are placed at a premium - such as in shower and galley applications. Operates in fresh or sea water. Self priming. It is recommended to install pump with an accumulator tank. Always use a PUM Protector inlet strainer before the pump intake. 85 watt motor with PP/PPA body, EPDM valves and santoprene diaphragm. 8.02" L x 7.76" W x 4.33" H. Weight: 3.5 lbs. Capacity: 2.4 GPM/Pressure Cut-Off: 41 psi/Fuse Size: 10 Amp/Connection: 3/8" NPT/hose/1/2", 1/2" NPT/hose 3/4".

Features:

• 5-chamber Aqua Jet WPS pumps provide a reliable "heart" for small boat and RV water pressure systems
• Lower noise and water pulsation
• 2.9 GPM Capacity

"Quiet and pulsation free even at low speeds, the aqua jet five chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Efficient and compact, aqua jet pumps are particularly suitable where low amperage and sounds levels in relation to water flow are placed at a premium - such as in shower and galley applications. Operates in fresh or sea water. Featuresaqua jet water pressure pumpspecificationsdimension: 5.5 H x 7 w x 11 l in. Weight: 5. 31 Lbs."
SKU: NVN-81435
MPN: 10-13405-103
UPC: 7330717010447
