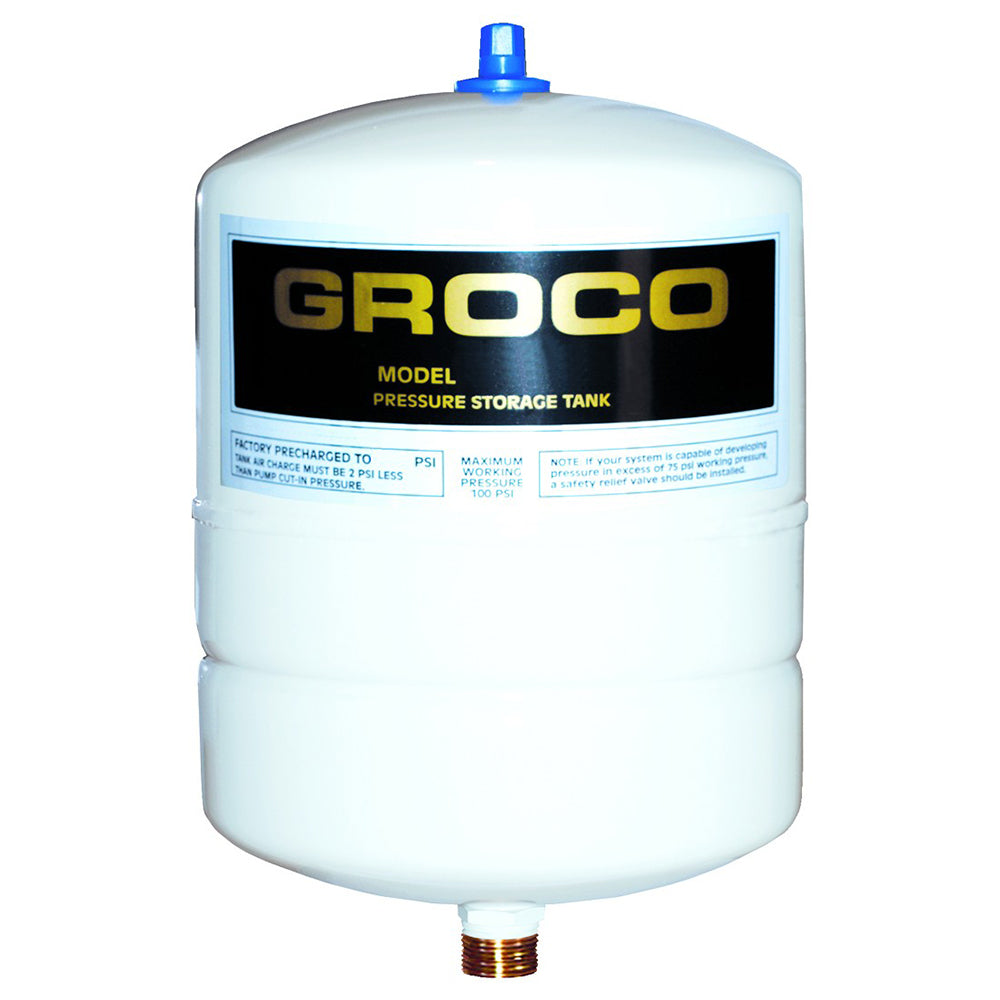

GROCO Pressure Storage Tank - 0.5 Gallon Drawdown

Pressure Storage Tank - 0.5 Gallon Drawdown

A pneumatic pressure charge, matched to the pump cut on pressure prevents water logging by separating the air charge from system water pressure with a rubber bladder. The result is smooth pressure delivery, even temperature mix in showers, and reduced pump cycling. Tanks may be mounted in any position, and anywhere in the cold water plumbing after the pump. PST tanks may be used for fresh or salt water. Mount hardware is included. PST-6 has a pump stand for mounting PJR, WSC-60 or WSC-80 pump.

Specifications:

• Diameter: 8"
• Mounting: Stand
• 30/50 Drawdown: 0.5 gallon
• Thread NPT: 3/4"

The inflation pressure is matched with the cut-off pressure of the pump, and the inflation pressure is separated from the system water pressure by a rubber bladder, thereby preventing water injection. installed at...
SKU: NVN-75253
MPN: PST-1
UPC: 742985005389
