Jabsco Sinlge Stack Water System - 4.8 GPM - 40PSI - 12V

Sinlge Stack Water System - 4.8 GPM - 40PSI - 12V

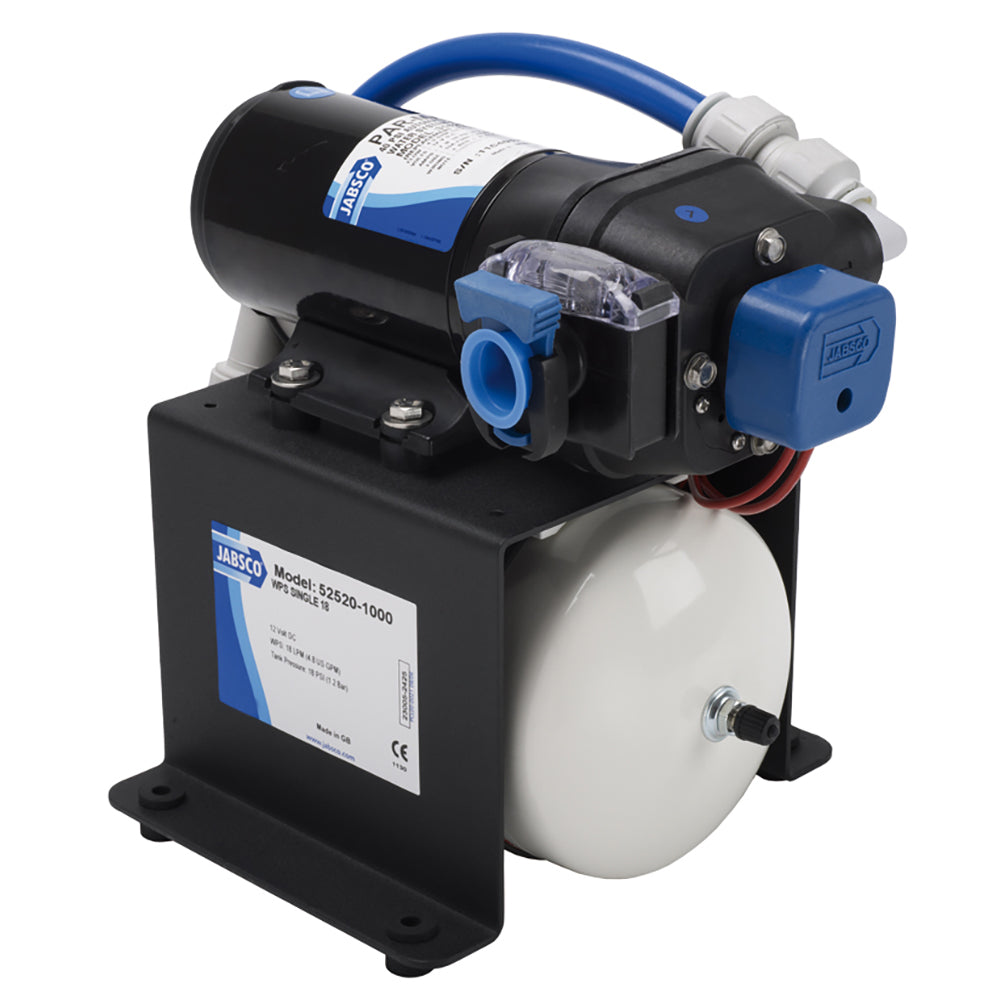

The Single Stack Water System is a fully assembled water pressure set which makes installation of water pressure systems simple. The system consists of a PAR-Max 4.0 Pump, strainer and pre-pressurized accumulator tank.
Serves four or more outlets.
Features:

• Self-priming up to 10' (3M)

• Run-dry ability

• Smooth, even flow

• Thermal overload protection

• Complies with ISO 8846 MARINE (Ignition Protection)

• Three-year warranty

Specifications:

• Flow: 4.8 GPM (18LPM)

• Shut-Off Pressure: 40PSI (2.8bar)

• Fitting: Connections for 3/4" (19mm) hose tail

• Size: 12.2" Long x 9.4" Wide x 9.8" High

• Weight: 12lbs (5.4kg)

JabscoA's fully assembled hydraulic kit is easy to install. The system consists of PAR-Max 4.0 pumps, filters and pre-pressurized storage tanks. Serve 4 or more outlets.
SKU: NVN-61346
MPN: 52520-1000
UPC: 671880615914
