Attwood Automatic Float Switch w/Cover - 12V & 24V

Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and “Persistent Toxic Substance” in over 26 states.

Attwood Marine 42017 Attributes

• Compatibility: Attwood Marine Bilge Pump System
• Voltage Rating: 12 Volt DC/ 24 Volt DC
• With Wiring Harness: Yes
• With Fuse Holder: No

Attwood Marine 42017 Features & Benefits

• Converts Bilge Pumps To Fully Automatic Operation
• Features A Compact, Low Profile Design That Mounts On Any Surface From A Horizontal
• Incorporates A Reliable And Affordable Mechanical Switch That Actuates Pump Motor
• Wire Leads Do Not Flex Or Hinge With The Float As On Some Competitive Models
• Limited 3 Year Warranty

Attwood Marine 42017 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 42017 Technical Bulletins

• 4201_BUL.pdf

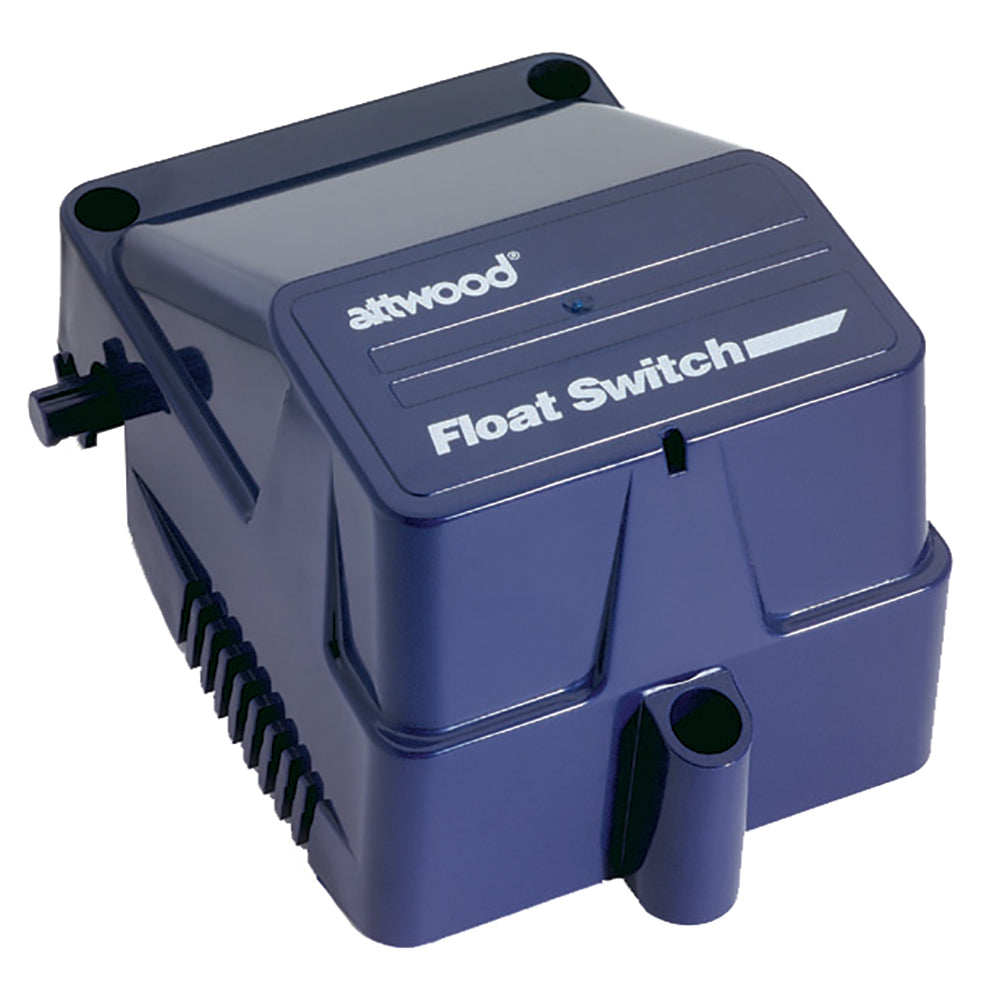

Float Switch w/Cover
Part #: 4201-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24" angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

Float switch installs independently or directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

• 36" Wire

• 12V and 24V

• CE Rated

• Includes Cover

This Attwood float switch with cover converts the bilge pump to fully automatic operation. With a compact, low-profile design, it can be installed on any surface from the horizontal.
SKU: NVN-43915
MPN: 4201-7
UPC: 022697420176
