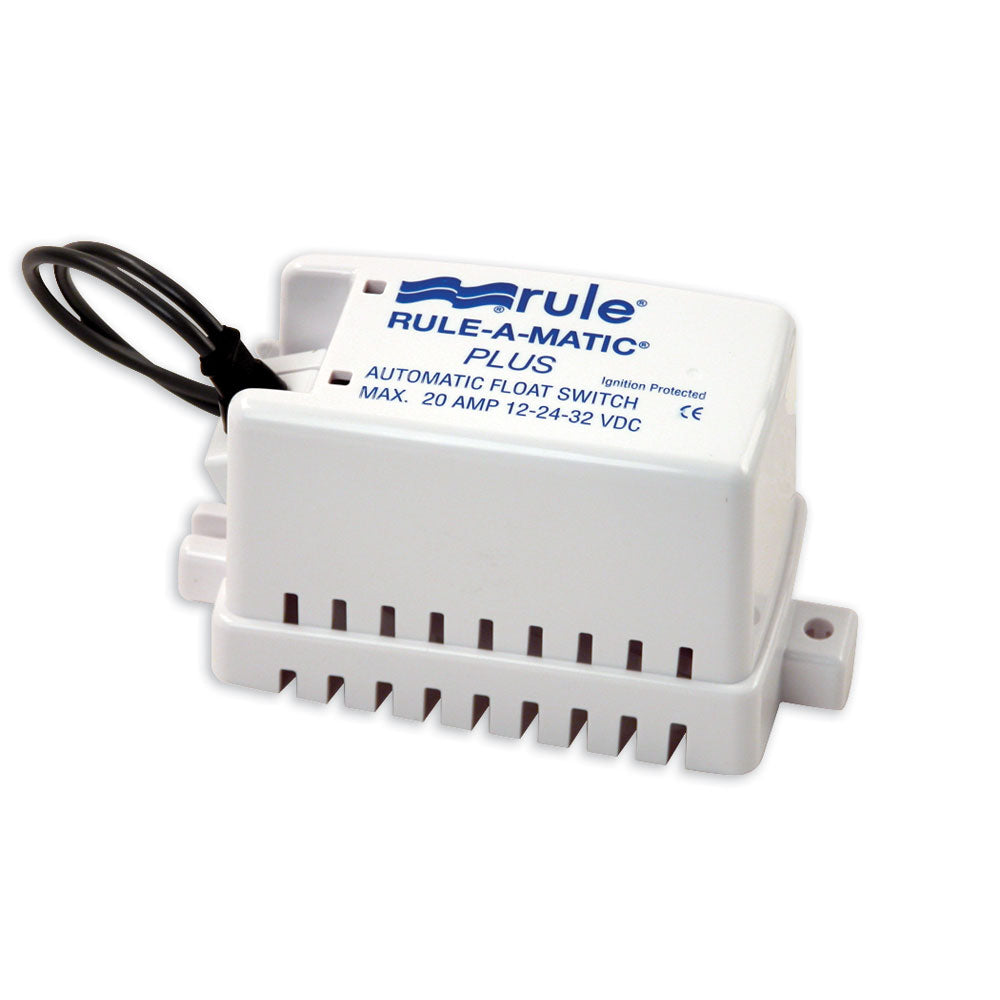

Rule-A-Matic® Plus™ Float Switch

Sleek and rugged, the Rule-A-Matic Plus float switch has a strong, fully integrated, impact resistant cover that protects against debris and jamming. It features 14 gauge highly abrasive resistant marine grade wire and a built-in test feature. Designed for pumps drawing up to 20 Ampere. A standard bilge pump operates by a control switch that senses water and activates the pump. Rule’s Float Switches offer outstanding performance. We use extra-large float chambers for increased buoyancy and detachable mounting bases that make them easier to install and remove for cleaning and inspection. All models are suitable for pumps that draw up to 20 Ampere, except the Model 35 Rule-A-Matic, which is suitable up to 14 Ampere.

Rule 40A Attributes

• Compatibility: Rule ® Bilge Pumping System
• Voltage Rating: 12 To 32 Volt
• With Wiring Harness: Yes
• With Fuse Holder: Yes

Rule 40A Features & Benefits

• Sleek And Rugged, The Rule-A-Matic Plus Float Switch Has A Strong, Fully Integrated, Impact Resistant Cover That Protects Against Debris And Jamming
• Features 14 Gauge Highly Abrasive Resistant Marine Grade Wire And A Built-In Test Feature Designed For Pumps Drawing Up To 20 Ampere
• Rule Also Produces The ECO-Switch, Which Operates When Rising Bilge Water Levels Increase Air Pressure
• Easier To Install And Remove For Cleaning And Inspection
• Limited 3 Year Warranty

Rule-A-Matic® Plus™ Float Switch

Sleek and rugged, the Rule-A-Matic Plus float switch has a strong, fully integrated, impact resistant cover, which protects against debris and jamming. 14 gauge highly abrasive resistant marine grade wire, and a built-in test feature. Designed for pumps drawing upt to 20 Amps Model 40A and 40FA now includes a 2 year warranty.

WARNING: This product can expose you to chemicals including STYRENE which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The standard bilge pump is operated by a control switch that senses the water and activates the pump. Rule Industries Rule-A-Matic float switch with shielding and 12-24-32 VDC Plus...
SKU: NVN-31507
MPN: 40A
UPC: 042237095633
